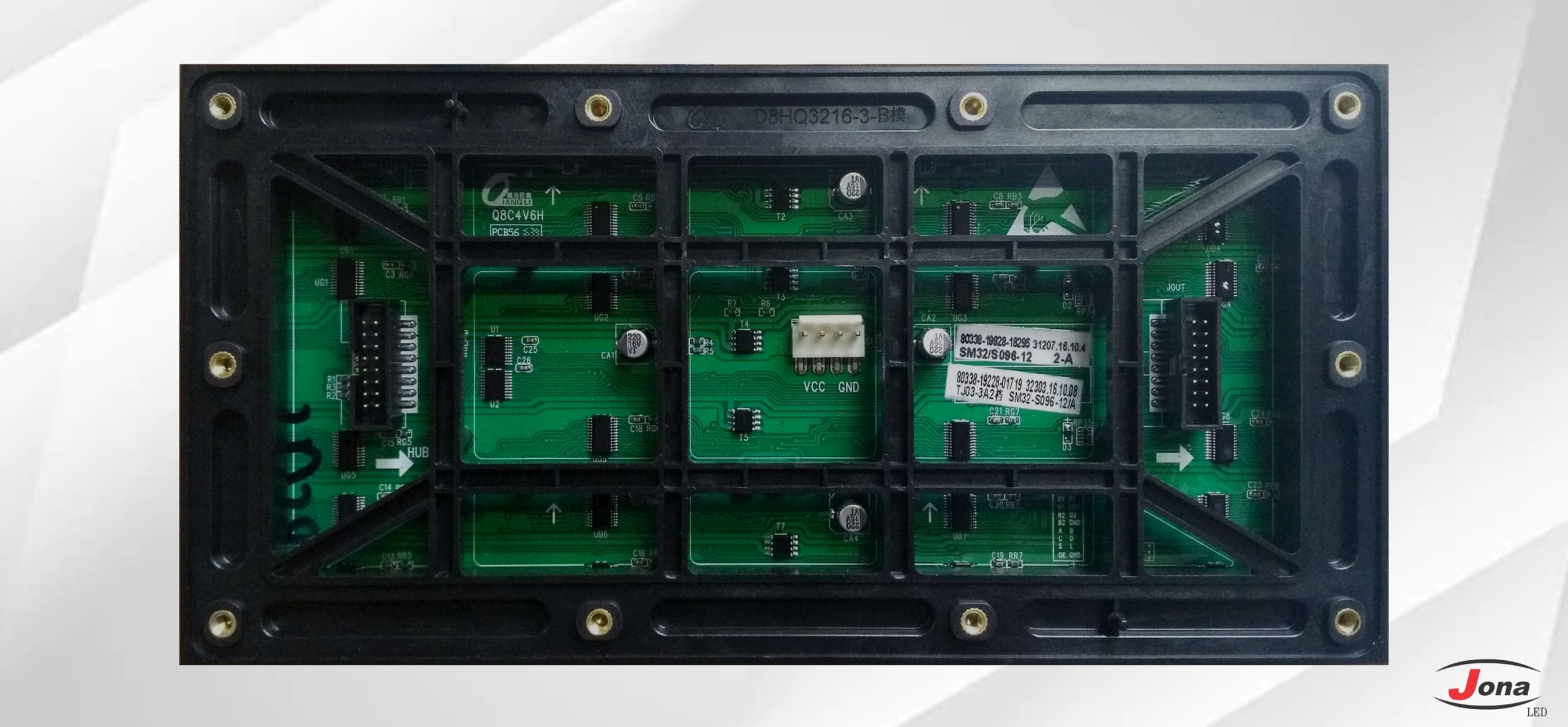

Qiangli Q8 MM Outdoor Module
A rugged outdoor LED module designed for high-impact visual displays with excellent visibility and long‑range clarity. With an 8.0 mm pixel pitch, this module delivers crisp images and strong readability from moderate to long distances – perfect for DOOH billboards, street signage, and event displays. It provides high brightness (often > 5,500 nits) and wide viewing angles; all while being sealed to IP65 standards so it can withstand harsh weather. A high refresh rate ensures smooth, flicker-free motion, and the sturdy build supports long-term outdoor reliability.
- High brightness (≥ 5,500 nits) – ensures good visibility even in bright sunlight
- 320 × 160 mm module – flexible design and installation
- IP65 protection – dust and water resistant for outdoor use
- Wide viewing angle (e.g., up to 160°) – consistent picture from different viewpoint
| Pixel Pitch | Q8 mm |
| Pixel Density | 15625 pixel/m2 |
| Lamp | SMD3535 |
| Refresh frequency | ≥3840HZ |
| Module size | 320X160mm |
| Module Resolution | 40*20 pixels |
| IP Rating | IP65/IP54 |
| Maintenance | Front/Back |
| Cabinet Resolution | 120X120 Dots |
| Cabinet Weight | 40 Kg/pc |
| Cabinet Material | Mild Steel |
| Cabinet Size | 960X960mm |
| Contrast Ratio | 5000:01:00 |
| Brightness | 6000 Nits |
| Viewing Distance | 8 Meter |
| MTBF | 10000 Hours |
| Scan Rate | 1/5 Scanning, Contrast current |
| Power consumption | Max: 800 (W/sq.) Avg: 320 (W/sq.) |
| Viewing Angle | Horizontal: 120 Vertical: 120 |
| Humidity | 10% ~ 95% RH |
| Controller System | NOVASTAR |
| Controller Software | NOVA Studio |
| Input Voltage | AC 220V/50HZ OR AC240V/60HZ |
| IC | ICN2153 |
| Operating Temperature | Min -20 C ~ Max +55 C |
| Life Span | >100000 Hrs. |
| Grayscale | 16 bits |
