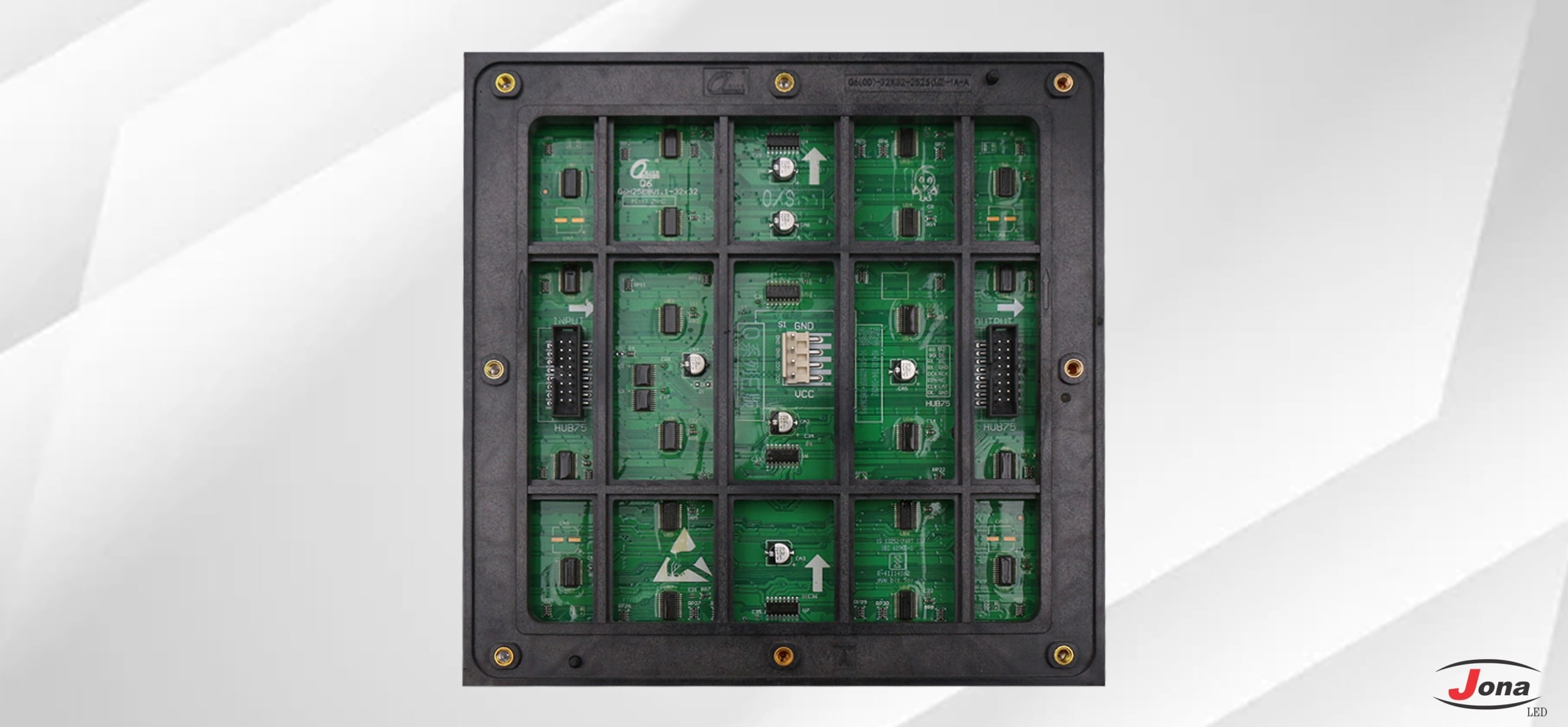

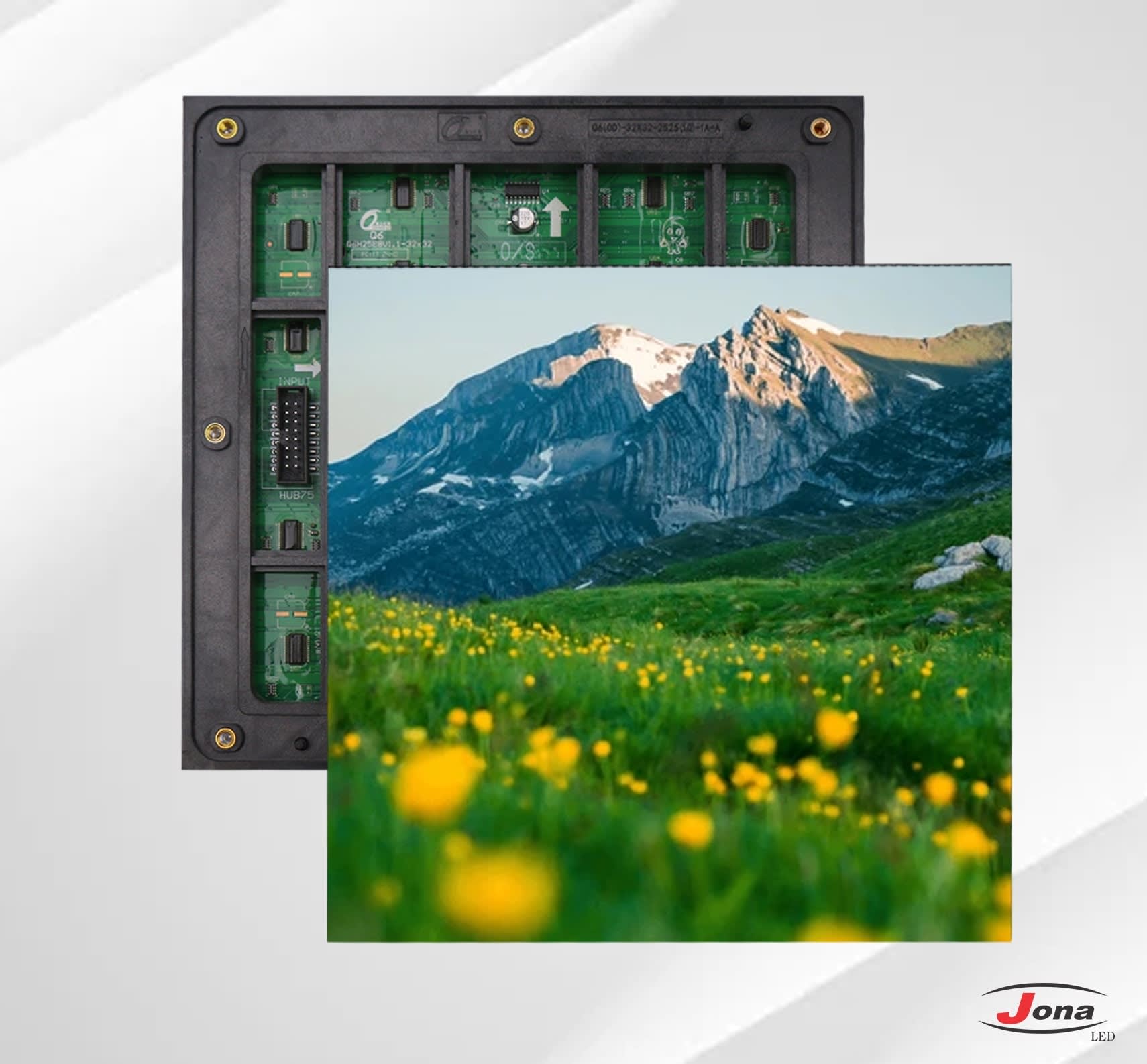

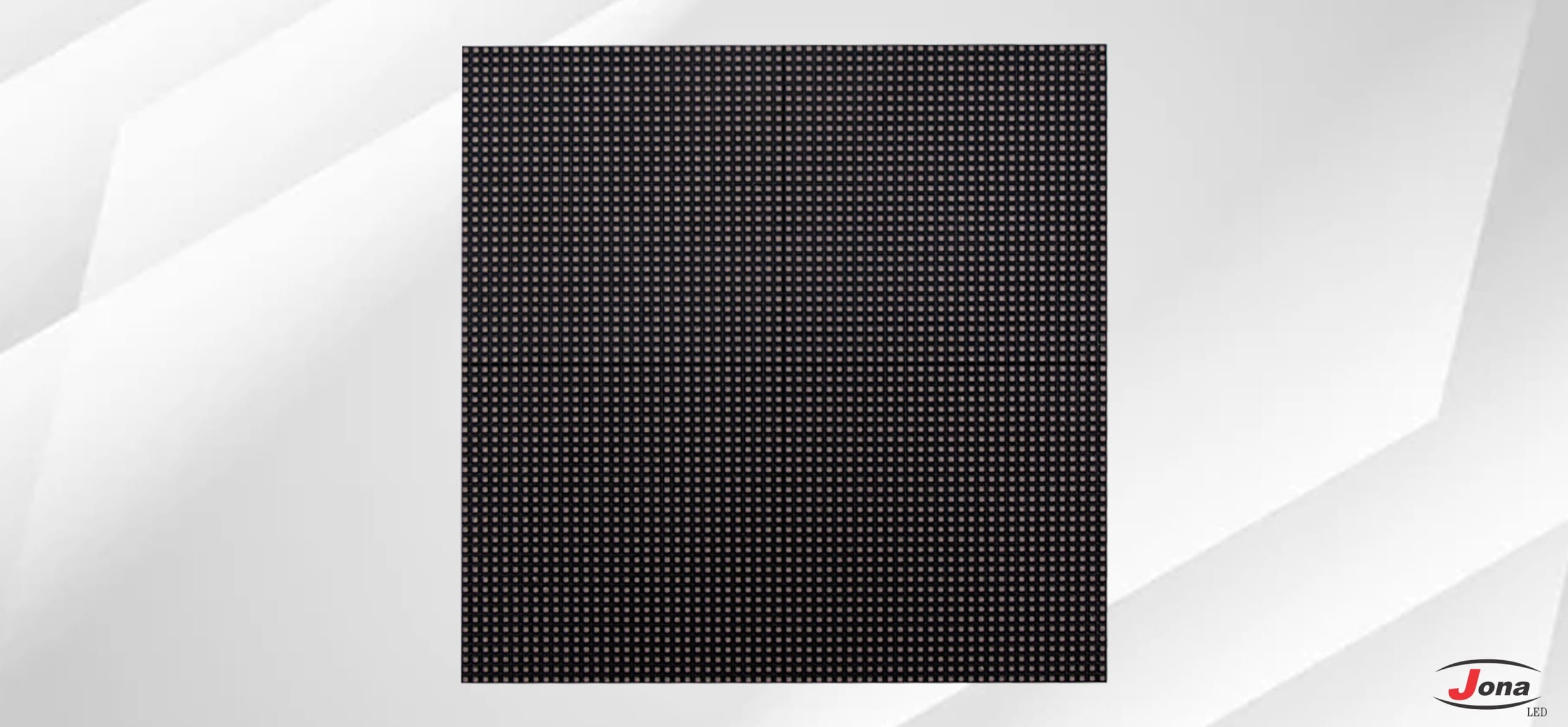

Qiangli Q6 MM Outdoor Module
A robust outdoor LED module engineered for high visibility and endurance in open-air settings.
Its 6.0 mm pixel pitch makes it especially suited for longer viewing distances, providing a cost-effective solution without compromising visual impact.
Thanks to SMD technology, you get consistent brightness, rich colors, and wide angles, all built to withstand outdoor conditions.
The compact 192 × 192 mm form factor enables flexible installation, whether building large billboards or modular outdoor display arrays.
- High refresh rate – smooth playback even for video and animations
- 192 × 192 mm module – scalable design for large outdoor screens
- Ideal for: stadiums, hoardings, street signage, public event displays
| Pixel Pitch | Q6 mm |
| Pixel Density | 27777 pixel/m2 |
| Lamp | SMD2525 |
| Refresh frequency | ≥3840HZ |
| Module size | 192X192mm |
| Module Resolution | 32*32 pixels |
| IP Rating | IP65/IP54 |
| Maintenance | Front/Back |
| Cabinet Resolution | 160X160 Dots |
| Cabinet Weight | 40 Kg/pc |
| Cabinet Material | Mild Steel |
| Cabinet Size | 960X960mm |
| Contrast Ratio | 5000:01:00 |
| Brightness | 5500 Nits |
| Viewing Distance | 6 Meter |
| MTBF | 10000 Hours |
| Scan Rate | 1/8 Scanning, Contrast current |
| Power consumption | Max: 800 (W/sq.) Avg: 300 (W/sq.) |
| Viewing Angle | Horizontal: 120 Vertical: 120 |
| Humidity | 10% ~ 95% RH |
| Controller System | NOVASTAR |
| Controller Software | NOVA Studio |
| Input Voltage | AC 220V/50HZ OR AC240V/60HZ |
| IC | ICN2153 |
| Operating Temperature | Min -20 C ~ Max +55 C |
| Life Span | >100000 Hrs. |
| Grayscale | 16 bits |
