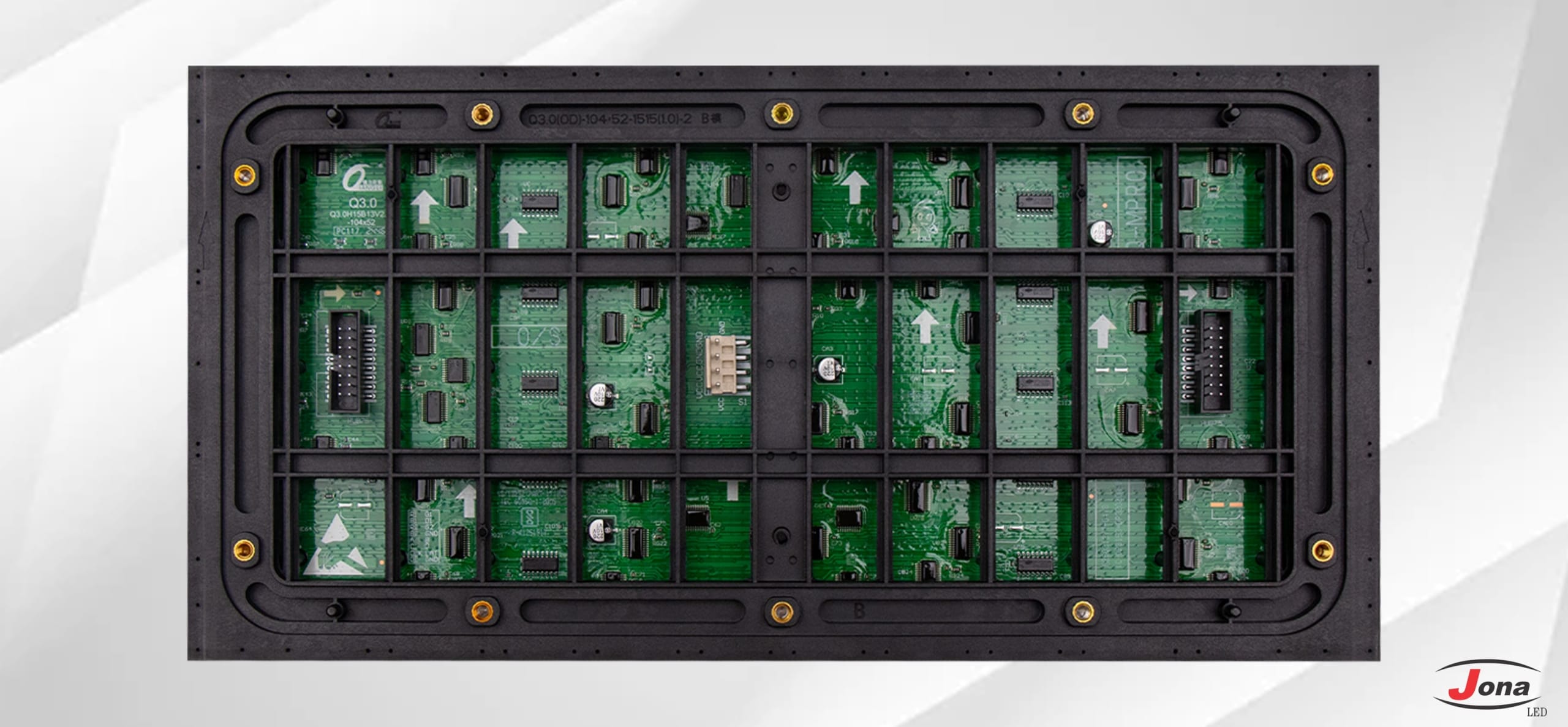

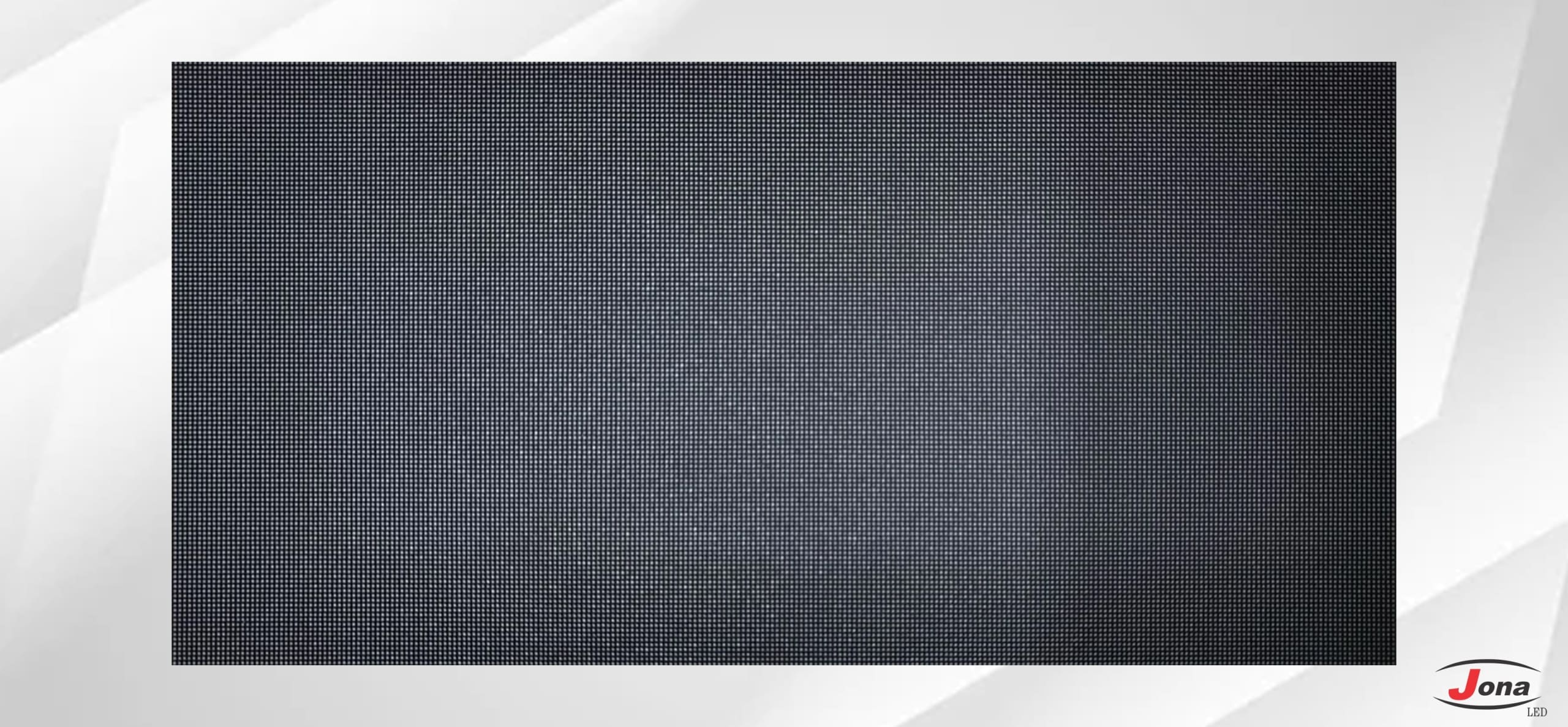

Qiangli Q3 MM Outdoor Module
A powerful outdoor LED module designed for high-impact visual displays in external environments.
With a 3.0 mm pixel pitch, it delivers crisp, clear imaging that works well even for relatively close viewing distances outdoors, while maintaining excellent visual density.
Built using SMD technology, it offers strong color accuracy, high brightness, and wide viewing angles to ensure visibility under sunlight and in varied ambient conditions.
- High refresh rate – smooth video, even with fast-moving content
- Durable 320 × 160 mm size – easy to mount and scale
- Suitable for: billboards, outdoor advertising, event screens, stadiums
| Pixel Pitch | Q3 mm |
| Pixel Density | 110889 pixel/m2 |
| Lamp | SMD1515 |
| Refresh frequency | ≥3840HZ |
| Module size | 320mm x 160mm |
| Module Resolution | 104 dots x 52 dots |
| IP Rating | IP65/IP54 |
| Maintenance | Front/Back |
| Cabinet Resolution | 320X320 Dots |
| Cabinet Weight | 40 Kg/pc |
| Cabinet Material | Mild Steel |
| Cabinet Size | 960X960mm |
| Contrast Ratio | 5000:01:00 |
| Brightness | 5500 Nits |
| Viewing Distance | 3 Meter |
| MTBF | 10000 Hours |
| Scan Rate | 1/13 Scanning, Contrast current |
| Power consumption | Max: 850 (W/sq.) Avg: 280 (W/sq.) |
| Viewing Angle | Horizontal: 140 Vertical: 120 |
| Humidity | 10% ~ 95% RH |
| Controller System | NOVASTAR |
| Controller Software | NOVA Studio |
| Input Voltage | AC 110V/50HZ OR AC220V/60HZ |
| IC | ICN2153 |
| Operating Temperature | Min -20 C ~ Max +65 C |
| Life Span | >100000 Hrs. |
| Grayscale | 16 bits |
