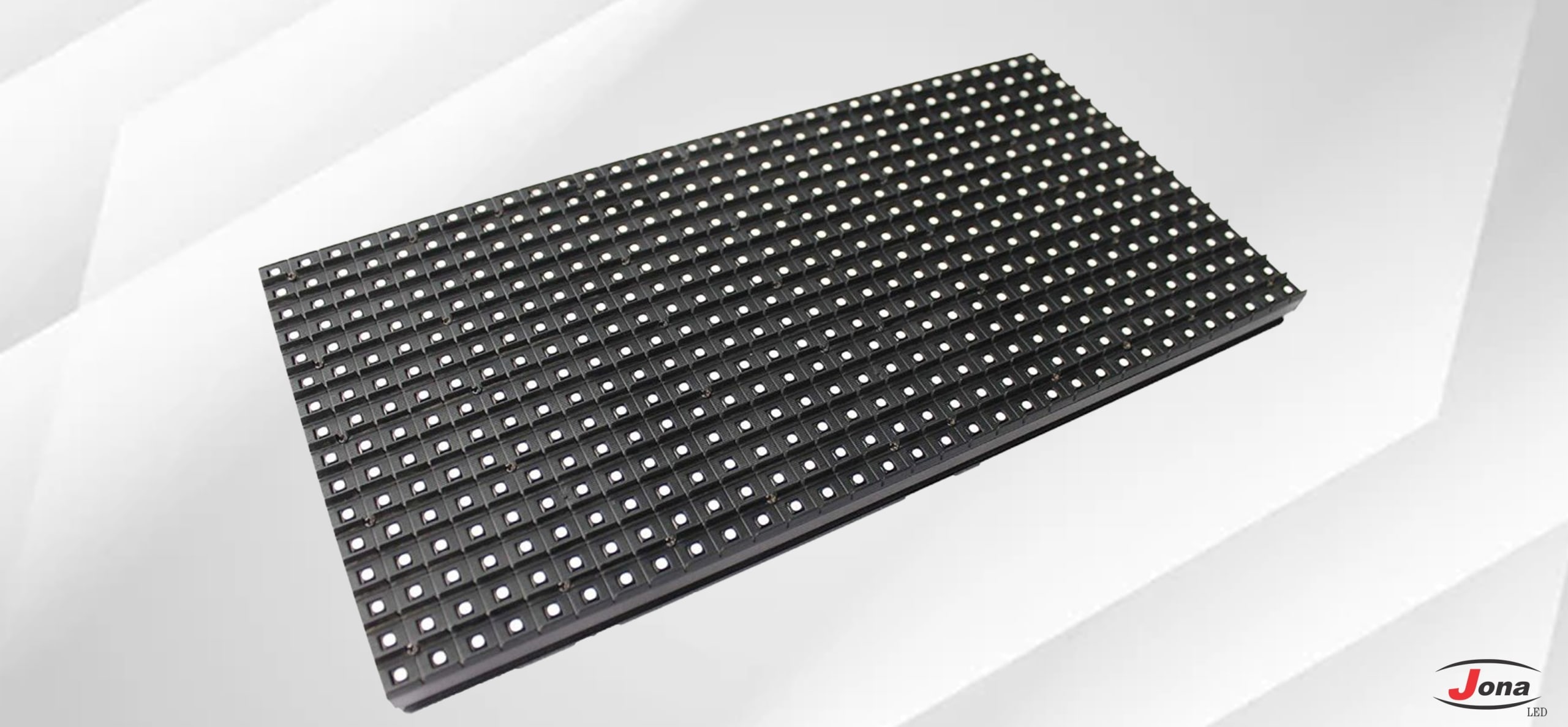

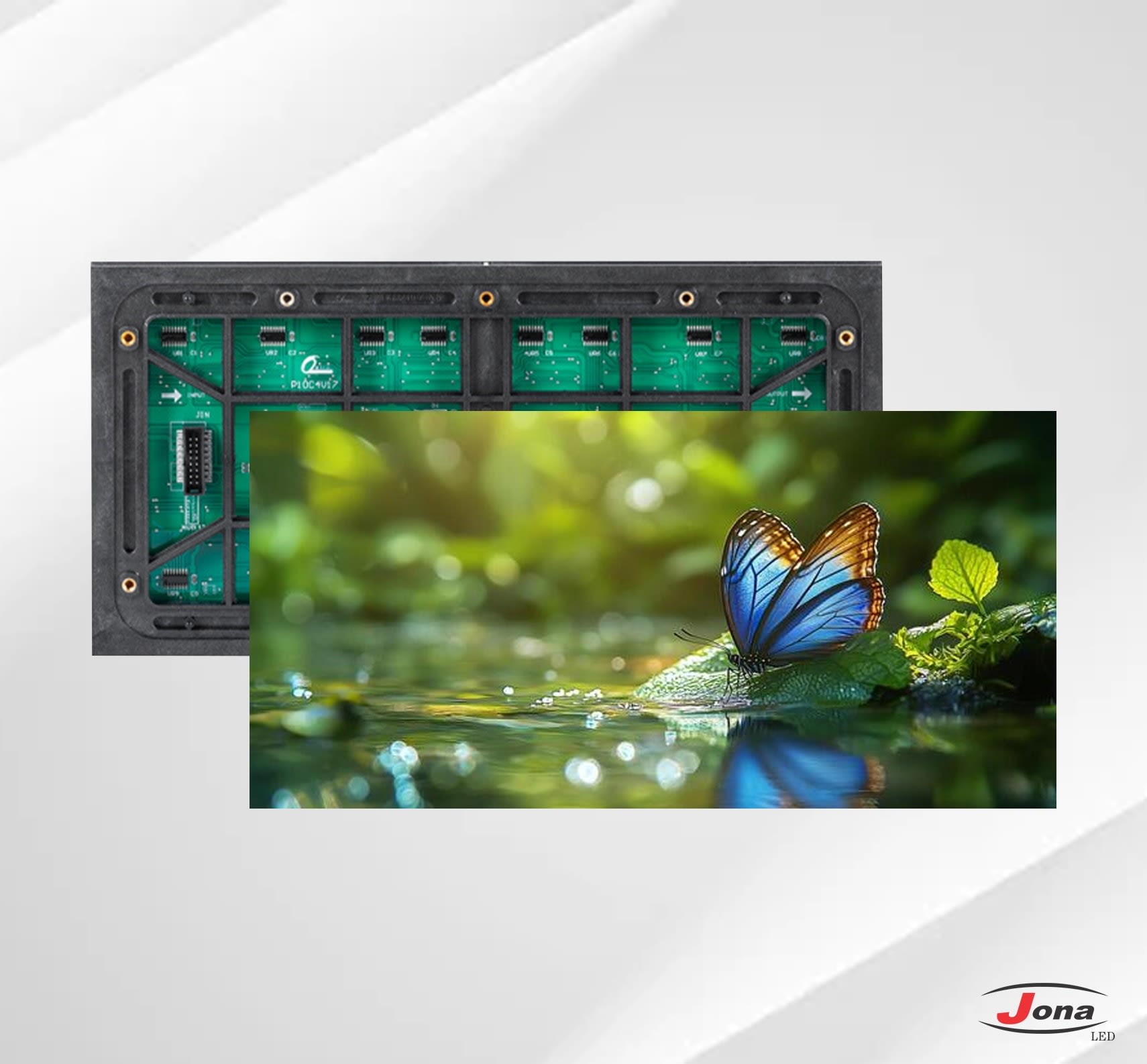

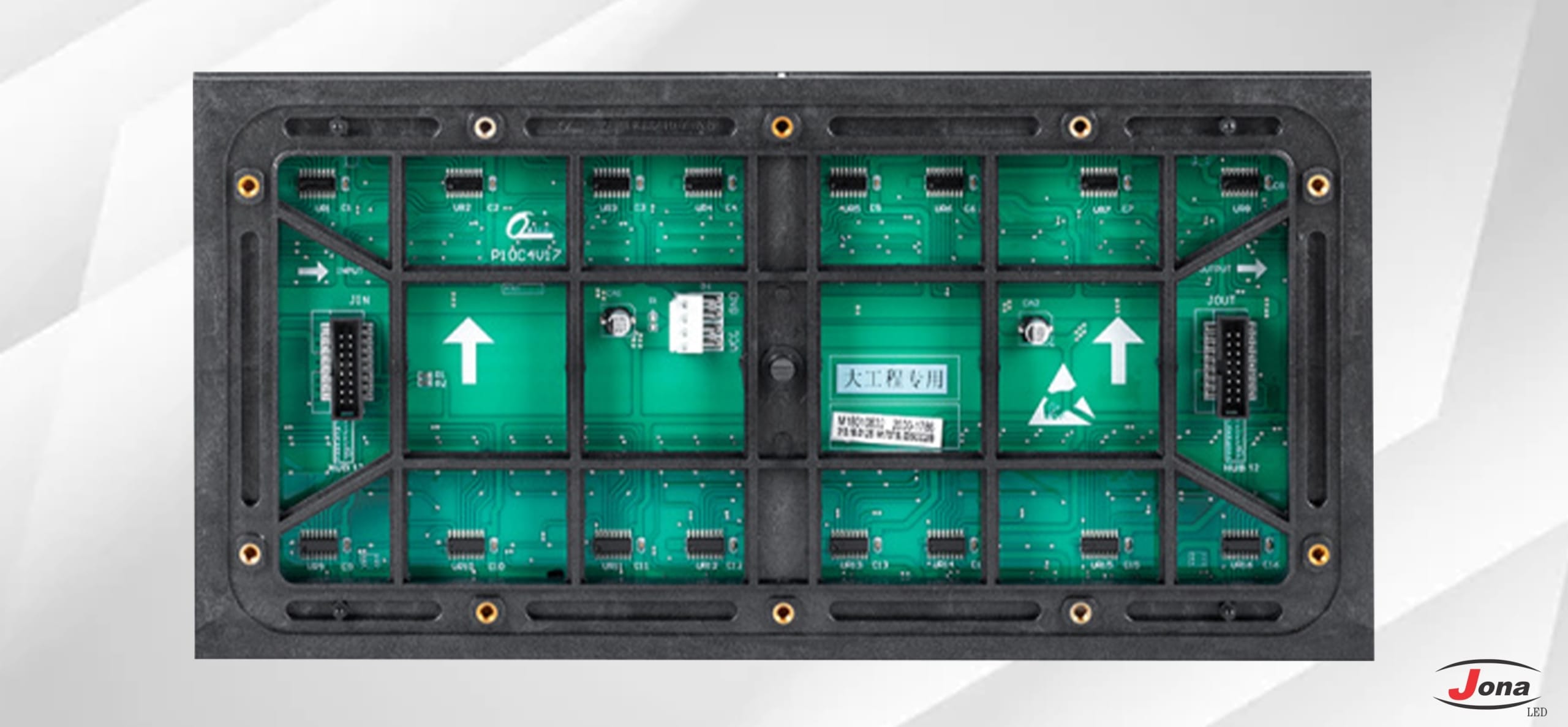

Qiangli Q10 MM Outdoor Module
A robust, cost-efficient outdoor LED module that balances high visibility with reliable performance. With a 10.0 mm pixel pitch, this module is ideal for large-scale outdoor applications where viewers are further away, such as outdoor advertising, stadium screens, and public signage. Brightness typically ranges between 5,500–6,000 cd/m² for SMD types and can go higher for DIP versions. The design supports either 1/2 or 1/4 scan driving, and provides IP65 protection for outdoor durability
- Brightness ≥ 5,500 cd/m² (SMD versions) – retains clarity under daylight
- 320 × 160 mm module size – modular and easy to scale
- Driving mode: 1/2 or 1/4 scan – flexible driving architecture
- Protection: IP65 – built to withstand outdoor weather
- Wide viewing angle – good visibility from different perspectives
| Pixel Pitch | Q10 mm |
| Pixel Density | 10000 pixel/m2 |
| Lamp | SMD3535 |
| Refresh frequency | ≥3840HZ |
| Module size | 320X160mm |
| Module Resolution | 32*16 pixels |
| IP Rating | IP65/IP54 |
| Maintenance | Front/Back |
| Cabinet Resolution | 96X96 Dots |
| Cabinet Weight | 40 Kg/pc |
| Cabinet Material | Mild Steel |
| Cabinet Size | 960X960mm |
| Contrast Ratio | 6422:01:00 |
| Brightness | 6000 Nits |
| Viewing Distance | 10 Meter |
| MTBF | 10000 Hours |
| Scan Rate | 1/2 Scanning, Contrast current |
| Power consumption | Max: 780 (W/sq.) Avg: 350 (W/sq.) |
| Viewing Angle | Horizontal: 120 Vertical: 120 |
| Humidity | 10% ~ 95% RH |
| Controller System | NOVASTAR |
| Controller Software | NOVA Studio |
| Input Voltage | AC 110V/50HZ OR AC220V/60HZ |
| IC | ICN2153 |
| Operating Temperature | Min -20 C ~ Max +55 C |
| Life Span | >100000 Hrs. |
| Grayscale | 16 bits |
