GOB SERIES
The Jona LED GOB (Glue On Board) Series is engineered for enhanced durability, superior protection, and high-definition visual performance. Designed for close-viewing indoor applications, GOB technology applies a transparent protective layer over the LED module surface, safeguarding the pixels from physical damage, dust, moisture, and static electricity.
This advanced protection makes the GOB Series ideal for high-traffic environments where LED displays are exposed to accidental touch or impact. With improved reliability and long-term stability, it delivers seamless visuals, vibrant colors, and consistent brightness performance.
The GOB Series combines robust protection with excellent heat dissipation, ensuring stable operation and extended lifespan. It is perfectly suited for retail showrooms, corporate spaces, shopping malls, studios, conference rooms, and digital signage applications.
- Advanced GOB (Glue On Board) surface protection technology
- High impact resistance and anti-collision design

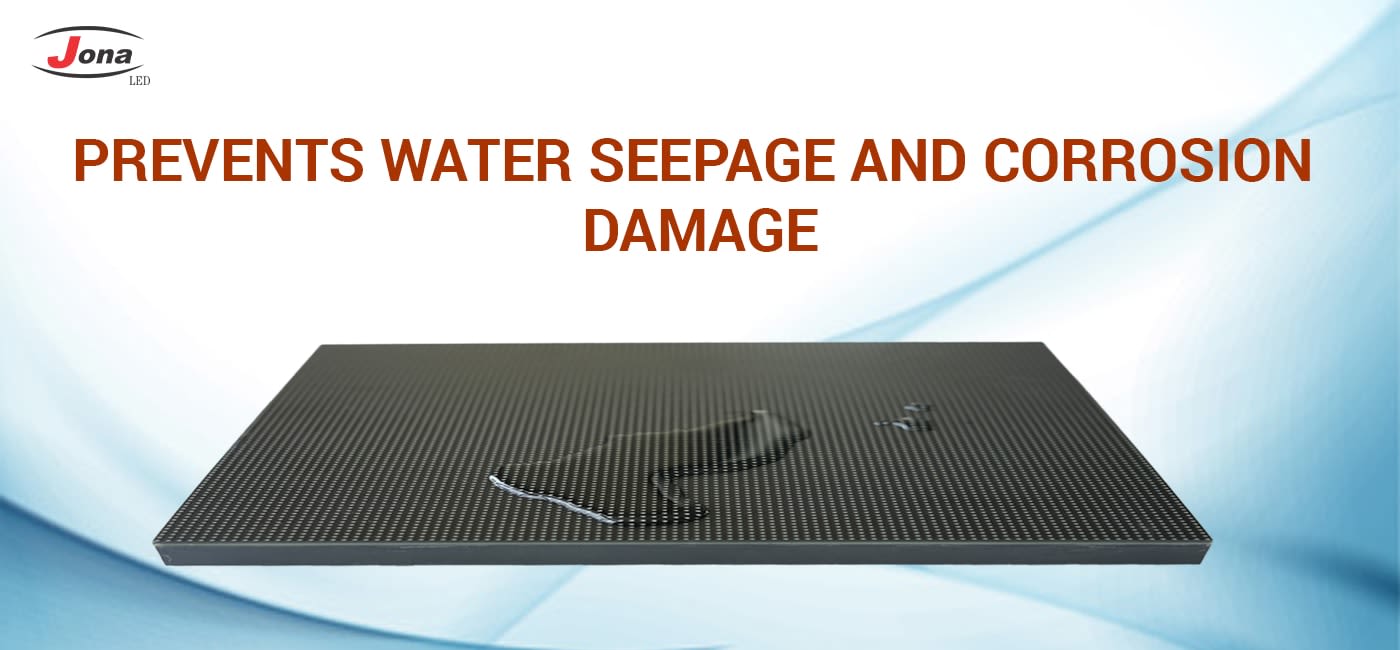

- Waterproof, dustproof and moisture-resistant LED modules
- Anti-static and anti-oxidation protection
- High brightness with uniform color consistency
- Wide viewing angle with seamless visual performance
- Enhanced durability for long-term stable operation
- Ideal for indoor high-traffic and close-viewing applications
| TECHNICAL SPECIFICATION | ||||
|---|---|---|---|---|
| Pixel Pitch | P 1.2mm | P 1.5mm | P 1.8mm | P 2.5mm |
| Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Size (Width*Height*Depth) | 320*160*15mm | 320*160*15mm | 320*160*15mm | 320*160*15mm |
| Pixel Density | 640000 Dots/m² | 422500 Dots/m² | 288906 Dots/m² | 160000 Dots/m² |
| LED type | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Resolution | 256*128 | 208*104 | 172*86 | 128*64 |
| Scan Rate | 1/64 Scan | 1/52 Scan | 1/43 Scan | 1/32 Scan |
| Refresh Rate | ≥6000 Hz | ≥6000 Hz | ≥6000 Hz | ≥6000 Hz |
| Display Color | 4398 Billion | 4398 Billion | 4398 Billion | 4398 Billion |
| Cabinet Size (Width*Height*Thickness) | 640mm*480mm*78mm | 640mm*480mm*78mm | 640mm*480mm*78mm | 640mm*480mm*78mm |
| Cabinet Pixel Density | 512*384=196608 Dots/m² | 416*312=129792 Dots/m² | 344*258=88752 Dots/m² | 256*192=49152 Dots/m² |
| Cabinet Max Power Consumption | ≤178W | ≤178W | ≤135W | ≤140W |
| Average Power Consumption | ≤59W | ≤59W | ≤45W | ≤47W |
| Brightness | ≥650cd/m² | ≥650cd/m² | ≥600cd/m² | ≥600cd/m² |
| Horizontal Viewing Angle | 140 ±10 degree | 140 ±10 degree | 140 ±10 degree | 140 ±10 degree |
| Vertical Viewing Angle | 130 ±10 degree | 130 ±10 degree | 130 ±10 degree | 130 ±10 degree |
| Best Viewing Distance | ≥2.1m | ≥2.4m | ≥3.2m | ≥4.5m |
| Max Power Consumption | ≤580 W/m² | ≤580 W/m² | ≤439 W/m² | ≤457 W/m² |
| Grayscale | 16bits | 16bits | 16bits | 16bits |
| Frame Frequency | ≥60 frame/sec | ≥60 frame/sec | ≥60 frame/sec | ≥60 frame/sec |
| Operating Humidity | 10% – 65% RH | 10% – 65% RH | 10% – 65% RH | 10% – 65% RH |
| Operating Temperature | -15°C – 40°C | -15°C – 40°C | -15°C – 40°C | -15°C – 40°C |
LED displays are revolutionizing the way businesses operate and sold in today’s dynamic landscape
Quick and multi-angle mounting is made possible by excellent mechanical design, which also guarantees a gap-free, uniform screen surface.
The fine pixel pitch panels have power systems and backup data, which minimizes the possibility of total failure and screen blackout.
The Flip Chip technology disperses heat through the common cathode; enhancing electrical performance, thermal control, pixel density, and color constancy.
The indoor LED display fills the inside space with plenty of visual stimulation despite its thin 30mm thickness and light 3.20kg weight.
Each indoor XR Chip-On-Board display is moisture-proof, anti-static, dust-proof, anti-oxidized, and highly reliable.
Your LED display ought to appear picture-perfect at all times. You can effortlessly create a seamless canvas with the Jona Led screens
Jona Led has developed components like power-saving ICs & lamps, unique PCBs, and efficient power supplies that guarantee lower power consumption than average
Greater stability and a smooth transition between display and video images are what we guarantee
