Cylindrical Shaped LED Display
Step into the future of visual innovation with our Cylindrical LED Display, engineered to deliver a truly immersive 360° viewing experience. Built with ultra-flexible 2.5mm pixel pitch LED modules, this advanced curved LED display ensures seamless visuals, high resolution, and vibrant color accuracy from every angle. Its unique cylindrical design transforms traditional digital signage into a dynamic, wraparound LED video wall, making it perfect for high-end retail stores, showrooms, museums, and corporate environments.
Designed for premium applications, this flexible LED display enhances brand storytelling and audience engagement through captivating visuals and smooth content playback. With customizable sizes, sleek finishes, and energy-efficient performance, it adapts to various architectural spaces. Whether used for advertising displays, experience centers, or interactive installations, this cylindrical LED screen delivers reliability, modern aesthetics, and impactful visual communication.
- 360° seamless viewing with uniform visual clarity

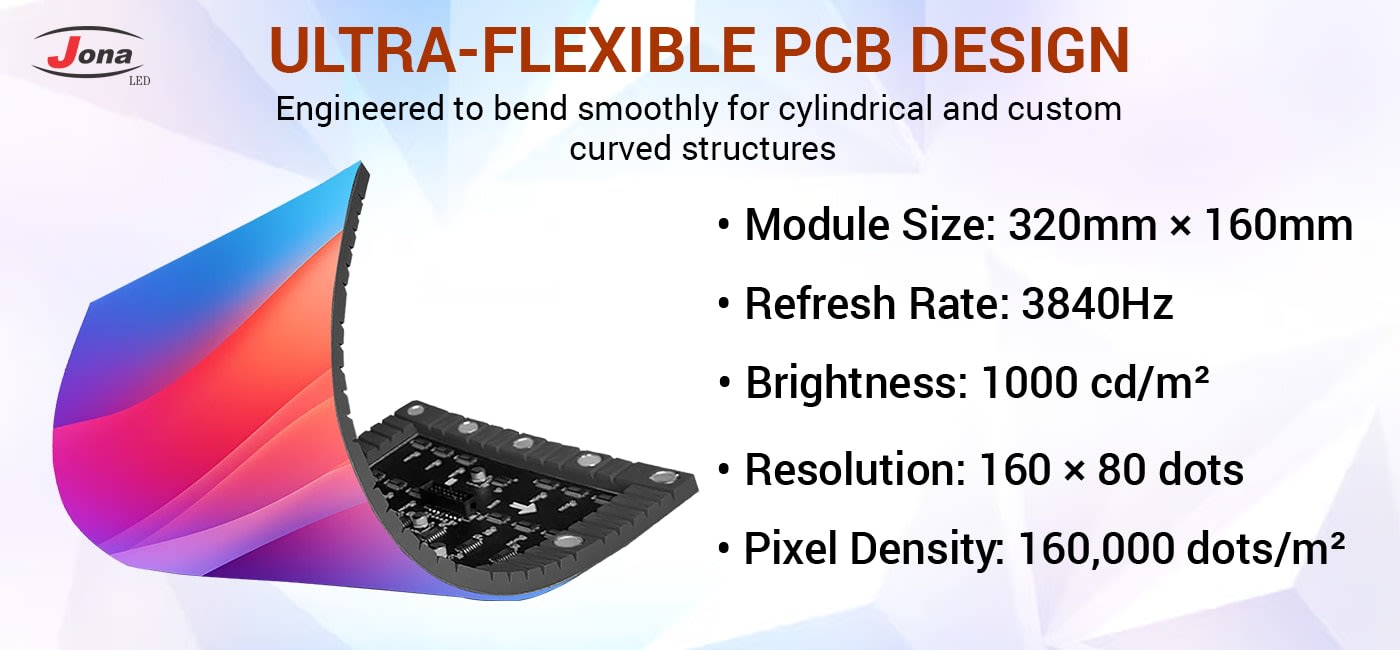

- Ultra-flexible LED modules for curved installations

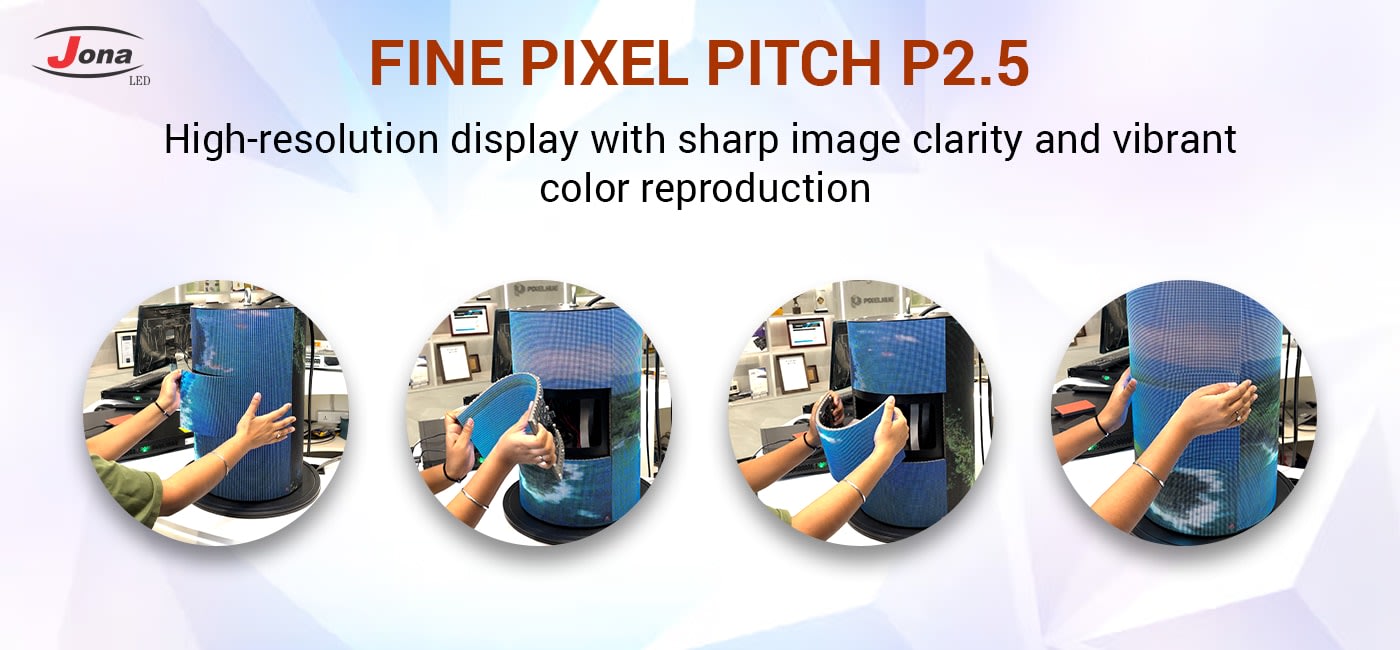

- High resolution with fine pixel pitch display
- Ideal for retail, museums, and corporate spaces
- Enhances immersive branding and digital storytelling
- Custom sizes with premium finishes available
| Pixel Pitch | P2.5mm |
|---|---|
| Module | Flexible |
| Cylinder Diameter | 305mm |
| Size |
Width : 960mm Height : 480mm |
| Module Configuration | 3 Modules in Width × 3 Modules Height |
| Led | SMD2020 |
| Pixel Density | 160000 dots/m2 |
| Pixel Configuration | Commercial grade 3-in-1 SMD |
| Manual/Automatic | Front service of module |
| Cabinet material | Mild Steel |
| Module Dimension | 320mm x 160mm |
| Module Resolution | 160dots x 80 dots |
| Viewing Distance | 2.5 Meter |
| Brightness | 1000cd/M² |
| Gray Scale | 16 bit |
| Contrast Ratio | ≥7000:1 |
| Brightness uniformity | 99% |
| Color Temperature | 3000 – 10000 K, adjustable |
| Refresh Rate | 1920/3840 HZ |
| Scan Rate | Jan-32 |
| Controller System | NOVASTAR |
| Controller Software | NOVASTAR |
| Viewing Angle | Horizontal : 160°, Vertical 160° |
| Temperature Range (-/+)°C | Humidity |
| Humidity | 10 % ~ 95 % RH |
| Life Span | 100000 Hours |
| MTBF | 100000 Hours |
| Power Consumption |
Max : 500 w/Pcs, Average : 160 w/Pcs |
| Certifications/ Regulatory |
BIS, MSME, CE, FCC, UL, EMC, CB, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, ISO27001:2013, REACH, ISO 20000-1, OSHAS 45001, ISO 9241, CMMI 3 |
LED displays are revolutionizing the way businesses operate and sold in today’s dynamic landscape
High brightness and extended longevity are guaranteed by the Kinglight lamp, making it ideal for outdoor advertising, high-end conferences, and HD visuals.
Our cutting-edge lock system will securely lock your cabinets, and make installation possible by one person only.
Our unique design panel is flexible and adaptable to a variety of environments, and it can be utilized as a dance floor, cube, or curved led with ease.
We ensure unique protection for all four corners and therefore, provide maximum protection for module edges, making your LED panel durable.
It has a quick-plug design that allows it to be dismounted quickly and prevents pin header from being deformed during installation.
Using energy-saving technology, our exclusively designed LED panels are 50% more energy-efficient than conventional LED screens.
We have developed a dual power and signal backup solution- i.e. a “1+1” parallel redundancy design. It increases the on-site use’s stability.
High brightness and cinema-quality color paired with powerful processing (ICNIC 2153, 4K@120Hz, HDR10 compatibility) delivers brilliant, true-to-life detail.
