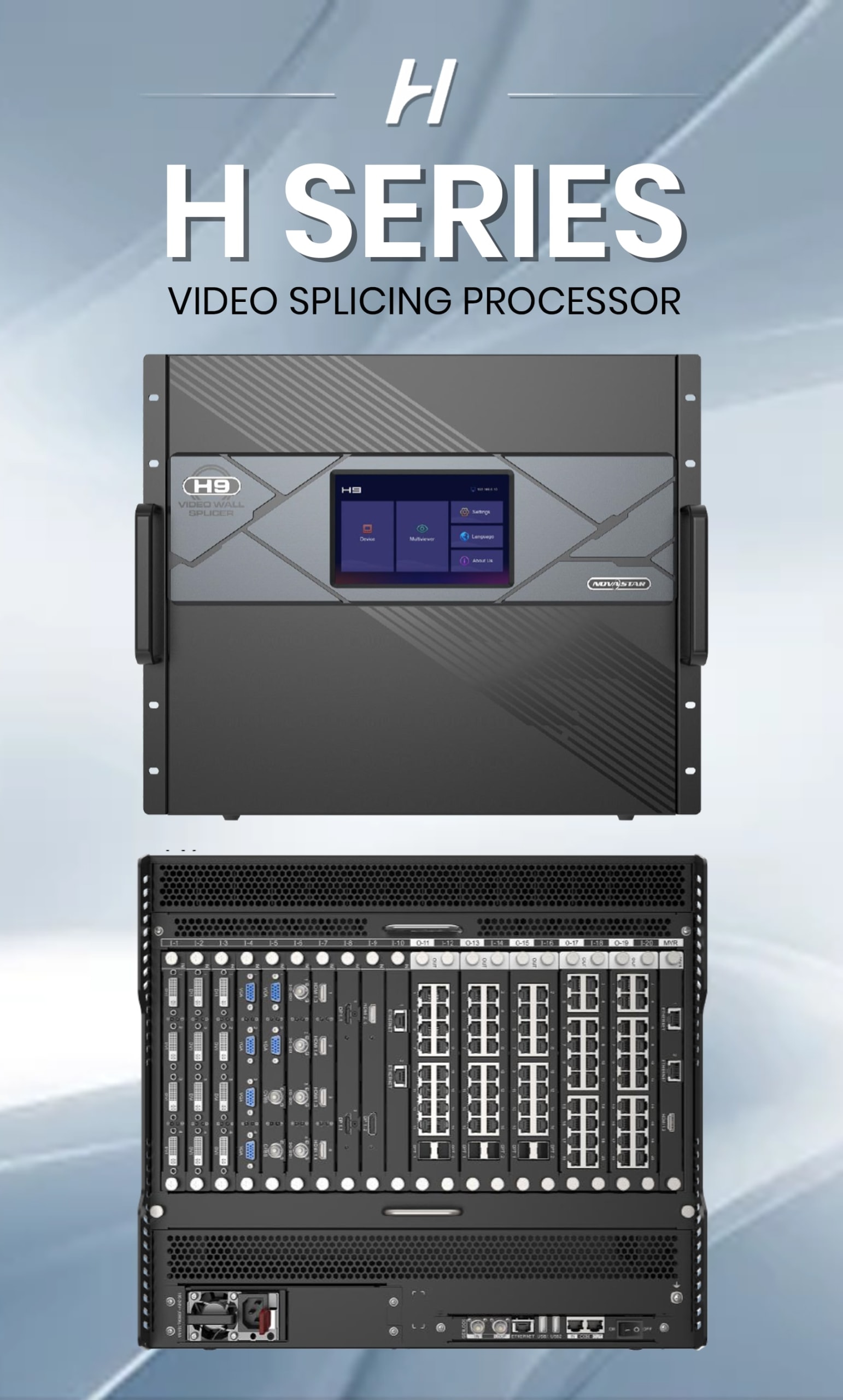

Novastar H9 LED Video Wall Processor
The Novastar H9 processor, part of the high-performance processors series offered by Jona LED, is engineered for advanced LED video wall processing and display control in large-scale environments. Designed for demanding applications, the H9 is widely used in broadcast studios, command centers, control rooms, and premium LED video wall installations where precision and stability are critical. It delivers smooth video processing, seamless scaling, and consistent output across multiple LED panels.
With enhanced processing capability, the Novastar H9 video wall processor supports complex multi-screen configurations and multiple input sources, allowing flexible control of large LED display systems. It ensures accurate color reproduction, uniform brightness, and stable signal transmission even in high-resolution setups. Built for continuous operation, the H9 controller provides dependable performance for mission-critical LED display applications.
Its robust design and efficient control system make it a reliable solution for professionals managing high-end LED video walls and advanced display environments.
- Advanced LED video wall processor and splicer for large installations
- Supports multiple input signals for complex display setups
- Accurate color reproduction and uniform display output
- Designed for broadcast, control rooms, and high-end applications
- Stable signal transmission across large LED video walls
- Reliable performance for continuous and professional LED display use
| Input Connector | Color Depth | Max. Input Resolution | |
|---|---|---|---|
| HDMI 1.3 | 8-bit | RGB 4:4:4 | 2048×1152@60Hz |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| 10-bit | RGB 4:4:4 | 2048×1152@60Hz | |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| 12-bit | RGB 4:4:4 | 2048×1152@60Hz | |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| SL-DVI | 8-bit | RGB 4:4:4 | 2048×1152@60Hz |
| DL-DVI | 8-bit | RGB 4:4:4 | 3840×1080@60Hz |
| VGA CVBS | – | RGB 4:4:4 | 1920×1080@60Hz |
| 3G-SDI |
Supports up to 1920×1080@60Hz video inputs. Input resolution and bit depth settings are not allowed. Supports ST-424 (3G) and ST-292 (HD). |
||
| 12G-SDI |
Supports up to 4096×2160@60Hz video inputs. Input resolution and bit depth settings are not allowed. Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD). |
||
| Overall Specification | |||
| Model | H9 | ||
| Chassis | H9 | ||
| Rack Unit | 9U | ||
| Max. Input Cards | 4 | ||
| Max. Input Channels | 16 | ||
| Max. Output Cards | 2 | ||
| Max. Loading Capacity (LED 4K sending card) |
26,000,000 pixels | ||
| Max. Layers | 32 | ||
| Electrical Specifications | Power connector | 100–240V~, 50/60Hz, 10A–5A | |
| Power consumption | 210 W | ||
| Operating Environment | Temperature | 0°C to 45°C | |
| Humidity | 0% RH to 80% RH, non-condensing | ||
| Storage Environment | Temperature | –10°C to +60°C | |
| Humidity | 0% RH to 80% RH, non-condensing | ||
| Physical Specifications | Dimensions | 482.6 mm × 88.1 mm × 455 mm | |
| Net weight | 15.6 kg | ||
| Gross weight | 18 kg | ||
| Certifications | RoHS, EAC, CE, FCC, IC | ||
