Novastar H5 LED Video Wall Processor
The Novastar H5 processor, part of the advanced processors series by Jona LED, is a powerful LED video wall processor and controller built for professional display environments. Designed to handle complex LED video wall setups, the H5 is widely used in control rooms, broadcast studios, and large digital display installations where smooth performance and precise image control are essential. It ensures seamless visuals with accurate color output and stable signal distribution across LED panels.
The Novastar H5 controller supports multiple input sources and flexible screen management, making it suitable for multi-window and large-format LED display configurations. With efficient image scaling and reliable synchronization, it delivers consistent output even in demanding applications. Easy to configure through Novastar control software, the H5 processor offers dependable performance for continuous operation in professional LED display systems.
- High-performance LED video wall processor and controller

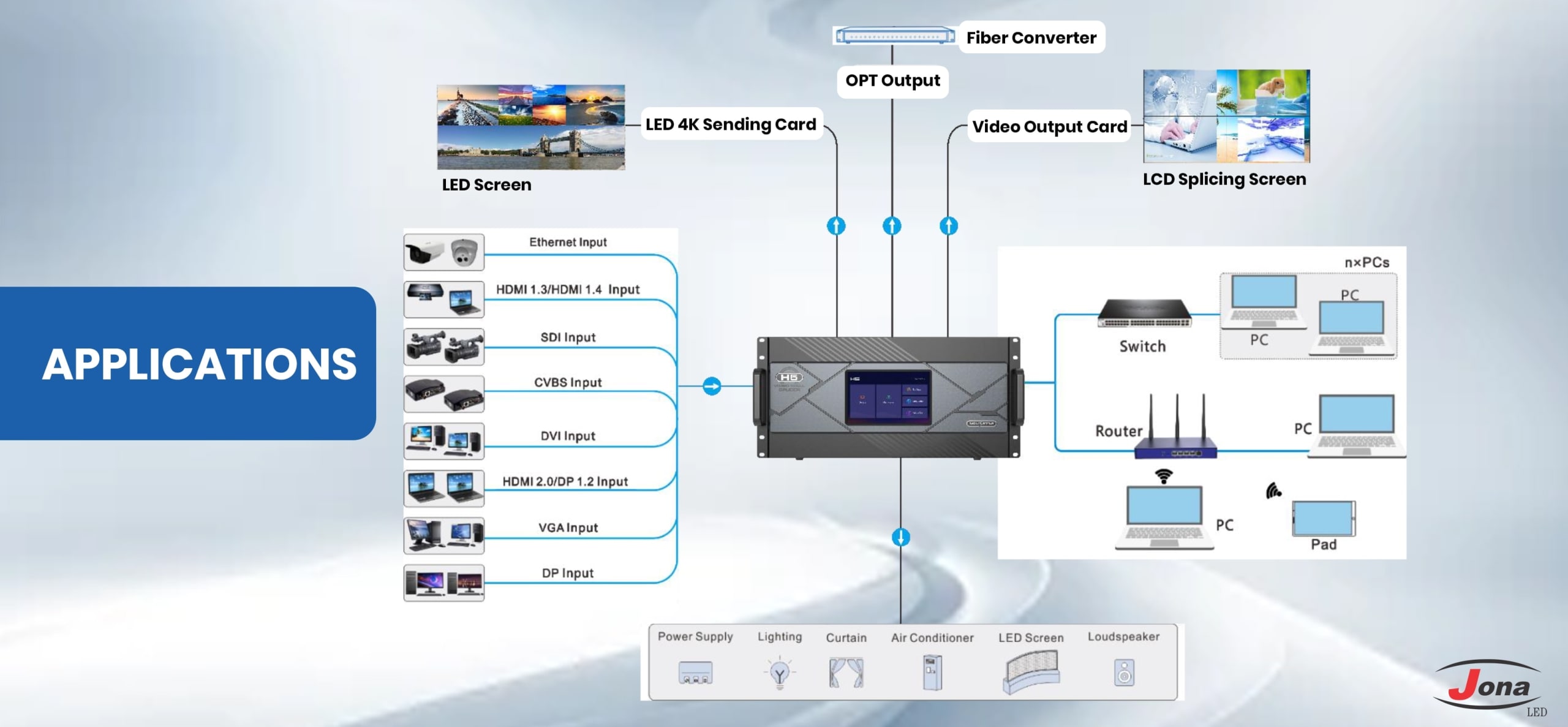

- Supports multiple input signals for flexible display configurations
- Accurate color reproduction for consistent display quality
- Smooth image scaling and seamless screen synchronization
- Designed for broadcast, control rooms, and commercial applications
- Easy configuration using Novastar control system software
| Model | 5H | |
| Rack Unit | 5U | |
| Max. Input Cards | 10C | |
| Max. Input Channels | 40 | |
| Max. Output Cards | 3 | |
| Max. Loading Capacity (LED 4K sending card) | 39,000,000 pixels | |
| Max. Layers | 48 | |
| Electrical Specifications | Power connector |
100–240V~, 50/60Hz, 10A–5A Note: The H5 comes with a single power supply. A redundant power supply is optional. |
| Power consumption | 400 W | |
| Operating Environment | Temperature | 0°C to 45°C |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Storage Environment | Temperature | 10°C to +60°C |
| Humidity | 0% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 482.6 mm × 532.8 mm × 228.2 mm |
| Net weight | 25 kg | |
| Gross weight | 28 kg | |
| Packing Information | Packing box | 780 mm × 615 mm × 345 mm |
| Accessories |
1x Power cord 1x RJ45 Ethernet cable 1x Grounding cable 1x HDMI cable 1x Quick Start Guide 1x Certificate of Approval 1x Safety Manual 1x Custom Letter |
|
| Certifications |
FCC, IC Note: If the product does not have the relevant certifications required by the countries or regions where it is to be sold, please apply for the certifications yourself or contact NovaStar to apply for them. |
