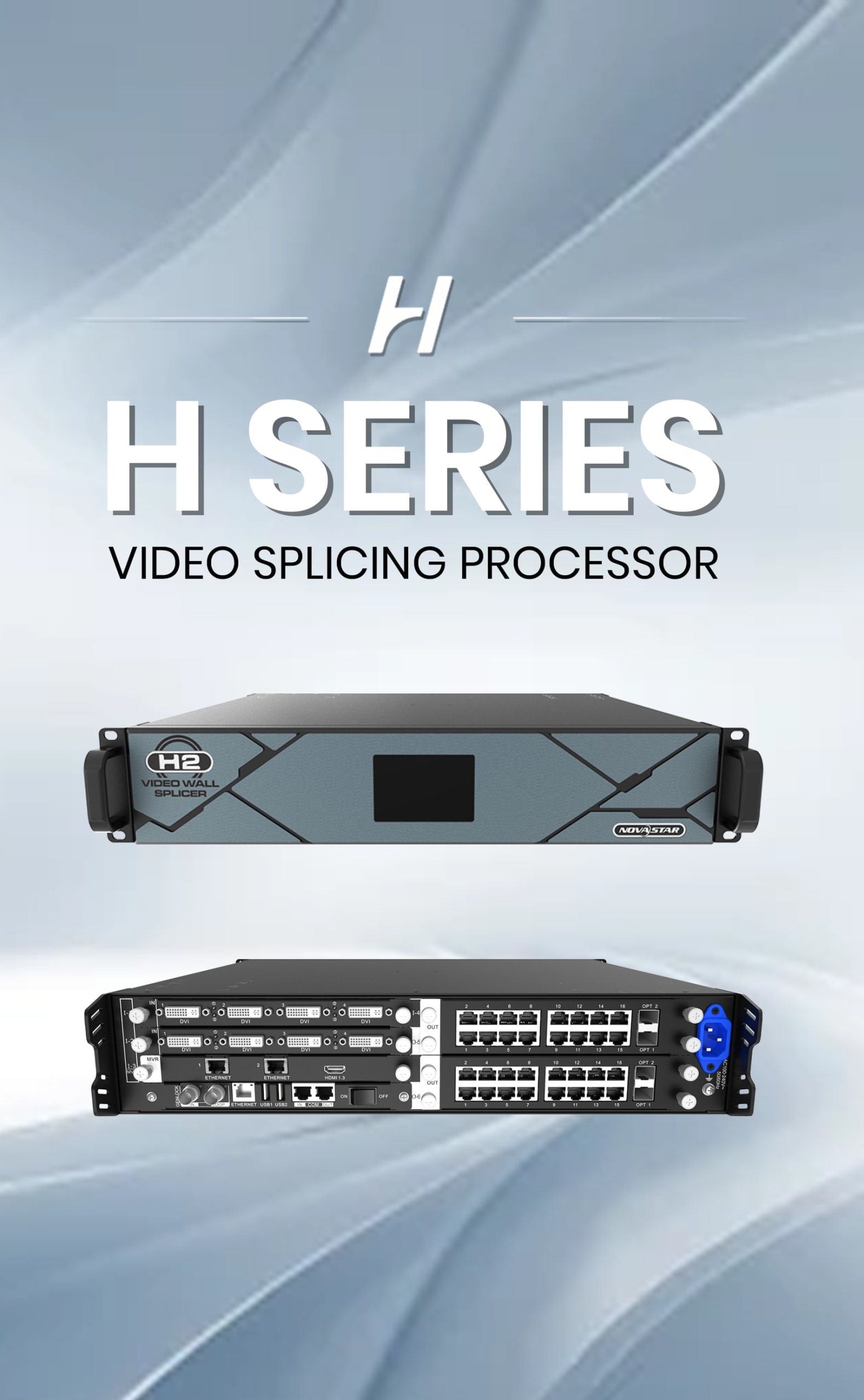

Novastar H2 LED Video Wall Processor
The Novastar H2 processor, part of the professional processors series offered by Jona LED, is designed for precise control and seamless management of LED video walls. As a reliable video wall splicer and LED video processor, it is widely used in control rooms, corporate environments, and broadcast setups where stable performance and accurate display output are essential. The H2 ensures smooth image processing with consistent color and clarity across multiple LED panels.
Built for flexibility, the Novastar H2 controller supports multiple input sources and efficient screen management, making it suitable for complex LED display layouts. It allows users to control and configure large LED video walls with ease while maintaining stable signal transmission. With dependable performance and intuitive operation, the H2 processor is ideal for professional LED display systems that require continuous and reliable operation.
- Professional LED video wall processor and splicer

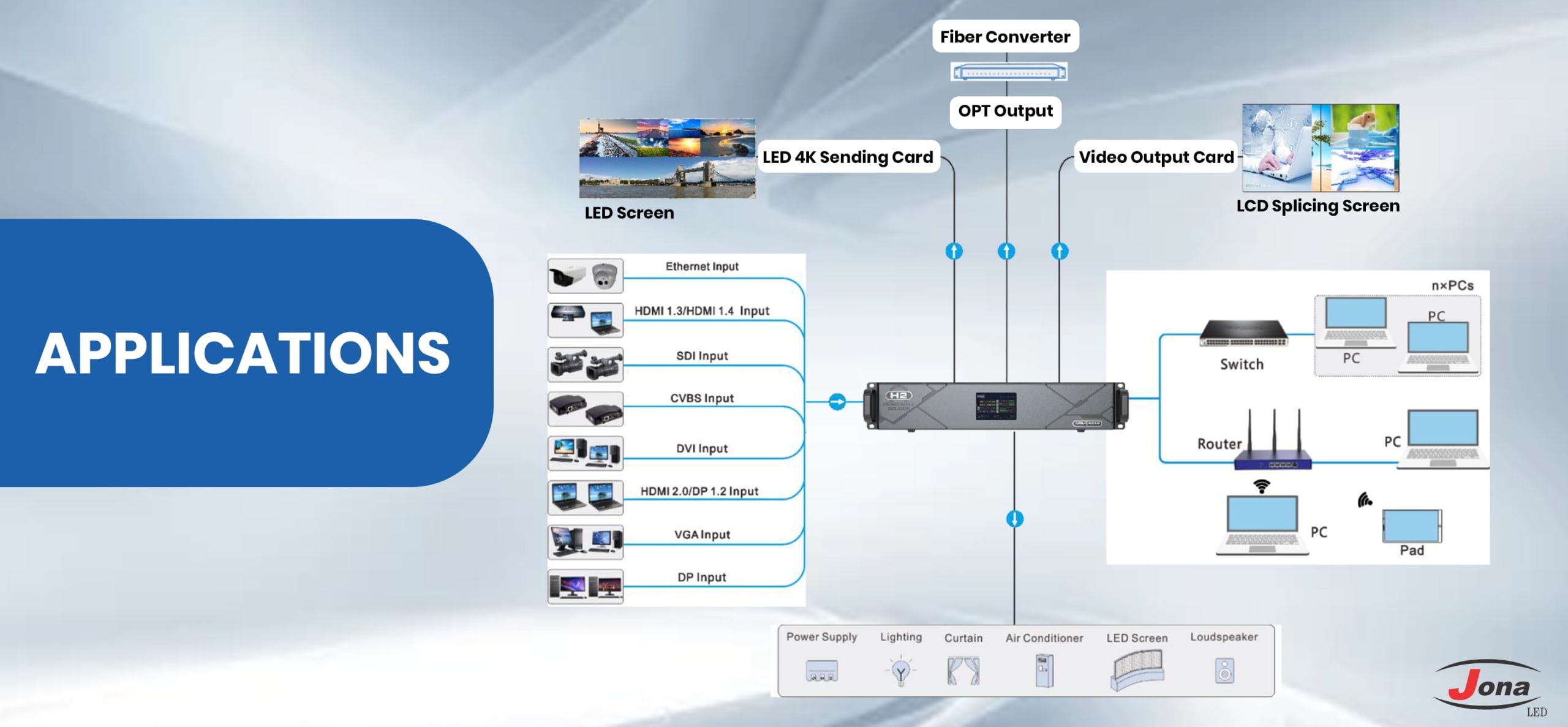

- Supports multiple input signals for flexible display control
- Accurate color reproduction for consistent display quality
- Designed for control rooms and broadcast environments
- Stable signal transmission across LED video walls
- Easy configuration using Novastar control system software
| Input Connector | Color Depth | Max. Input Resolution | |
|---|---|---|---|
| HDMI 1.3 | 8-bit | RGB 4:4:4 | 2048×1152@60Hz |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| 10-bit | RGB 4:4:4 | 2048×1152@60Hz | |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| 12-bit | RGB 4:4:4 | 2048×1152@60Hz | |
| YCbCr 4:4:4 | |||
| YCbCr 4:2:2 | |||
| YCbCr 4:2:0 | Not supported | ||
| SL-DVI | 8-bit | RGB 4:4:4 | 2048×1152@60Hz |
| DL-DVI | 8-bit | RGB 4:4:4 | 3840×1080@60Hz |
| VGA CVBS | – | RGB 4:4:4 | 1920×1080@60Hz |
| 3G-SDI |
Supports up to 1920×1080@60Hz video inputs. Input resolution and bit depth settings are not allowed. Supports ST-424 (3G) and ST-292 (HD). |
||
| 12G-SDI |
Supports up to 4096×2160@60Hz video inputs. Input resolution and bit depth settings are not allowed. Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G) and ST-292 (HD). |
||
| Overall Specification | |||
| Model | H2 | ||
| Rack Unit | 2U | ||

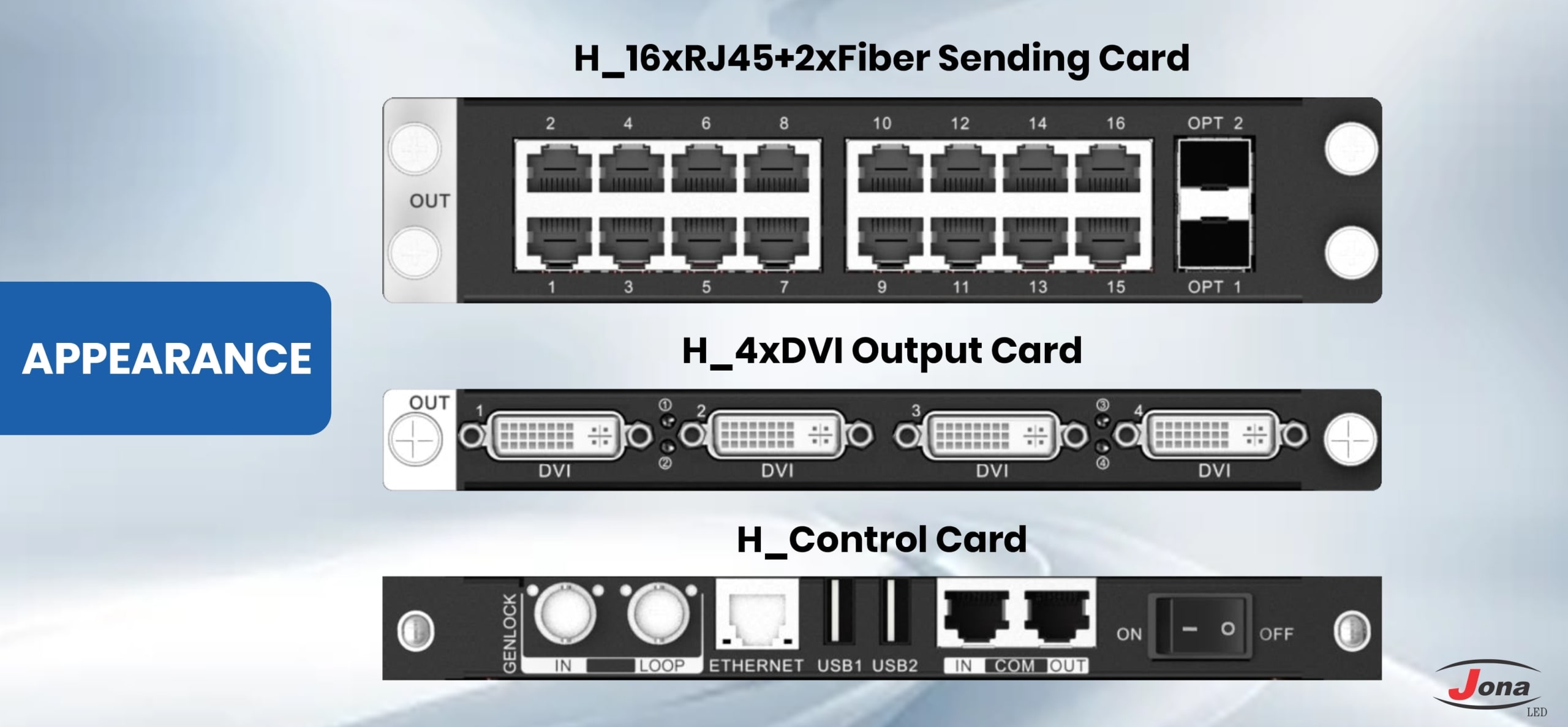

| Max. Input Cards | 4 | ||
| Max. Input Channels | 16 | ||
| Max. Output Cards | 2 | ||
| Max. Loading Capacity (LED 4K sending card) |
26,000,000 pixels | ||
| Max. Layers | 32 | ||
| Electrical Specifications | Power connector | 100–240V~, 50/60Hz, 10A–5A | |
| Power consumption | 210 W | ||
| Operating Environment | Temperature | 0°C to 45°C | |
| Humidity | 0% RH to 80% RH, non-condensing | ||
| Storage Environment | Temperature | –10°C to +60°C | |
| Humidity | 0% RH to 80% RH, non-condensing | ||
| Physical Specifications | Dimensions | 482.6 mm × 88.1 mm × 455 mm | |
| Net weight | 15.6 kg | ||
| Gross weight | 18 kg | ||
| Certifications | RoHS, EAC, CE, FCC, IC | ||
