Novastar H15 LED Video Wall Processor
The Novastar H15 processor, part of the advanced processors series from Jona LED, is built for high-capacity LED video wall processing and display control in large and complex environments. Designed for professional applications, the H15 is widely used in control rooms, broadcast studios, corporate command centers, and large LED video wall installations where performance and stability are essential. It delivers smooth image processing, precise scaling, and consistent output across multiple LED panels.
With powerful processing architecture, the Novastar H15 video wall processor supports multiple input sources and flexible screen management, making it ideal for multi-window and ultra-wide LED display configurations. It ensures accurate color reproduction, uniform brightness, and stable signal transmission even in high-resolution setups. The H15 controller is engineered for continuous operation, providing reliable performance for critical LED display systems.
Its robust design and advanced control capabilities make the H15 a dependable solution for managing professional LED video walls and large-scale display networks.
- High-capacity LED video wall processor and controller
- Supports multiple input sources for complex display configurations
- Advanced image scaling and seamless multi-screen synchronization
- Stable signal transmission for large LED video wall systems
- Accurate color reproduction and uniform brightness output
- Designed for control rooms, broadcast, and enterprise applications
| Model | H15 | ||
|---|---|---|---|

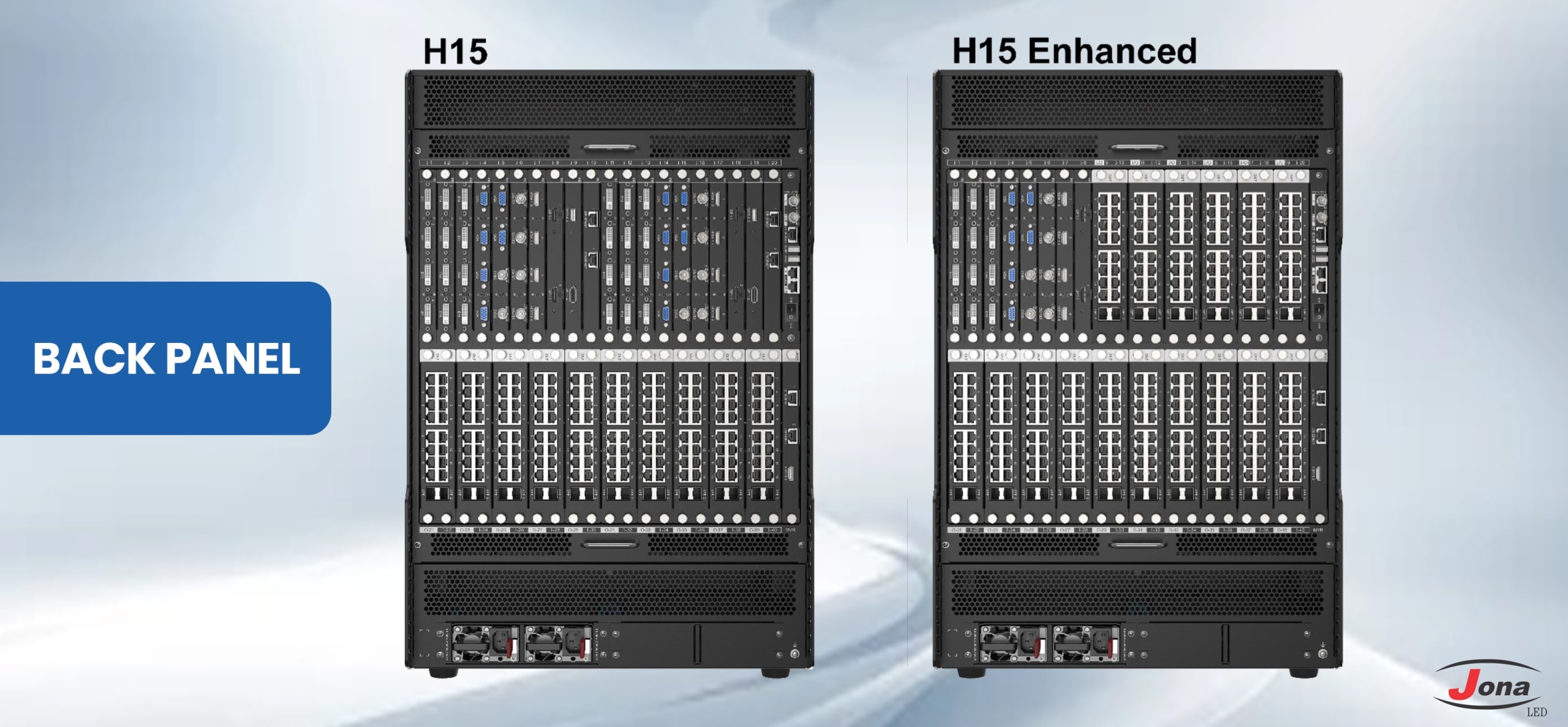

| Chassis | H15 | H15 Enhanced | |
| Rack Unit | 15U | ||
| Max. Input Cards | 30 | ||
| Max. Input Channels | 120 | ||
| Max. Output Cards | 10 | 16 | |
| Max. Output Channels | 40 | 64 | |
| Max. Layers | 160 (Up to 16 layers per card) |
160 (Up to 10 layers per card) |
|

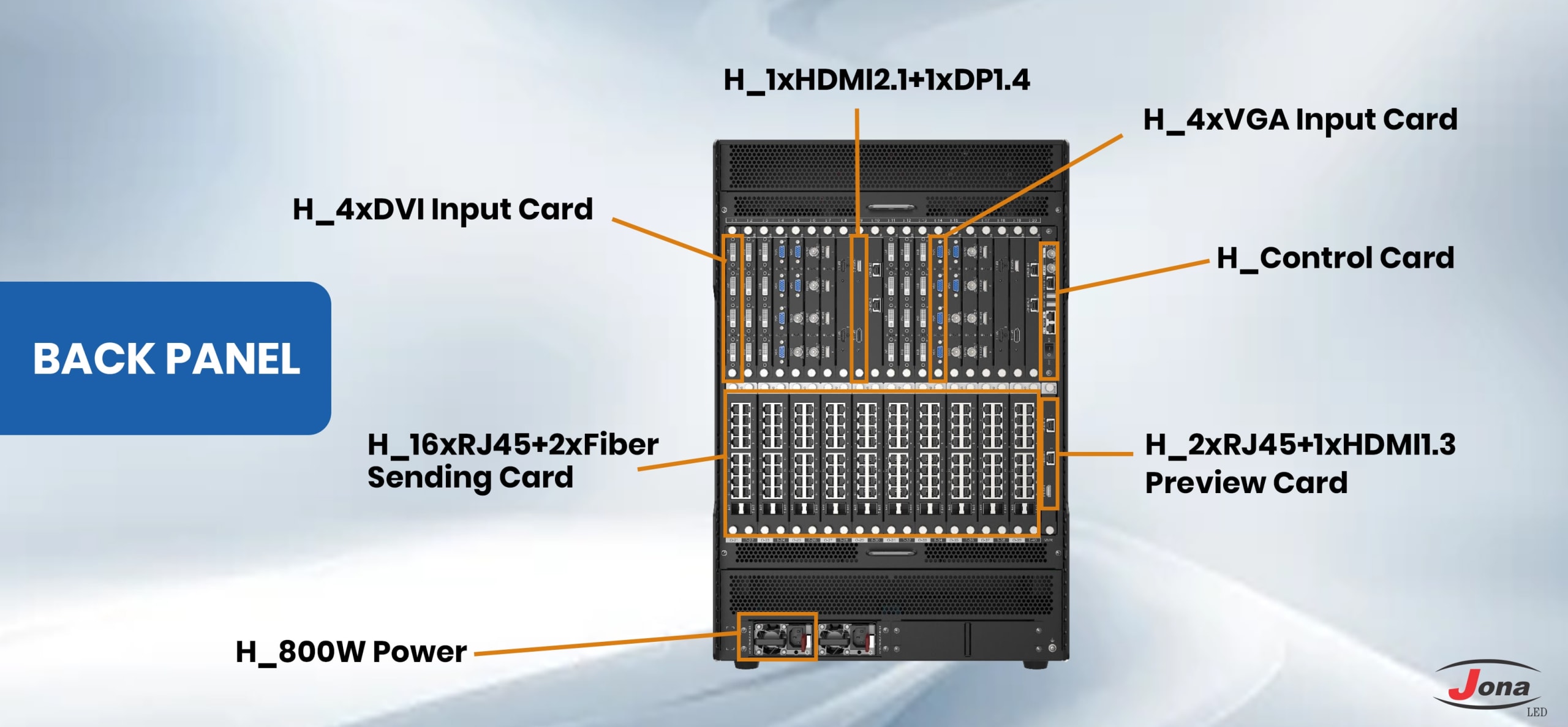

| Max. Loading Capacity | H_16xRJ45+2xfiber sending card | 104 million pixels | 166.4 million pixels |
| H_20xRJ45 sending card | 130 million pixels | 208 million pixels | |
| H_4xfiber sending card | 208 million pixels | 332.8 million pixels | |
| H_4xfiber sending card (enhanced) | 260 million pixels | 416 million pixels | |
| Electrical Specifications | Power connector |
100 to 240V~, 50/60Hz, 10A to 5A Notes: • The H15 comes with dual power supplies. Connect both power connectors when you use the device. • Two redundant power supplies are optional. For details, please refer to H_800W Power. |
|
| Max power consumption | 900 W | ||
| Operating Environment | Temperature | 0°C to 45°C | |
| Humidity | 0% RH to 80% RH, non-condensing | ||
| Storage Environment | Temperature | —10°C to +60°C | |
| Humidity | 0% RH to 95% RH, non-condensing | ||
| Physical Specifications | Dimensions | 482.6 mm × 683.0 mm × 533.0 mm | |
| Net weight | 41.1 kg (chassis) | ||
| Gross weight | 53.4 kg (chassis) | ||
