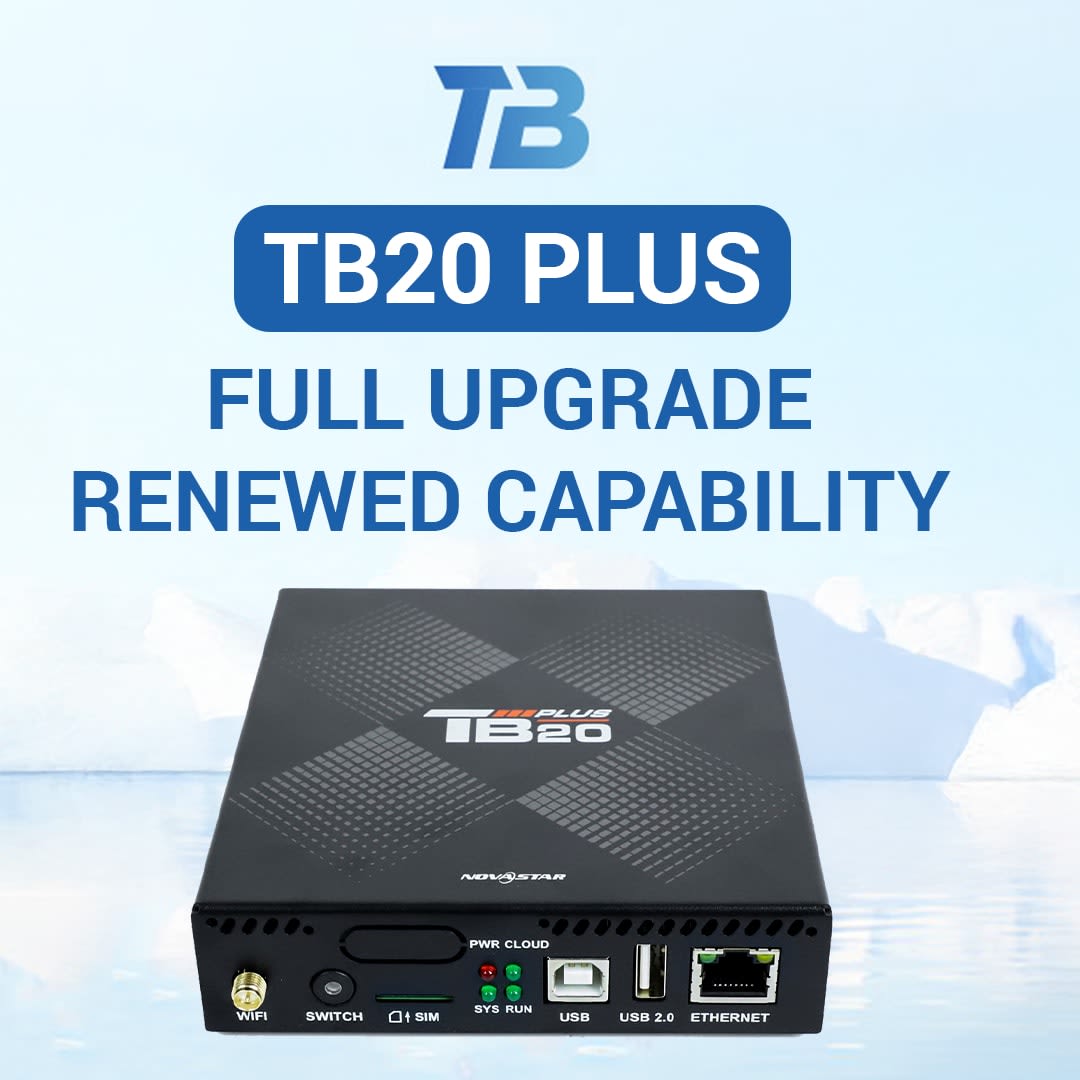

TB20 Plus LED Controller
The Novastar TB20 Plus, part of the Taurus Series offered by Jona LED, is a powerful and flexible multimedia LED controller designed for efficient management of LED video walls and digital signage networks. It combines media playback, storage, and LED display control into a single unit, making it ideal for medium-scale LED installations such as retail chains, commercial advertising screens, and outdoor display systems.
With integrated Nova Cloud support, the TB20 Plus controller enables remote content management, real-time monitoring, and centralized control of multiple LED displays. It ensures smooth playback, stable signal transmission, and consistent performance across LED panels. Designed for continuous operation, it provides reliability and scalability for businesses managing multiple LED screens across different locations.
Its balanced performance and easy configuration make the Novastar TB20 Plus a dependable solution for modern LED display control systems in India, especially where flexibility and remote access are essential.
- Advanced multimedia LED controller with integrated playback system
- Supports Nova Cloud for remote control and monitoring
- Smooth content scheduling and real-time updates
- Suitable for medium-scale LED video wall installations
- Supports multiple media formats for flexible content delivery
- Ideal for retail chains, advertising networks, and digital signage systems
| TECHNICAL SPECIFICATION – FRONT PANEL | |
|---|---|
| Name | Description |
| WIFI | Wi-Fi antenna connector (2.4GHz Wi-Fi supported) |
| Reserved |
Sensor connector Connects to a light sensor or temperature and humidity sensor. |
| SWITCH |
Press the button to switch between synchronous and asynchronous mode. Solid green: Synchronous mode Off: Asynchronous mode |
| SIM |
SIM card slot Capable of preventing users from inserting a SIM card in the wrong orientation. |
| USB |
USB (Type B) port Connects to the control computer for content publishing and screen control. |
| USB 2.0 |
USB 2.0 (Type A) port for USB playback, firmware upgrade and storage expansion (up to 128 GB) Supported file systems: FAT32/NTFS USB drive capacity range: 2 GB to 128 GB The size of a single file must be greater than 0 KB and less than 4 GB. |
| ETHERNET |
Fast Ethernet port Standard RJ45 connector (with built-in LEDs) connecting to the control computer or connecting to a LAN or public network for content publishing and screen control. |
| REAR PANEL | ||
|---|---|---|
| Name | Description | |
| COM 2 | GPS antenna connector | |
| RESET |
Factory reset button Press and hold this button for 5s to reset the product to its factory settings. |
|
| AUDIO OUT |
3.5 mm audio output connector Note: Three-pole audio jacks can be connected. |
|
| HDMI IN |
1x HDMI 1.3 input connector Maximum input resolution: The pixel clock cannot exceed 164 MHz Maximum input: 2048×1024@60Hz HDCP 1.4 compliant, backwards compatible with HDCP 1.3 No support for interlaced signal input Support for custom resolutions: Custom width range: 64~2048 pixels (64×64@60Hz~2048×1024@60Hz) Custom height range: 64~2048 pixels (64×64@60Hz~1024×2048@60Hz) Note: The resolution of HDMI IN can be customized by changing the preset EDID, so the external source must support custom resolutions. In synchronous mode, HDMI is used as the video source and users can enable full-screen scaling to make the image fit the screen automatically. Requirements for full-screen scaling in synchronous mode: 64 pixels ≤ video source width ≤ 2048 pixels 64 pixels ≤ video source height ≤ 2048 pixels Maximum resolution: 2048×1024@60Hz Images can only be scaled down and cannot be scaled up. Note: The pixel width and height of the video source must be greater than or equal to the pixel width and height of the screen, respectively. |
|
| LED OUT |
Gigabit Ethernet output Standard RJ45 connector (with no built-in LEDs) |
|
| 12V– | Power input connector | |
| COM 1 | 4G antenna connector | |
| Electrical Parameters | Input voltage | DC 5 V to 12 V |
| Maximum power consumption | 15 W | |
| Storage Capacity | RAM | 2 GB |
| Internal storage | 32 GB | |
| Storage Environment | Temperature | -40°C to +80°C |
| Humidity | 5% RH to 95% RH, non-condensing | |
| Operating Environment | Temperature | -20°C to +60°C |
| Humidity | 5% RH to 85% RH, non-condensing | |
| Physical Specifications | Dimensions (L×W×H) | 141.2 mm × 120.0 mm × 33.5 mm |
| Net weight | 470.3 g | |
| Gross weight | 776.1 g | |
| Packing Information | Dimensions (L×W×H) | 333.0 mm × 196.0 mm × 70.0 mm |
| Accessories |
|
|
| IP Rating |
IP20 Please prevent the product from water intrusion and do not wet or wash the product. |
|
| System Software |
|
|
