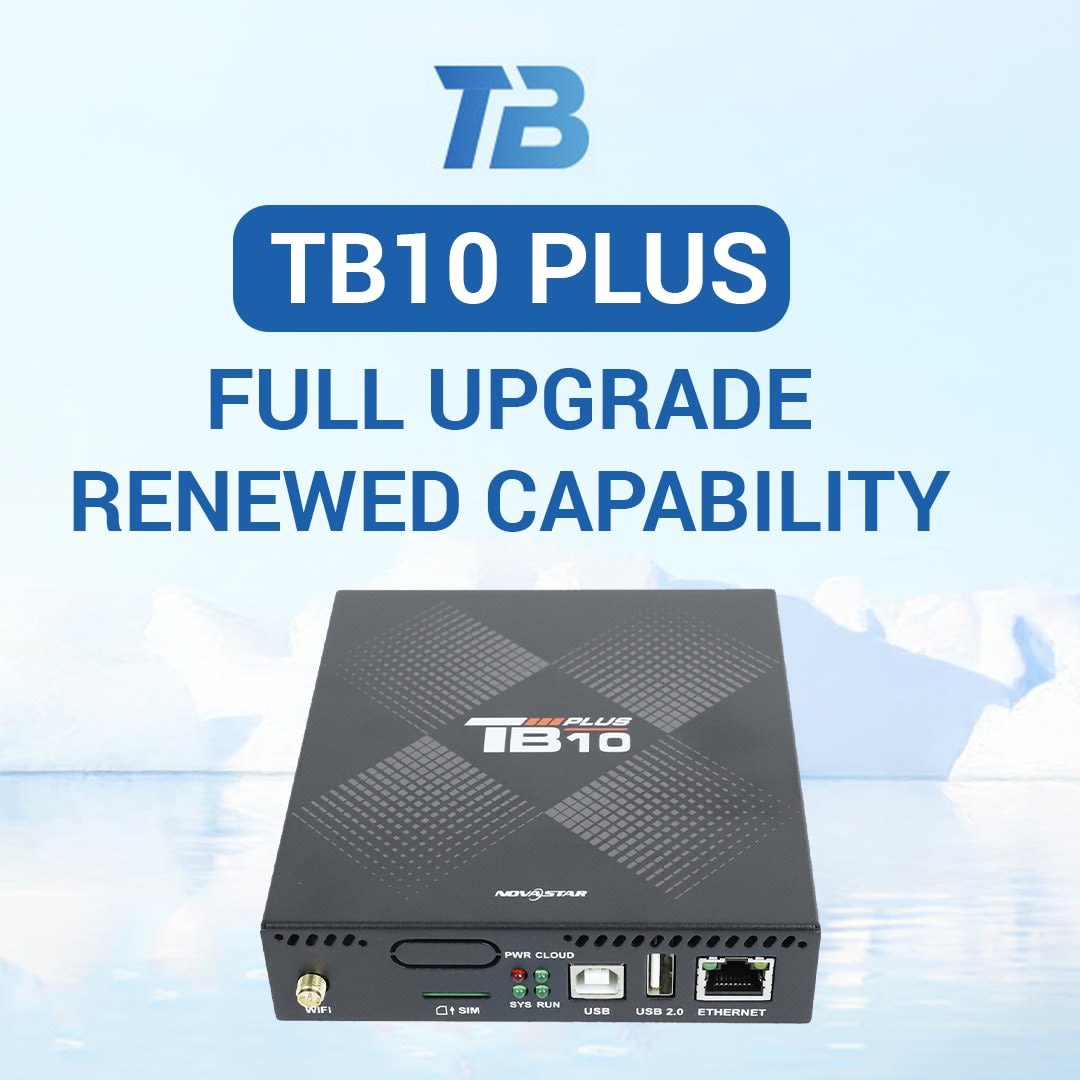

TB10 Plus LED Controller
The Novastar TB10 Plus, part of the Taurus Series available from Jona LED, is a compact and efficient multimedia LED controller designed for smart control of LED video walls and digital signage displays. It combines media playback, storage, and LED display control in a single device, making it ideal for retail screens, shop displays, and small advertising installations where simplicity and reliability are key.
With built-in Nova Cloud support, the TB10 Plus controller allows users to remotely manage content, schedule playback, and monitor LED display performance from any location. It ensures smooth content delivery and stable signal transmission across LED panels, reducing the need for manual on-site operation. Designed for continuous use, it offers a practical solution for businesses seeking efficient and scalable LED display control systems in India.
- Compact multimedia LED controller with integrated playback
- Supports Nova Cloud for remote content management
- Supports multiple media formats for flexible content delivery
- Easy setup with user-friendly control interface
- Reliable signal transmission across LED panels
- Ideal for retail displays, advertising screens, and digital signage systems
| TECHNICAL SPECIFICATION – Front Panel | |
|---|---|
| Name | Description |
| WIFI | Wi-Fi antenna connector (2.4GHz Wi-Fi supported) |
| Reserved |
Sensor connector Connects to a light sensor or temperature and humidity sensor. |
| SIM |
SIM card slot Capable of preventing users from inserting a SIM card in the wrong orientation. |
| USB |
USB (Type B) port Connects to the control computer for content publishing and screen control. |
| USB 2.0 |
USB 2.0 (Type A) port for USB playback, firmware upgrade and storage expansion (up to 128 GB) Supported file systems: FAT32/NTFS USB drive capacity range: 2 GB to 128 GB The size of a single file must be greater than 0 KB and less than 4 GB. |
| ETHERNET |
Fast Ethernet port Standard RJ45 connector (with built-in LEDs) connecting to the control computer or connecting to a LAN or public network for content publishing and screen control. |
| Rear Panel | ||
|---|---|---|
| Name | Description | |
| COM 2 | GPS antenna connector | |
| RESET |
Factory reset button Press and hold this button for 5s to reset the product to its factory settings. |
|
| AUDIO OUT |
3.5 mm audio output connector Note: Three-pole audio jacks can be connected. |
|
| LED OUT |
Gigabit Ethernet output Standard RJ45 connector (with no built-in LEDs) |
|
| 12V | Power input connector | |
| COM 1 | 4G antenna connector | |
| Electrical Parameters | Input voltage | DC 5 V to 12 V |
| Maximum power consumption | 15 W | |
| Storage Capacity | RAM | 2 GB |
| Internal storage | 32 GB | |
| Operating Environment | Temperature | -20°C to +60°C |
| Humidity | 5% RH to 85% RH, non-condensing | |
| Storage Environment | Temperature | -40°C to +80°C |
| Humidity | 5% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions (L×W×H) | 141.2 mm × 120.0 mm × 33.5 mm |
| Net weight | 465.6 g | |
| Gross weight | 771.2 g | |
| Packing Information | Dimensions (L×W×H) | 333.0 mm × 196.0 mm × 70.0 mm |
| Accessories |
|
|
| IP Rating |
IP20 Please prevent the product from water intrusion and do not wet or wash the product. |
|
| System Software |
|
|
