Multimedia LED Controller Pro
The Novastar Multimedia LED Controller Pro, available from Jona LED, is an advanced solution designed for high-performance LED display control, media processing, and multi-screen management. Built for large-scale LED video wall applications, it combines powerful processing with centralized control, making it ideal for advertising networks, control rooms, and commercial LED display installations that demand reliability and precision.
With enhanced performance capabilities, the Multimedia LED Controller Pro ensures seamless synchronization across multiple LED screens while delivering smooth content playback and stable signal transmission. It supports flexible configuration, allowing users to manage complex LED video wall systems efficiently. Whether used for indoor digital signage or large outdoor LED displays, it provides consistent output and dependable operation in demanding environments.
Designed for scalability and continuous operation, this controller is a reliable choice for businesses seeking professional-grade LED display control systems with improved performance and flexibility.
- Advanced multi LED display controller for large-scale installations
- Integrated media playback and centralized content management

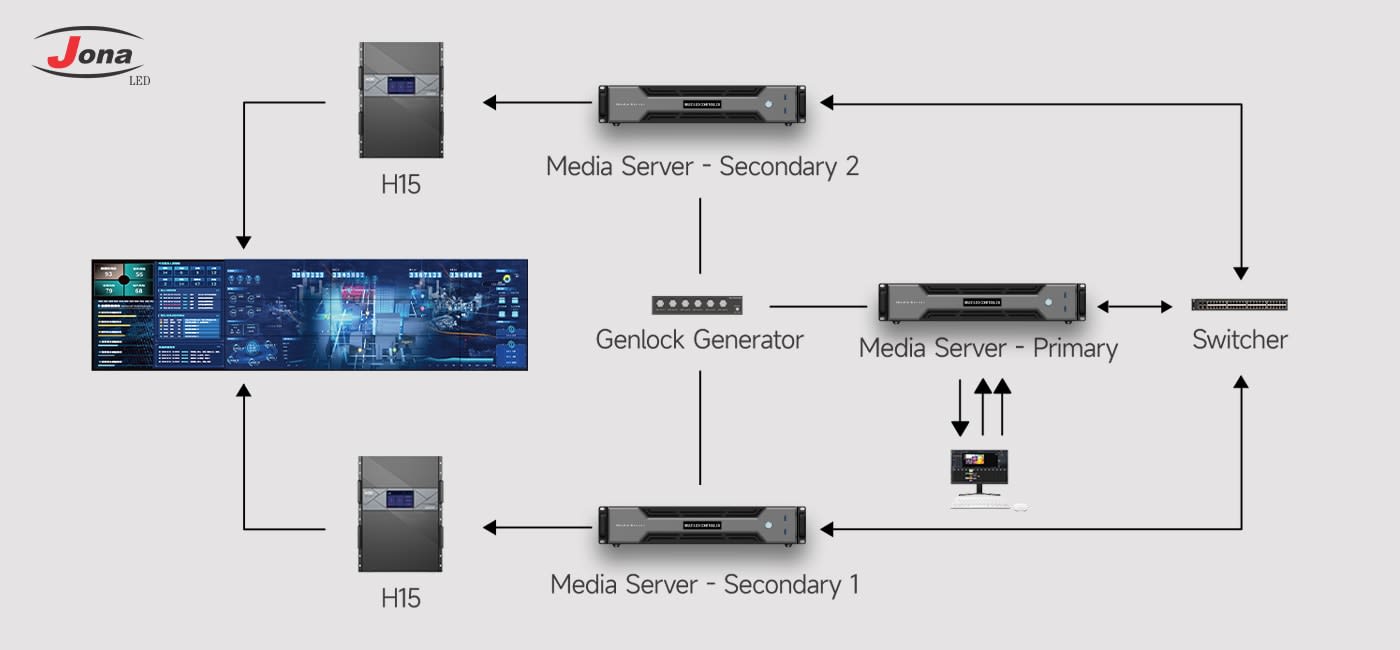

- Seamless synchronization across multiple LED video walls
- Enhanced processing for smooth and stable content playback
- Reliable signal transmission for consistent display performance
- Flexible configuration for complex LED display systems
| TECHNICAL SPECIFICATION | ||
|---|---|---|
| No. | Area | Description |
|
||
| 4 | USB |
|
| 5 | AUDIO |
|
| 6 | OUTPUT |
|
| Hardware / Software | ||
| Power supply | 400W ATX open-frame power supply | |
| CPU | 12th Generation Intel® Core Processor (i5-12400) | |
| Memory | 16 GB high-speed DDR4 | |
| Mainboard | ASUS B760M-A | |
| Storage | M.2 SSD 500 GB | |
| Keyboard & Mouse | Keyboard and mouse suit | |
| OS | Windows 10 Enterprise LTSC | |
| Build-in software | JONA MAPPING | |
| ELECTRICAL SPECIFICATILON | ||
|---|---|---|
| Electrical Specifications | Power connector | 100–240V~, 10A–5A, 60/50Hz |
| Power consumption | 400 W | |
| Operating Environment | Temperature | 0°C to 45°C |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Storage Environment | Temperature | –10°C to +60°C |
| Humidity | 0% RH to 95% RH, non-condensing | |
| Physical Specifications | Dimensions | 482.6 mm × 94.6 mm × 581.1 mm |
| Net weight | 10 kg | |
| Packing Information | Packing box | 720 mm × 595 mm × 215 mm |
| Accessories |
1x Power cable 2x HDMI cables 1x DP cable 1x Keyboard and mouse suit 1x Label (Windows product key included) 1x Safety Manual 1x Certificate of Approval |
