Multimedia LED Controller
The Novastar Multimedia LED Controller, offered by Jona LED, is a versatile solution designed for efficient LED display control, media playback, and content management across multiple LED video walls. Built for modern digital signage and commercial display environments, it combines media processing and control functions into a single system, making it ideal for retail networks, advertising screens, and large LED display installations that require synchronized performance.

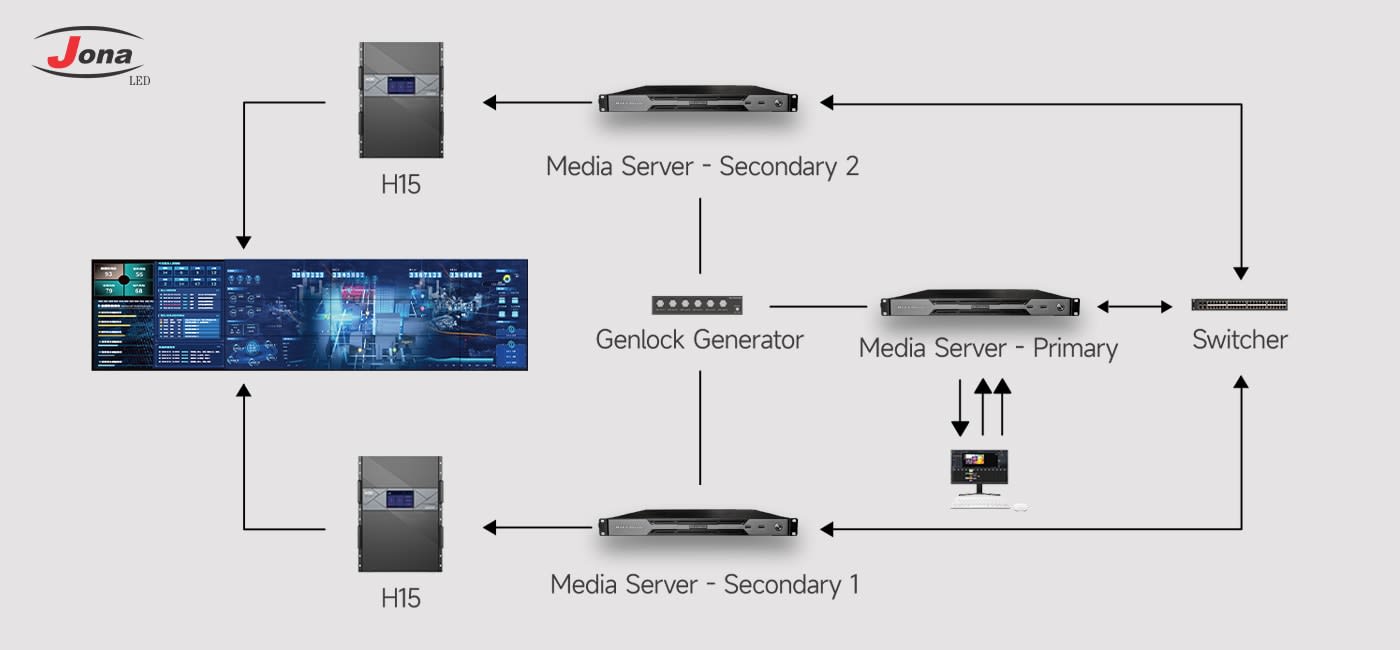

With advanced control capabilities, the multimedia LED controller enables centralized management of multiple LED screens, ensuring smooth content distribution and consistent display output. It supports flexible configuration and reliable signal transmission, allowing users to manage complex LED video wall setups with ease. Whether used for indoor digital signage or outdoor LED displays, it delivers stable performance and simplified operation for professional applications.
Designed for scalability and continuous use, this controller helps businesses maintain efficient and high-quality LED display control systems across various environments.
- Centralized multi LED display controller for managing multiple screens
- Integrated media playback and content management system
- Smooth content synchronization across LED video walls
- Flexible configuration for complex LED display setups
- User-friendly control interface for easy operation
- Suitable for indoor and outdoor LED display applications
| TECHNICAL SPECIFICATION | |||
|---|---|---|---|
| No. | Area | Qty. | Description |
| 1 | Power switch | 1 | Power on or power off the device. |
| 2 | HDMI 2.0 | 1 |
HDMI 2.0/1.3 connector can be switched via software. When set to HDMI 2.0, HDMI 1.3 connectors 2, 3, and 4 are unavailable. • Max output resolution: 4Kx2K@60Hz • Supported frame rates: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60 • Custom resolutions supported – Max width: 8192 pixels – Max height: 4095 pixels • 8-bit output • Supported color space/sampling rate: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 • Supported color range: Full and Limited • Audio output: Max 24 bit depth for dual-channel • Sampling rate: 24 KHz, 44 KHz, 48 KHz (default) • HDCP supported • Status LEDs: – Green: Normal connection – Off: No connection or abnormal connection • EDID lock supported |
| 3 | CONTROL UI | 1 |
Connect to a monitor for displaying the software interface. • Max output resolution: 2Kx1K@60Hz • EDID lock supported |
| 4 | Power connector | 1 | Connect to an external power outlet for powering the device. |
| 5 | DP 1.2 | 1 |
• Max output resolution: 4Kx2K@60Hz • Supported frame rates: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60 • Custom resolutions supported – Max width: 8192 pixels – Max height: 4095 pixels • 8-bit output • Supported color space/sampling rate: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 • Supported color range: Full and Limited • Audio output: Max 24 bit depth for dual-channel • Adaptive sampling rates: 24 KHz, 44 KHz, 48 KHz (default) • HDCP supported • Status LEDs: – Green: Normal connection – Off: No connection or abnormal connection • EDID lock supported • Audio and video synchronization supported |
| 6 | HDMI 1.3 | 4 |
4x HDMI 1.3 together copy the DP 1.2 output content. • Max output resolution: 2Kx1K@60Hz • Supported frame rates: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60 • Four HDMI 1.3 connectors default to a 2×2 output • EDID settings supported (applied to all HDMI 1.3 connectors) – Width: 640 to 2048 pixels – Height: 480 to 1280 pixels • 8-bit output • Supported color space/sampling rate: RGB 4:4:4 • Supported RGB color range: Full and Limited • HDCP supported • Status LEDs: – Green: Normal connection – Off: No connection or abnormal connection • EDID lock supported • Audio output NOT supported |
| 7 | ETHERNET | 1 | 1x RJ45 Realtek 1Gb Ethernet port for networking |
| 8 | Audio | 2 |
1x MIC: 3.5 mm audio input connector 1x Line OUT: 3.5 mm audio output connector |
| 9 | USB | 4 | 4x Type-A USB 2.0 Connect to mouse, keyboard or USB drive. |
| Hardware/Software | |||
| Power supply | 120W open-frame power supply | ||
| CPU | AMD Ryzen 5th generation processor | ||
| Memory | 16 GB high-speed DDR4 | ||
| Mainboard | High-performance motherboard | ||
| Storage | High-speed SSD, 250 GB | ||
| Keyboard & Mouse | Keyboard and mouse suit | ||
| OS | Windows 10 Enterprise LTSC | ||
| Built-in software | Jona Mapping | ||
| ELECTRICAL SPECIFICATION | |||
|---|---|---|---|
| Electrical Specifications | Power connector | 100–240V~, 60/50Hz | |
| Power consumption | 80 W | ||
| Operating Environment | Temperature | 0°C to 45°C | |
| Humidity | 0% RH to 80% RH, non-condensing | ||
| Storage Environment | Temperature | -10°C to +60°C | |
| Humidity | 0% RH to 95% RH, non-condensing | ||
| Physical Specifications | Dimensions | 482.6 mm × 43.6 mm × 400 mm | |
| Net weight | 5.2 kg | ||
| Packing Information | Packing box | 565 mm × 510 mm × 175 mm | |
| Accessories |
|
||
