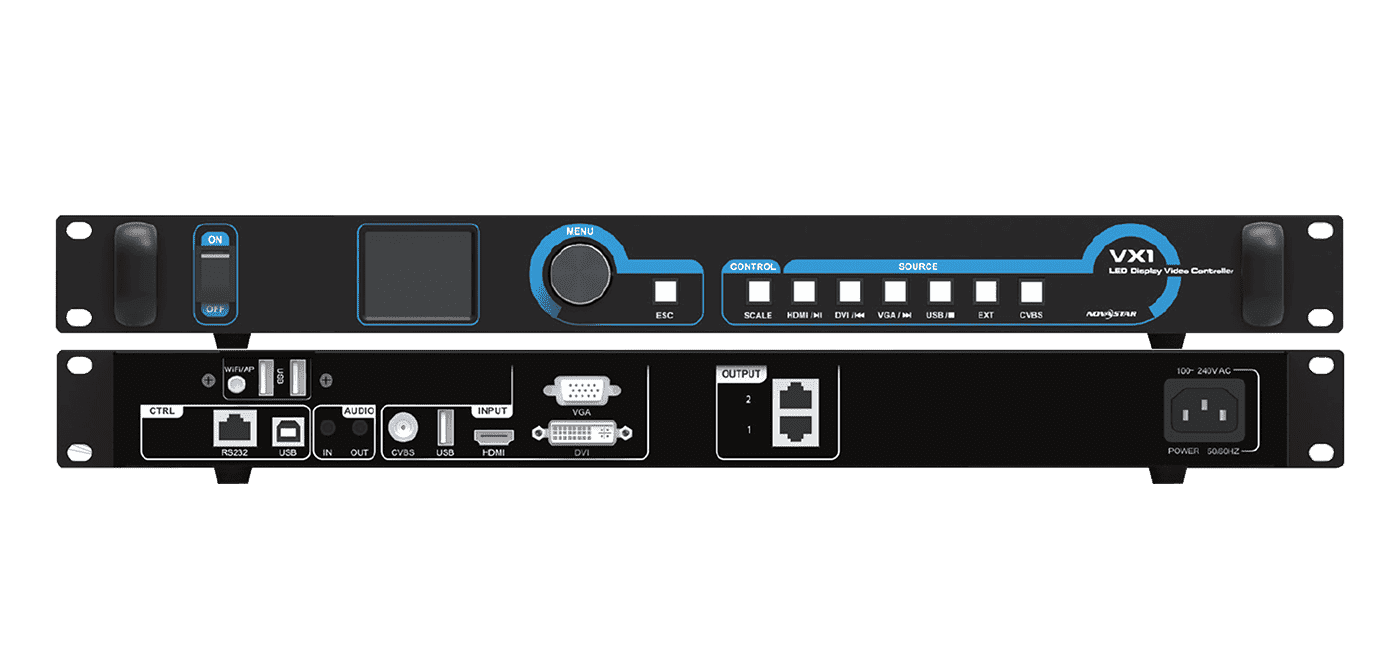

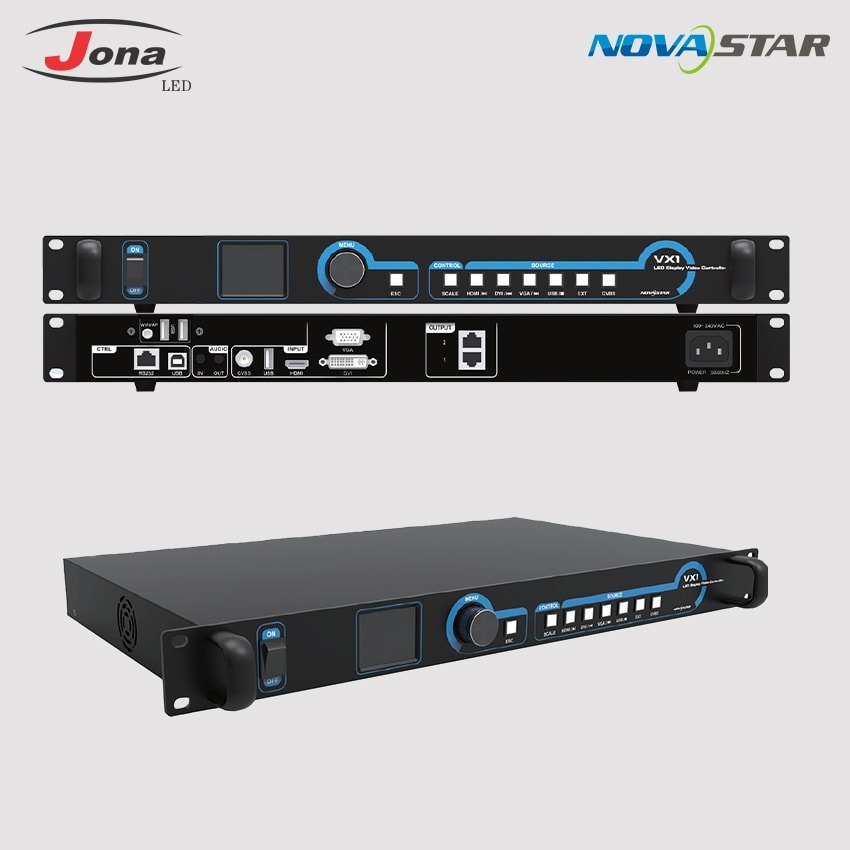

VX1 LED Display Controller
The Novastar VX1, part of the all-in-one controller series offered by Jona LED, is a compact and efficient LED display video controller designed for seamless operation of LED video walls. Combining the functions of a video processor and LED controller, the VX1 simplifies system setup while delivering stable performance. It is widely used for indoor LED displays, retail signage, and small to medium-sized installations where reliability and ease of use are essential.
The VX1 processor supports multiple input sources and ensures smooth image scaling with consistent color output across LED panels. With user-friendly configuration through Novastar software, it allows quick setup and efficient control of LED screens. Whether used for advertising displays or event setups, the Novastar VX1 controller provides dependable performance for professional LED display applications.
- Integrated all-in-one LED controller and video processor
- Supports multiple input signals for flexible connectivity
- Smooth image scaling for clear LED video wall output
- Compact design ideal for small and medium installations
- Reliable performance for continuous LED display operation
- Suitable for retail displays, events, and digital signage systems
| Input | ||
|---|---|---|
| Connector | Quantity | Description |
| DVI-D | 1 | 1920×1080@60Hz and other VESA standard video inputs, downward compatible |
| HDMI | 1 | HDMI 1.3 Up to 1920×1080@60Hz video inputs, downward compatible HDCP 1.4 |
| VGA | 1 | Up to 1920×1080@60Hz video inputs, downward compatible |
| CVBS | 1 | PAL/NTSC standard video inputs |
| USB(Type A) | 1 | Playback of files in USB drive
Video coding: MPEG-1, MPEG-2, MPEG-4, Sorenson H263、H.264, HEVC (H.265), RV8/9/10 and RV40 Audio coding: MPEG-1, MPEG-2 (Layer I/II), AAC- LC, HE-AAC, FLAC, PCM and Vorbis |
| AUDIO | 2 | Audio input and output connectors |
| Output | ||
| Connector | Qty | Description |
| Ethernet | 2 | Ethernet output ports for connecting receiving card |
| Control | ||
| connector | Qty | Description |
| Ethernet (RS232) | 1 | For connection with the central control device |
| USB (Type B) | 1 | For device program update |
| Overall Specifications | ||
| Connector | Qty | Description |
| Power connector | 1 | AC100V~240V 50/60Hz |
| Overall power consumption | 12 W | |
| Dimensions | 482.6 mm × 300.2 mm × 44.4 mm | |
| Weight | 2810 g | |
