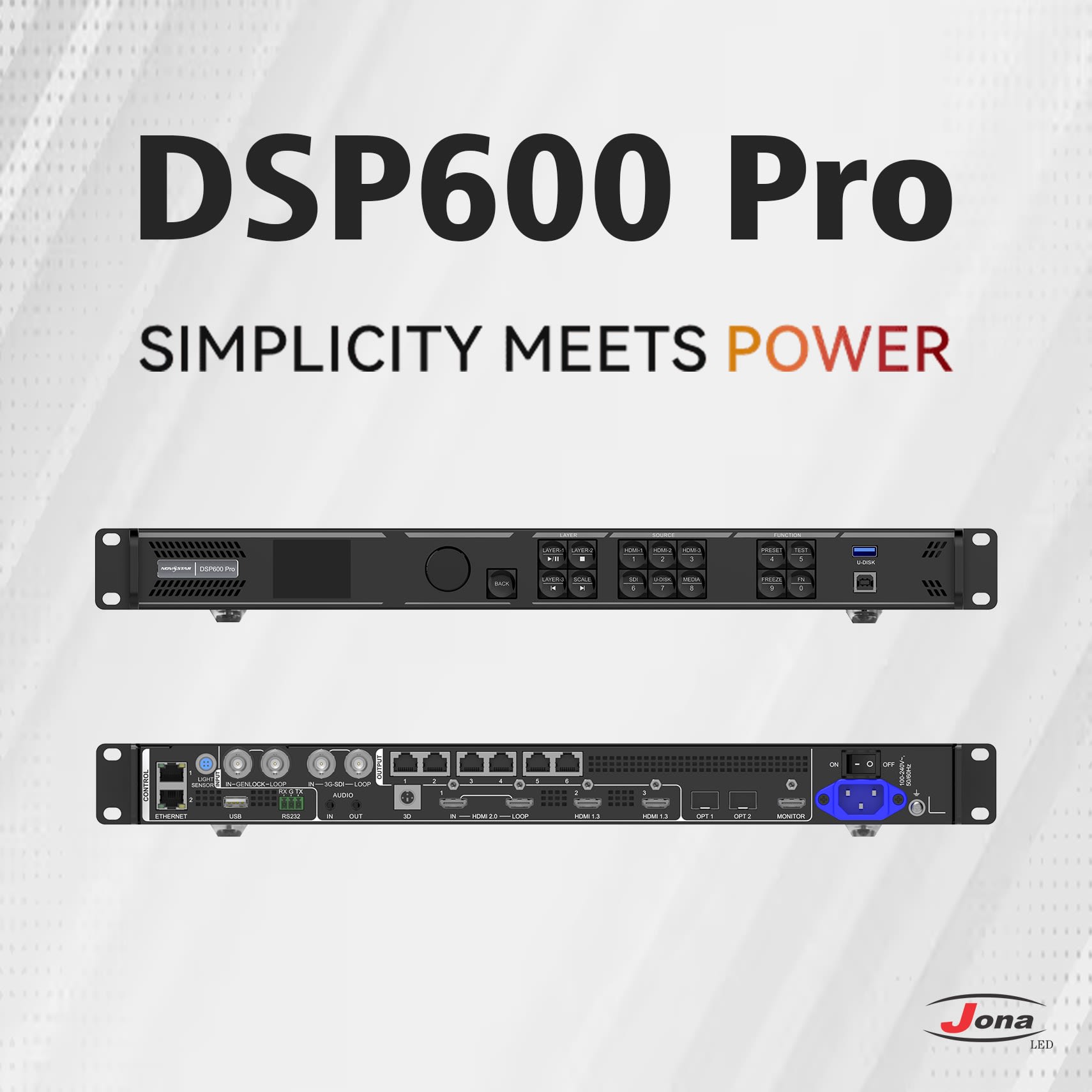

DSP600 Pro LED Controller
The Novastar DSP600 Pro, part of the all-in-one controller series from Jona LED, is a high-performance LED display controller and video processor built for smooth and reliable LED video wall operation. By combining video processing and control functions into one unit, it simplifies system setup while delivering stable performance. It is well-suited for medium to large LED displays used in digital signage, retail environments, and event installations.
The DSP600 Pro processor offers enhanced image processing with smooth scaling, accurate color reproduction, and consistent signal transmission across LED panels. Its flexible input options and easy configuration through Novastar control software make it efficient to manage complex display setups. Whether used for advertising screens or commercial LED video walls, the Novastar DSP600 Pro controller ensures dependable performance and professional display quality.
- Integrated all-in-one LED controller and video processor
- Enhanced image scaling for clear and sharp LED video wall output
- Stable signal transmission across medium to large LED displays
- Easy setup using Novastar control system software
- Durable design for continuous professional use
- Suitable for indoor LED displays and commercial applications
| Input Connectors | ||
|---|---|---|
| Connector | Qty | Description |
| HDMI 2.0 | 1 |
1x HDMI 2.0 – Max. input resolution: 4096×2160@60Hz – Supported frame rate: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60/70/71.93/72/75/85/100/119.88/120/144 – Compatible with HDMI 1.4 and HDMI 1.3 video inputs – HDMI 2.0-1 loop out supported – Custom resolutions supported – Max. width: 8192 pixels (8192×1080@60Hz) – Max. height: 8188 pixels (1080×8188@60Hz) – Supports 8-bit/10-bit/12-bit video inputs – Supported color space/sampling rate: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 – HDCP 1.4 and HDCP 2.2 supported – Accompanied audio support – Does not support interlaced signal inputs |
| HDMI 1.3 | 2 |
2x HDMI 1.3 – Max. input resolution: 1920×1080@60Hz – Supported frame rate: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60/70/71.93/72/75/85/100/119.88/120 – Custom resolutions supported – Max. width: 2048 pixels (2048×1080@60Hz) – Max. height: 2048 pixels (1080×2048@60Hz) – Supports 8-bit video inputs – HDCP 1.4 supported – Supported color space/sampling rate: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 – Accompanied audio support – Does not support interlaced signal inputs |
| 3G-SDI | 1 |
1x 3G-SDI – ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported – Supported protocols: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A and SMPTE 425M-B – Max. input resolution: 1920×1080@60Hz – 3G-SDI loop output supported – Deinterlacing processing supported – 10-bit video inputs supported – Does not support input resolution and bit depth settings |
| Output Connectors | ||
| Ethernet ports | 6 |
– Max. loading capacity: 3.9 million pixels – Max. width: 10,240 pixels, max. height: 8192 pixels – A single port loading capacity: 650,000 pixels (input bit depth: 8bit) – Supported frame rate: 23.98/24/25/29.97/30/47/48/50/59.94/60/71.93/72/75/85/95/100/119.88/120/144 |
| OPT | 2 |
2x 10G optical fiber ports – OPT 1: Self-adaptive, either for video input or for output – OPT 2: For output with copy and backup modes or loop output – Modes: Input-output / Input-loop / Output – Single-mode twin-core optical module: ≤10 km – Multi-mode twin-core optical module: ≤300 m – Optical module not installed at factory |
| HDMI 1.3 | 1 |
For monitoring display Output resolution: 1920×1080@60Hz (fixed) |
| 3D | 1 |
1x 3D connector Connect the 3D emitter and use compatible 3D glasses Note: When 3D is enabled (Side-by-Side or Top-and-Bottom), output capacity is halved |
| Audio Connectors | ||

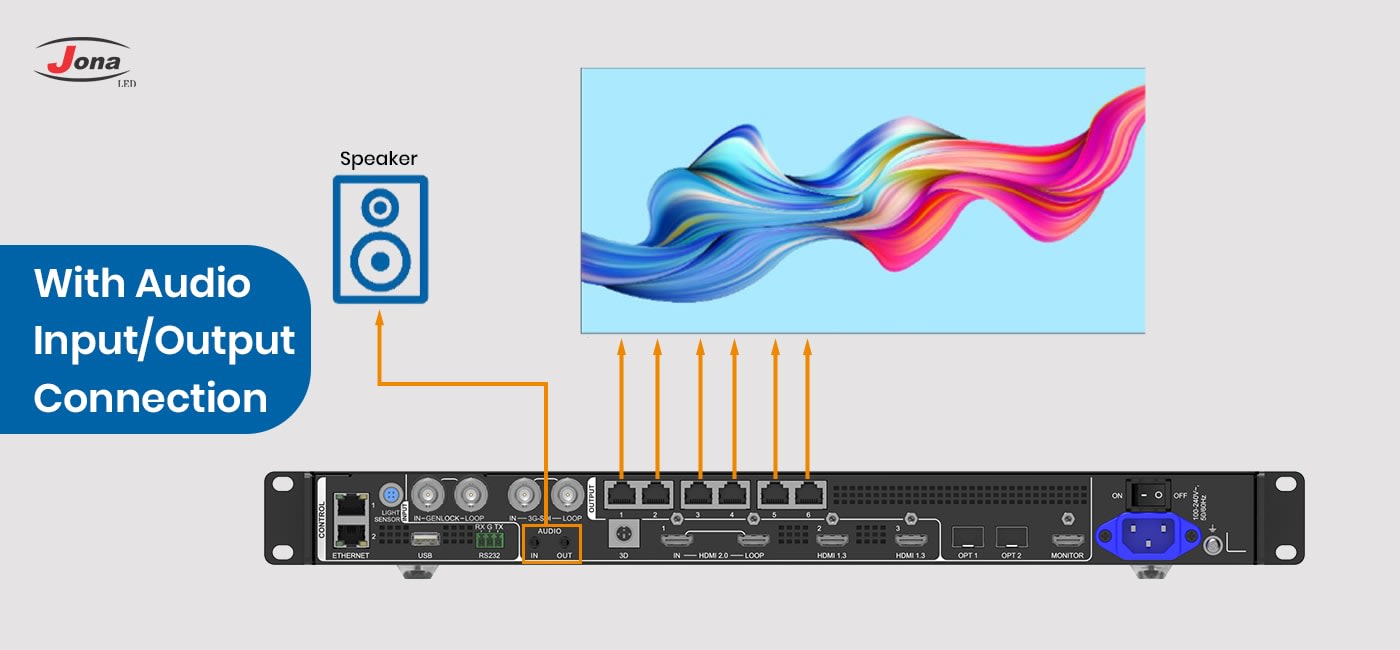

| AUDIO | 2 |
1x AUDIO input, 1x AUDIO output – 3.5 mm standard audio connectors – Audio sampling rate up to 48 kHz |
| Control Connectors | ||
| ETHERNET | 2 |
– Connect to PC for device control – Used for device cascading Status LEDs indicate connection and communication status |
| USB | 1 |
1x USB 2.0 – Firmware update via USB drive – Import/export device logs and EDID files |
| RS232 | 1 |
3-pin connectors – RX: Receive signals – TX: Send signals – G: Ground |
| GENLOCK IN-LOOP | 1 |
Connect to external sync signal (bi-level/tri-level) – IN: Accept sync signal – LOOP: Loop sync signal |
| LIGHT SENSOR | 1 | Connect to light sensor for ambient brightness collection and automatic screen brightness adjustment |
