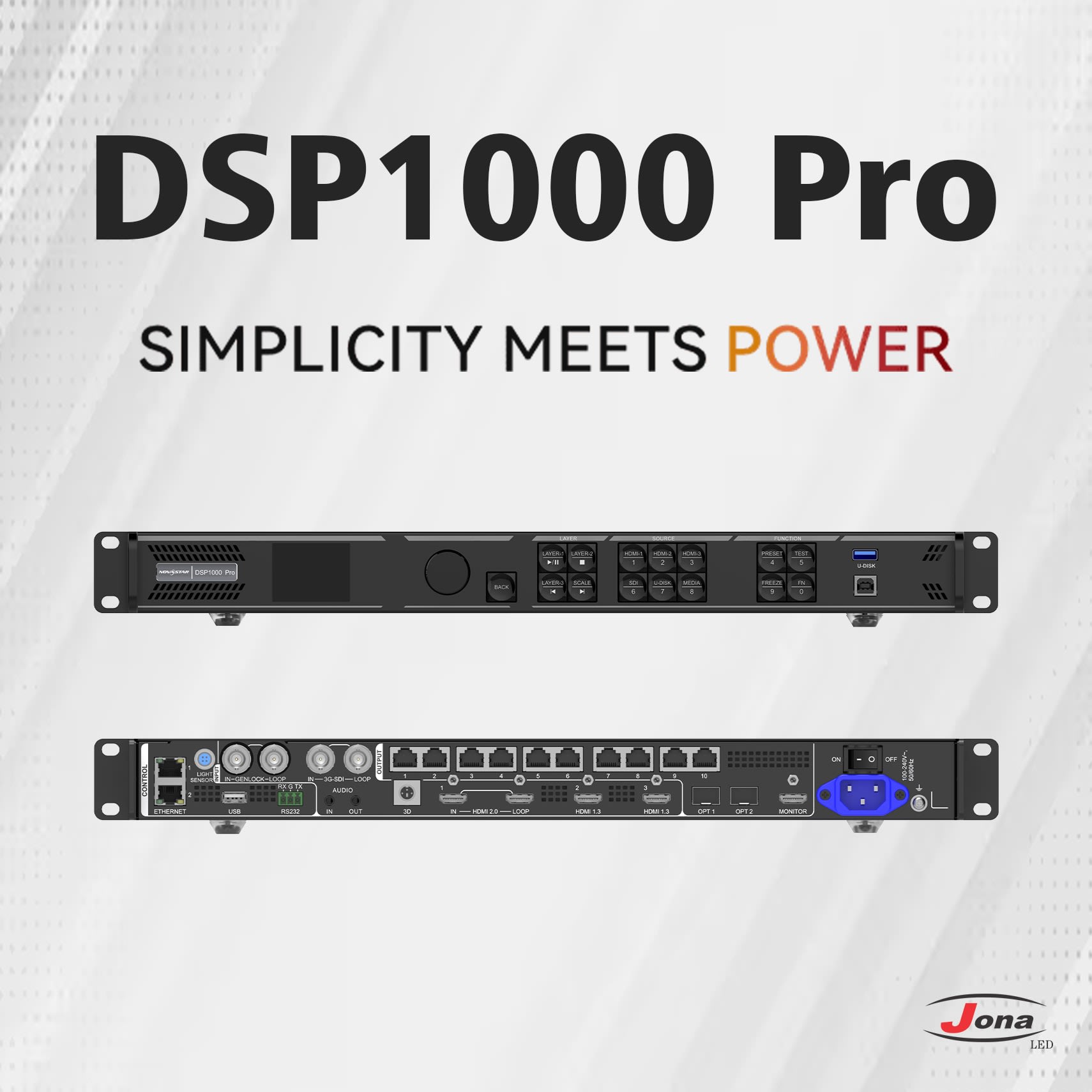

DSP1000 Pro LED Controller
The Novastar DSP1000 Pro, part of the all-in-one controller series offered by Jona LED, is a high-capacity LED display controller and video processor designed for large-scale LED video wall applications. By integrating processing and control into a single system, it reduces complexity while delivering stable and efficient performance. It is ideal for high-resolution LED displays used in events, control rooms, corporate setups, and large digital signage installations.
The DSP1000 Pro processor provides advanced image processing with smooth scaling, accurate color output, and reliable signal transmission across extensive LED panel configurations. With flexible input options and easy setup using Novastar control software, it allows users to manage complex LED display systems with confidence. The Novastar DSP1000 Pro controller is built for continuous operation, ensuring dependable performance in demanding professional environments.
- High-performance all-in-one LED controller and video processor
- Supports large-scale and high-resolution LED video wall setups
- Advanced image scaling and precise color reproduction
- Stable signal transmission for complex LED display systems
- Easy configuration with Novastar control system software
- Ideal for events, control rooms, and commercial LED installations
| Input Connectors | ||
|---|---|---|
| Connector | Qty | Description |
| HDMI 2.0 | 1 |
1x HDMI 2.0 – Max. input resolution: 4096×2160@60Hz – Supported frame rate: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60/70/71.93/72/75/85/100/119.88/120/144 – Compatible with HDMI 1.4 and HDMI 1.3 video inputs – HDMI 2.0-1 loop out supported – Custom resolutions supported – Max. width: 8192 pixels (8192×1080@60Hz) – Max. height: 8188 pixels (1080×8188@60Hz) – Supports 8-bit/10-bit/12-bit video inputs – Supported color space/sampling rate: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 – HDCP 1.4 and HDCP 2.2 supported – Accompanied audio support – Does not support interlaced signal inputs |
| HDMI 1.3 | 2 |
2x HDMI 1.3 – Max. input resolution: 1920×1080@60Hz – Supported frame rate: 23.98/24/25/29.97/30/47.95/48/50/56/59.94/60/70/71.93/72/75/85/100/119.88/120 – Custom resolutions supported – Max. width: 2048 pixels (2048×1080@60Hz) – Max. height: 2048 pixels (1080×2048@60Hz) – Supports 8-bit video inputs – HDCP 1.4 supported – Supported color space/sampling rate: RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 – Accompanied audio support – Does not support interlaced signal inputs |
| 3G-SDI | 1 |
1x 3G-SDI – ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported – Supported protocols: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A and SMPTE 425M-B – Max. input resolution: 1920×1080@60Hz – 3G-SDI loop output supported – Deinterlacing processing supported – 10-bit video inputs supported – Does not support input resolution and bit depth settings |
| Output Connectors | ||
| Ethernet ports | 10 |
– Max. loading capacity: 6.5 million pixels – Max. width: 10,240 pixels, max. height: 8192 pixels – A single port loading capacity: 650,000 pixels (input bit depth: 8bit) – Supported frame rate: 23.98/24/25/29.97/30/47/48/50/59.94/60/71.93/72/75/85/95/100/119.88/120/144 |
| OPT | 2 |

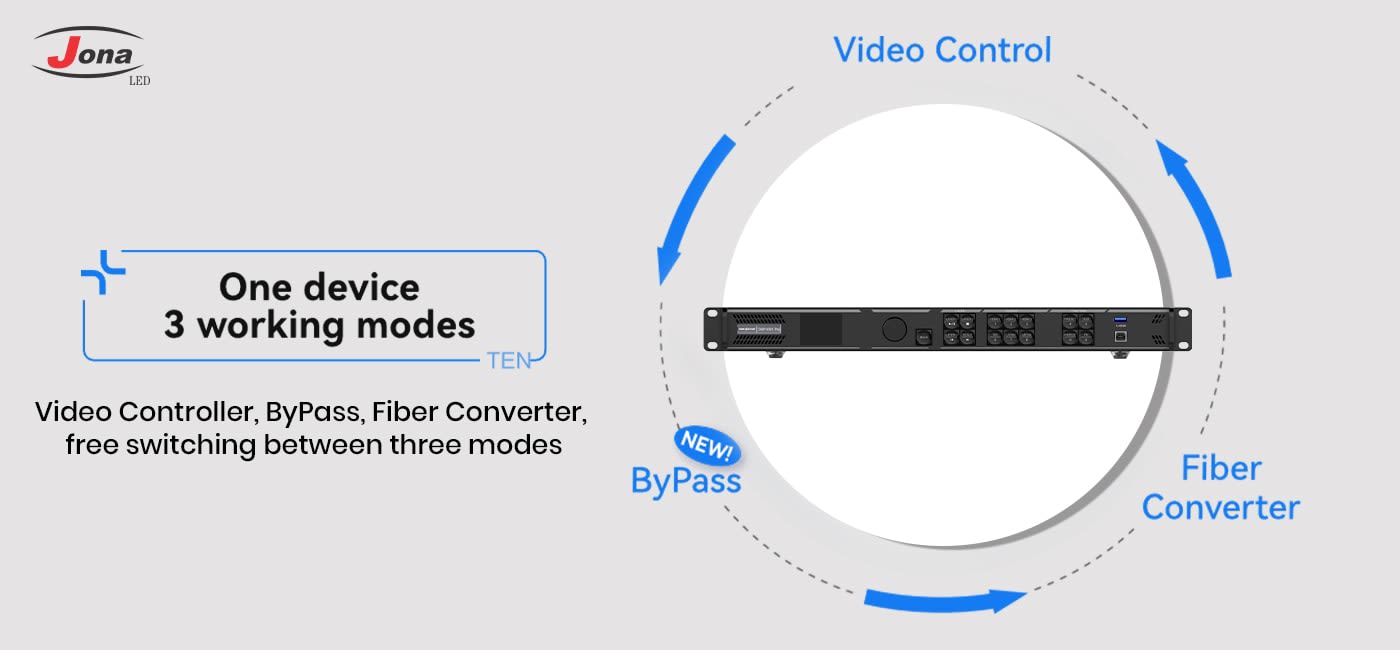

2x 10G optical fiber ports – OPT 1: Self-adaptive, either for video input or for output – OPT 2: For output with copy and backup modes or loop output – Supports the following three modes: – Input-output: OPT 1 for video input, while OPT 2 copies or backs up output on 10 Ethernet ports – Input-loop: OPT 1 for video input, OPT 2 for loop output – Output: OPT 1 sends output on 10 Ethernet ports, while OPT 2 copies or backs up output on 10 Ethernet ports – Single-mode twin-core optical module: ≤10 km – Multi-mode twin-core optical module: ≤300 m The optical module is not installed at the factory. Please purchase and install it as needed. |
| HDMI 1.3 | 1 |
For monitoring display Output resolution: 1920×1080@60Hz (fixed) |
| 3D | 1 |
1x 3D connector Connect the 3D emitter and use compatible 3D glasses to enjoy a 3D visual experience. When the 3D function is enabled and the video source format is Side-by-Side or Top-and-Bottom, the device output capacity will be halved. |
| Audio Connectors | ||
| AUDIO | 2 |

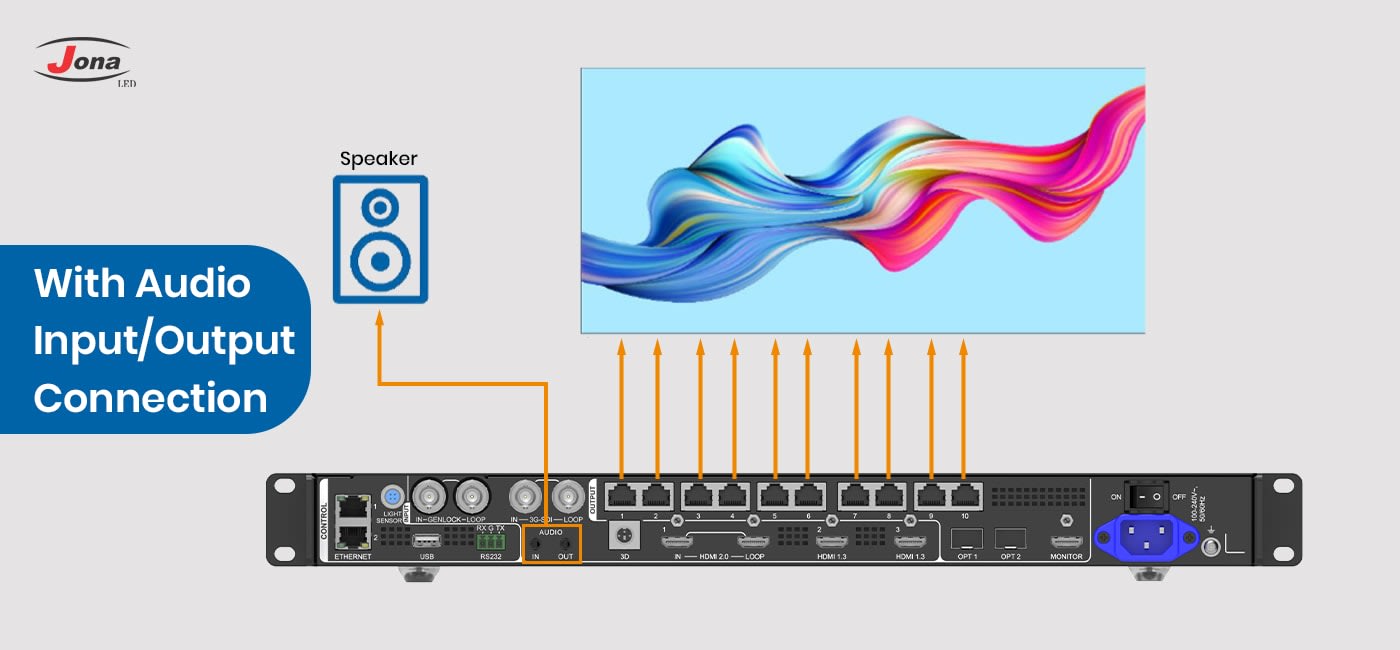

1x AUDIO input, 1x AUDIO output – 3.5 mm standard audio input and output connectors – Audio sampling rate up to 48 kHz |
| Control Connectors | ||
| ETHERNET | 2 |
– Connect to the PC and log into the Unico web page for device control. – Input or output connector for device cascading Status LEDs: – The top left one indicates the connection status. – On: The port is properly connected. – Flashing: The port is not properly connected, such as loose connection. – Off: The port is not connected. – The top right one indicates the communication status. – On: No data communication. – Flashing: The communication is good, and data is being transmitted. – Off: No data transmission |
| USB | 1 |
1x USB 2.0 – Update firmware via USB drive. – Import or export device logs and EDID files. |
| RS232 | 1 |
3-pin connectors – RX: Receive signals. – TX: Send signals. – G: Ground |
| GENLOCK IN-LOOP | 1 |
Connect to an external sync signal. Accepts bi-level and tri-level signals. – IN: Accept the sync signal. – LOOP: Loop the sync signal. |
| LIGHT SENSOR | 1 | Connect to a light sensor to collect ambient brightness, allowing for automatic screen brightness adjustment. |
