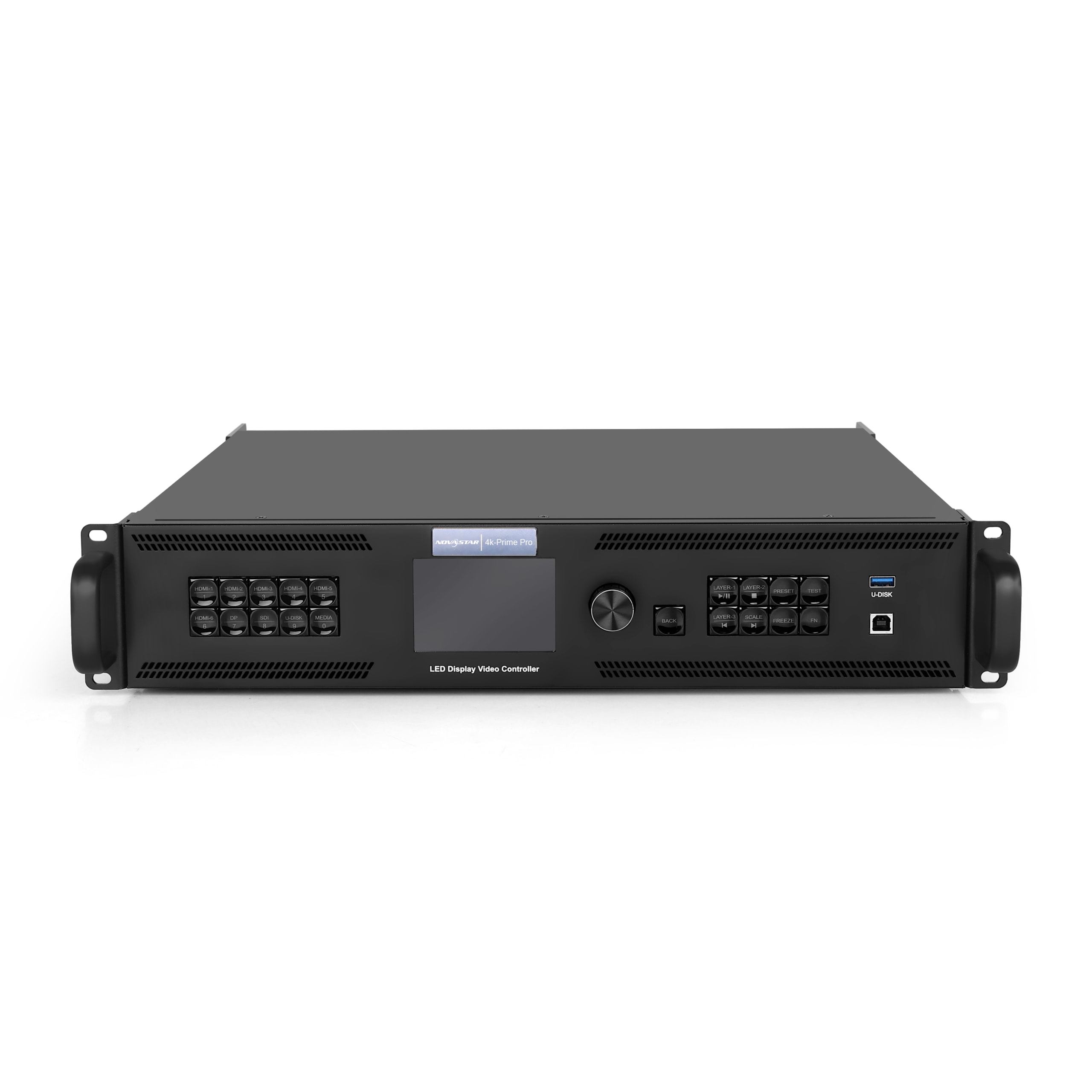

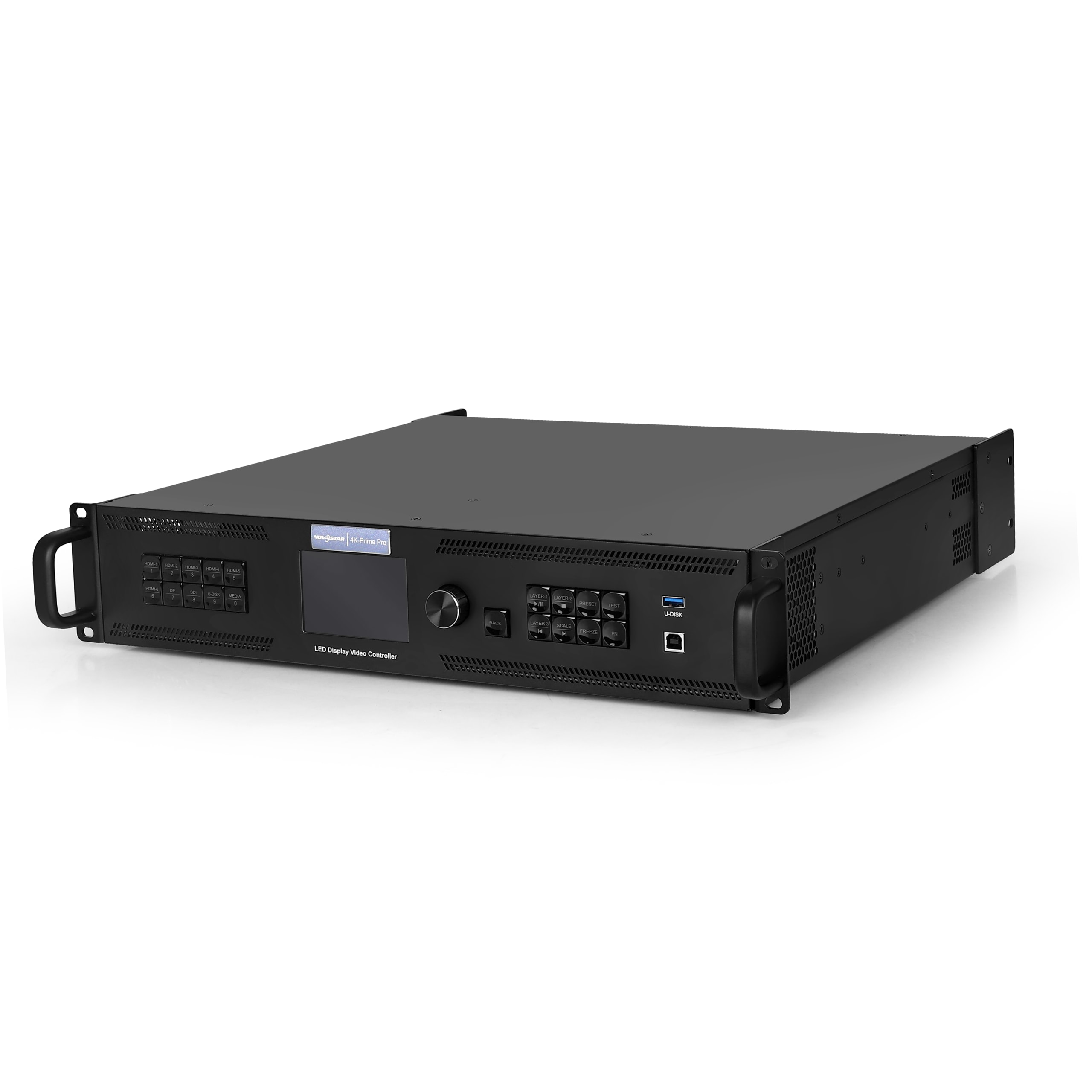

4K Prime Pro LED Controller
The Novastar 4K Prime Pro, part of the all-in-one controller series offered by Jona LED, is a premium LED display controller and 4K video processor designed for ultra-high-resolution LED video wall applications. It combines advanced video processing and display control in a single system, making it ideal for broadcast studios, corporate environments, and large-scale LED installations where image clarity and performance are critical.
The 4K Prime Pro processor delivers exceptional visual output with precise image scaling, enhanced color accuracy, and stable signal transmission across LED panels. It supports high-resolution input, ensuring smooth and detailed content display for professional applications. With easy configuration through Novastar control software, the Novastar 4K Prime Pro controller provides reliable and efficient control for modern LED display systems.
- Advanced 4K LED video processor and all-in-one controller
- Supports ultra-high-resolution LED video wall applications
- Precise image scaling and superior color accuracy
- Flexible input options for high-quality content sources
- Easy setup using Novastar control system software
- Ideal for broadcast, events, and high-end LED display installations
| Input Connectors | |||
|---|---|---|---|
| Connector | Quantity | Description | |
| 3G-SDI | 1 | ST-424 (3G), ST-292 (HD) and ST-259 (SD) standard video inputs supported
Max. input resolution: 1920×1080@60Hz 3G-SDI loop output supported |
|
| HDMI 1.4 | 2 | Max. input resolution: 3840×1080@60Hz or 3840×2160@30Hz
− Max. width: 4092 pixels (4092×1136@60Hz) − Max. height: 3981 pixels (1060×3981@60Hz) |
|
| DVI (HDMI 1.4) | 2 | Max. input resolution: 3840×1080@60Hz or 3840×2160@30Hz | |
| Output Connectors | |||
| Connector | Qty | Description | |
| Ethernet ports | 10 | Gigabit Ethernet ports
Max. loading capacity: 6.5 million pixels Max. width: 10,240 pixels Max. height: 8192 pixels Ethernet ports 1 and 2 support audio output. When you use a multifunction card to parse the audio, be sure to connect the card to Ethernet port 1 or 2. |
|
| HDMI 1.3 | 1 | Support monitor and video output modes.
The output resolution is adjustable. |
|
| Control Connectors | |||
| Connector | Qty | Description | |
| ETHERNET | 1 | Connect to the control PC or router. | |
| USB | 2 | USB 2.0 (Type-B): Input connector for device cascading
USB 2.0 (Type-A): Output connector for device cascading |
|
| GENLOCK IN-LOOP | 1 | Connect to an external sync signal. Accepts bi-level and tri-level signals. IN: Accept the sync signal. LOOP: Loop the sync signal. |
|
| LIGHT SENSOR | 1 | Connect to a light sensor to collect the ambient brightness, allowing for automatic screen brightness adjustment. | |
| Electrical Parameters | Power connector | 100–240V~, 1.6A, 50/60Hz | |
| Rated power consumption | 28 W | ||
| Operating Environment | Temperature | 0°C to 45°C | |
| Humidity | 20% RH to 90% RH, non-condensing | ||
| Storage Environment | Temperature | –20°C to +70°C | |
| Humidity | 10% RH to 95% RH, non-condensing | ||
| Physical Specifications | Dimensions | 483.6 mm × 351.2 mm × 50.1 mm | |
| Net weight | 4 kg | ||
| Noise Level ( typical at 25°C/77°F) | 45 dB (A) | ||
