Jona Indoor Series LED
Jona LED Indoor Series – Rental Indoor LED Display is designed for professionals who need reliable, high-performance visuals in dynamic environments. Built with trusted Novastar control systems, this rental LED display ensures smooth signal processing, stable performance, and precise color reproduction. Its lightweight cabinet structure and modular design make it ideal for quick installation and dismantling, especially in events, exhibitions, stage setups, and corporate functions where time and flexibility matter.
Engineered for indoor LED video wall applications, this series delivers sharp image quality with fine pixel pitch, high refresh rates, and excellent grayscale performance. Whether used for live events, broadcast environments, or temporary installations, it maintains consistent brightness and seamless panel alignment. The Jona Indoor Rental LED Display combines durability with visual precision, making it a dependable solution for professionals seeking impactful and efficient LED display systems.
- Advanced Novastar LED control system integration
- Lightweight and easy-to-install rental LED cabinets
- High refresh rate for flicker-free visuals
- Fine pixel pitch for sharp indoor display clarity
- Seamless panel alignment for uniform LED video walls
- Excellent grayscale for smooth color transitions
| Parameter Model | Indoor P2.88 | Indoor P3.6 | Indoor P4.8 |
|---|---|---|---|
| LED Lamp | SMD1415 | SMD2020 | SMD2020 |
| Pixel Pitch | 2.88mm | 3.6mm | 4.8mm |
| Pixel Density | 120,562 pixels/m² | 77,160 pixels/m² | 43,402 pixels/m² |
| Pixels Per Panel | 40,000 pixels | 25,600 pixels | 14,400 pixels |
| Module Size | 288mm*288mm | 288mm*288mm | 288mm*288mm |
| Module Resolution | 100*100 dots | 80*80 dots | 60*60 dots |
| Panel Size | 576mm*576mm | 576mm*576mm | |
| Panel Resolution | 200*200 dots | 160*160 dots | 120*120 dots |
| Panel Weight | 9 KGS | 9 KGS | 9 KGS |
| Module Maintenance | Front/Rear | Front/Rear | Front/Rear |
| Curve | (Convex) -6°,-3°,0°,+3°,+6°(Concave) | (Convex) -6°,-3°,0°,+3°,+6°(Concave) | (Convex) -6°,-3°,0°,+3°,+6°(Concave) |
| Brightness | 1000 Nits | 800 Nits | 800 Nits |
| Aspect Ratio | 1:1 | 1:1 | 1:1 |
| Panel Area | 0.331776 ㎡ | 0.331776 ㎡ | 0.331776 ㎡ |
| Recommended Viewing Distance | ≥2.88M | ≥3.6M | ≥4.8M |
| Environment | Indoor | Indoor | Indoor |
| Protection level | IP31 | IP31 | IP31 |
| Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Control unit | Nova Star | Nova Star | Nova Star |
| Brightness Control | Software/Automatic | Software/Automatic | Software/Automatic |
| Color Temperature | 7500 K | 7500 K | 7500 K |
| Viewing Angle | Horizontal≥140°,Vertical ≥120° | Horizontal≥140°,Vertical ≥120° | Horizontal≥140°,Vertical ≥120° |
| Contrast Ratio | 8,000:1 | 8,000:1 | 8,000:1 |
| Input Power (Max) | ≤200W/pc | ≤200W/pc | ≤200W/pc |
| Input Power (Typical) | 150W/pc | 150W/pc | 150W/pc |
| Input Voltage | 220V | 220V | 220V |
| Scan Method | 1/25 | 1/20 | 1/20 |
| Refresh Rate | 3840@60 Hz | 3840@60 Hz | 3840@60 Hz |
| Video Frame Rate | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Input Power Frequency | 50~60 Hz | 50~60 Hz | 50~60 Hz |
| Mean fault free | ≥10,000 Hours | ≥10,000 Hours | ≥10,000 Hours |
| LED Life Time | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Operating Temperature | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ |
| Operating Humidity | 10-80% No Condensation | 10-80% No Condensation | 10-80% No Condensation |
| Standard Mounting Configuration | Hanging, Stacking | Hanging, Stacking | Hanging, Stacking |
LED displays are revolutionizing the way businesses operate and sold in today’s dynamic landscape
Ensures smooth visuals without flickering, making motion content look sharp and clear even during fast transitions and live video playback.
Uses reliable Kinglight LEDs that deliver consistent brightness, better color accuracy, and longer lifespan for dependable performance.
Built with a strong die-cast structure that provides durability, precise alignment, and easy installation for both fixed and rental LED setups.
Designed to be lightweight for quick handling and installation, reducing labor effort while maintaining strength and stability during long-term usage.

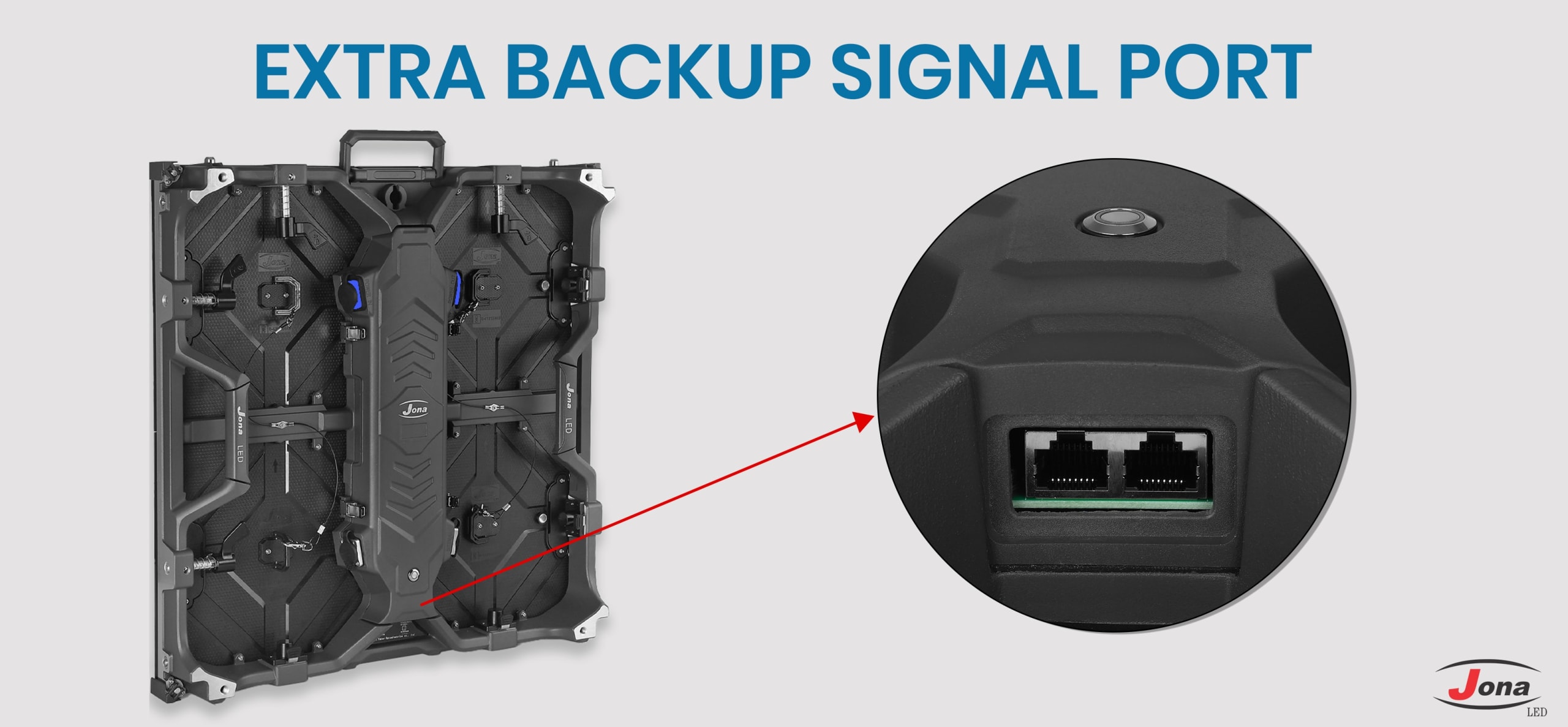

Includes a backup signal system that keeps the display running smoothly even if the main signal source fails during operation.
Features a universal hub design that simplifies maintenance, improves connectivity, and allows quick replacement of modules without complicated rewiring.
Equipped with a 4-layer PCB that enhances heat dissipation, improves stability, and ensures consistent performance during extended usage hours.

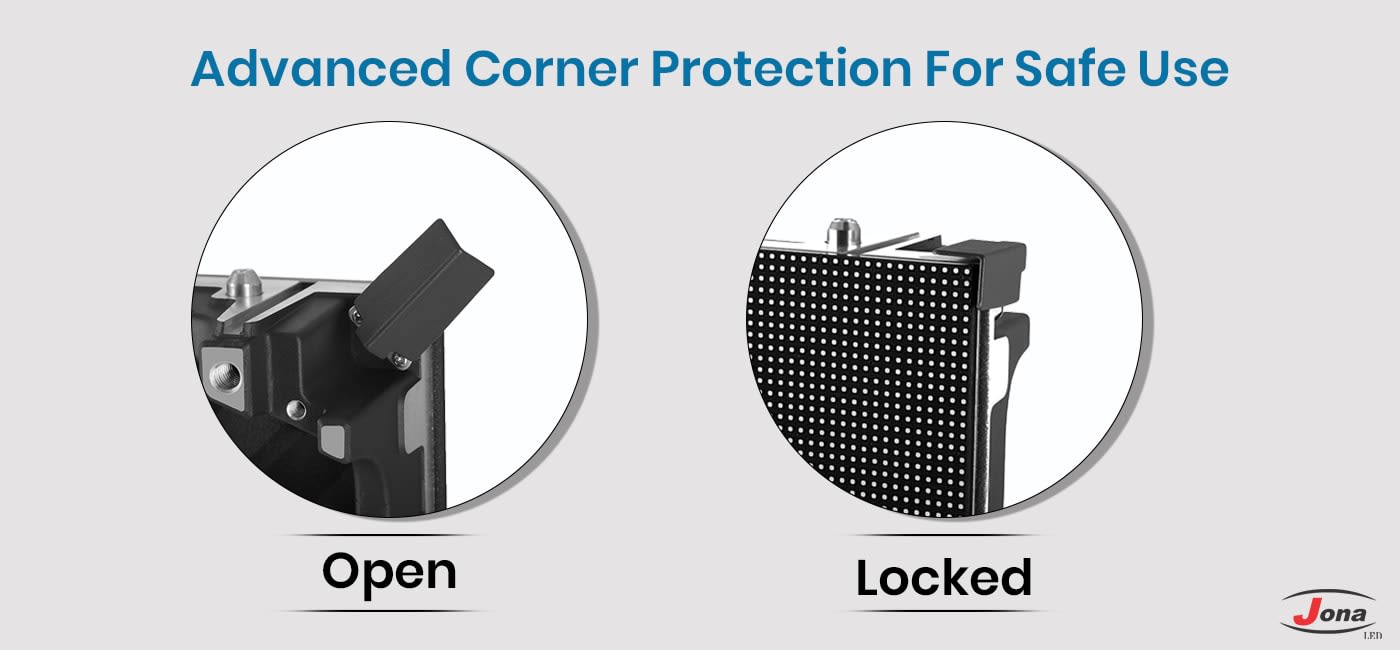

Comes with protective corners to prevent damage during transport and installation, helping maintain panel safety and long-term product reliability.
