JM Series LED
The JM Series Fixed Outdoor LED Video Wall is designed to deliver superior performance across diverse outdoor environments. Built with advanced LED display technology and precision engineering, it offers exceptional brightness, vibrant color accuracy, and crystal-clear visuals even in direct sunlight. Each panel is crafted for durability and aesthetics, featuring robust, weatherproof LED cabinets that withstand harsh conditions such as rain, heat, and dust. This makes it an ideal solution for outdoor advertising, digital billboards, stadium screens, and large-scale LED display installations.
Take your outdoor visual experience to the next level with the JM Series outdoor LED display. Featuring seamless panel integration, high refresh rates, and energy-efficient performance, it ensures consistent and impactful content delivery. Perfect for DOOH advertising, commercial LED screens, and public display systems, this LED video wall enhances visibility, audience engagement, and brand presence. Contact us today to unlock the full potential of your outdoor spaces with reliable and high-performance LED display solutions.
(Pixels: P 2.5, 3, 4, 5, 6, 8 & 10 mm)
- Streamlined Design
- Hassle-Free Maintenance
- Vibrant Visuals That Capture the moment
- Optimal Impact and Engagement
- Adaptability to fit any environment or purpose.
| Pixel Pitch | P2.5 mm | P3 mm | P4 mm | P5 mm | P6 mm | P8 mm | P10 mm |
|---|---|---|---|---|---|---|---|
| Pixel Density | 160000 pixel/m2 | 105625 pixel/m2 | 62500 pixel/m2 | 40000 pixel/m2 | 27777 pixel/m2 | 15625 pixel/m2 | 10000 pixel/m2 |
| Refresh frequency | ≥7680HZ | ||||||
| Module size | 320mm x 160mm | ||||||
| Module Resolution | 128*64 pixels | 104*52 pixels | 80*40 pixels | 64*32 pixels | 32*32 pixels | 40*20 pixels | 32*16 pixels |
| IP Rating | IP65/IP54 | ||||||
| Maintenance | Back | ||||||
| Cabinet Size | 960mm x 960mm | ||||||
| Cabinet Weight | 26 Kg/pc | ||||||
| Cabinet Material | Diecast | ||||||
| Contrast Ratio | 5000:1 | ||||||
| Brightness | 5500 Nits | 5500 Nits | 5500 Nits | 5500 Nits | 5500 Nits | 6000 Nits | 7000 Nits |
| Viewing Distance | 2 Meter | 3 Meter | 4 Meter | 5 Meter | 6 Meter | 8 Meter | 10 Meter |
| MTBF | 10000 Hours | ||||||
| Scan Rate | 1/16 Scanning, Contrast current |
1/13 Scanning, Contrast current |
1/10 Scanning, Contrast current |
1/10 Scanning, Contrast current |
1/8 Scanning, Contrast current |
1/5 Scanning, Contrast current |
1/2 Scanning, Contrast current |
| Power consumption | Max: 850 (W/sq.), Avg: 280 (W/sq.) | ||||||
| Viewing Angle | Horizontal:140, Vertical:160 |
Horizontal:140, Vertical:120 |
Horizontal:140, Vertical:120 |
Horizontal:140, Vertical:120 |
Horizontal:120, Vertical:120 |
Horizontal:120, Vertical:120 |
Horizontal:120, Vertical:120 |
| Humidity | 10% ~ 95% RH | ||||||
| Controller System | NOVASTAR | ||||||
| Controller Software | NOVA Studio | ||||||
| Input Voltage | AC 110V/50HZ OR AC220V/60HZ |
AC 110V/50HZ OR AC220V/60HZ |
AC 220V/50HZ OR AC240V/60HZ |
AC 220V/50HZ OR AC240V/60HZ |
AC 220V/50HZ OR AC240V/60HZ |
AC 220V/50HZ OR AC240V/60HZ |
AC 110V/50HZ OR AC220V/60HZ |
| IC | ICN2153 | ||||||
| Operating Temperature | Min -20 C ~ Max +65 C | ||||||
| Life Span | >100000 Hrs. | ||||||
| Grayscale | 16 bits | ||||||
LED displays are revolutionizing the way businesses operate and sold in today’s dynamic landscape
Delivers strong brightness output for clear visibility, ensuring content remains sharp and readable even under direct sunlight in outdoor display environments.
Provides wide viewing angles, allowing audiences to experience clear visuals from different directions without distortion or noticeable color shift.
Ensures seamless panel connection with minimal gaps, creating a smooth and continuous display surface for better visual consistency and presentation.
Optimized for energy efficiency, reducing power consumption while maintaining stable performance and brightness during long hours of outdoor operation.
Ensures smooth and flicker-free visuals, delivering clear motion performance and improved viewing experience during fast-moving outdoor video content.
Supports precise calibration for uniform brightness and color, ensuring consistent image quality across all panels in large outdoor display setups.

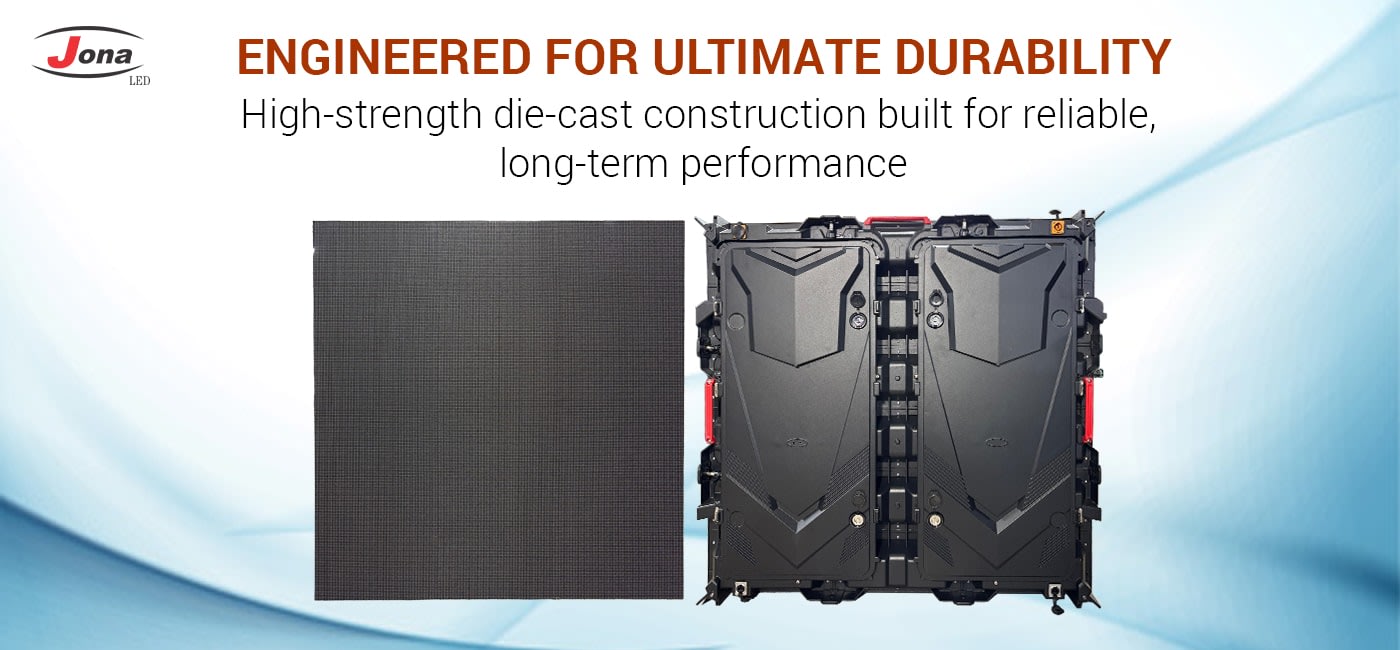

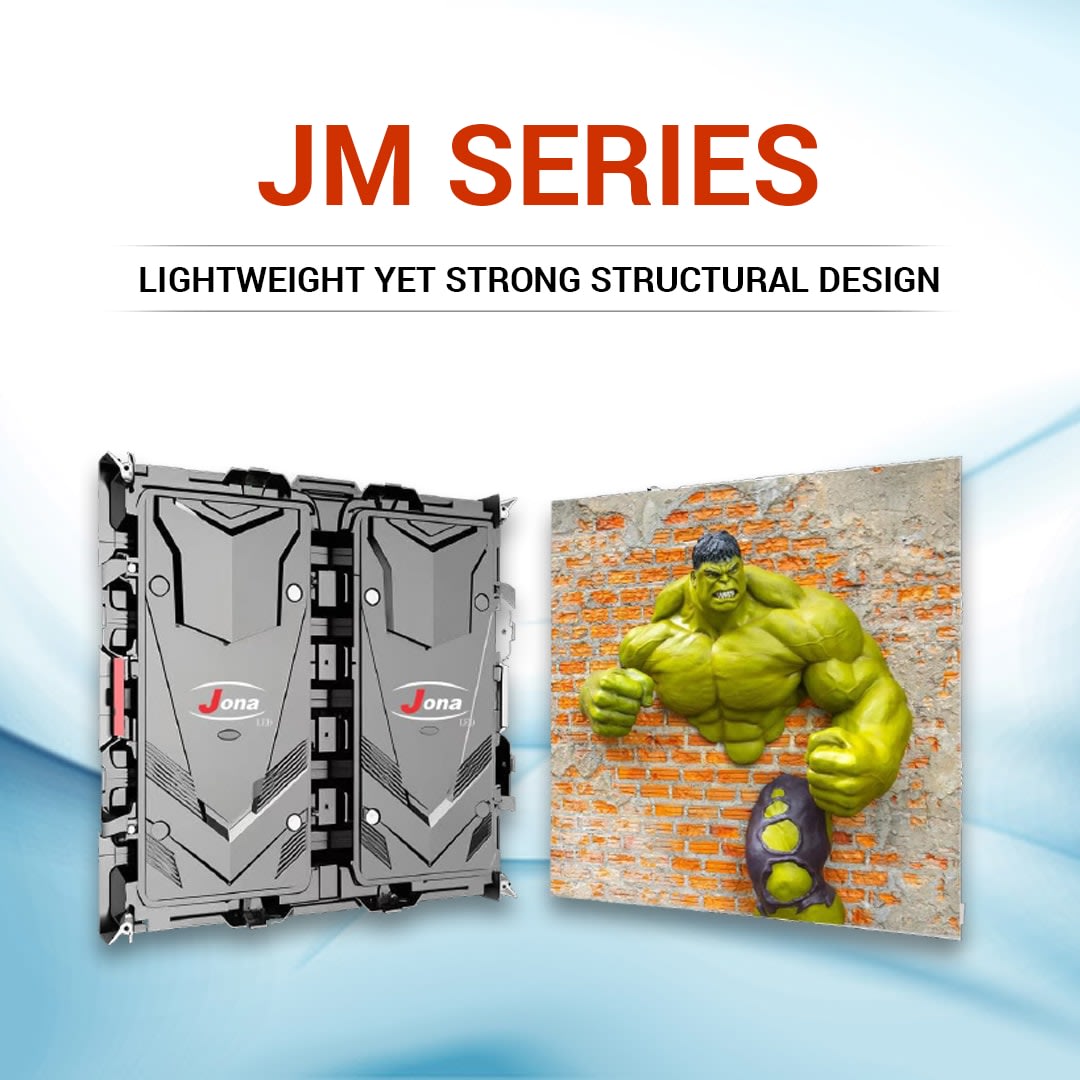

Built with a strong and durable cabinet structure, providing protection and stability for reliable performance in demanding outdoor installation conditions.
Designed for long operational life with durable components, reducing maintenance needs and maintaining consistent performance over extended outdoor usage periods.
WHY CHOOSE US?
Illuminating Your Vision with Unmatched LED Expertise
Our commitment to quality is unwavering. We craft LED displays that are renowned for their exceptional performance and longevity.
We stay at the forefront of LED technology, ensuring you have access to the latest innovations and features.
With a legacy of successful projects and satisfied clients, we bring a wealth of experience to every endeavor.
Our support extends beyond the sale. We’re here to assist you with any inquiries, technical support, and maintenance services.

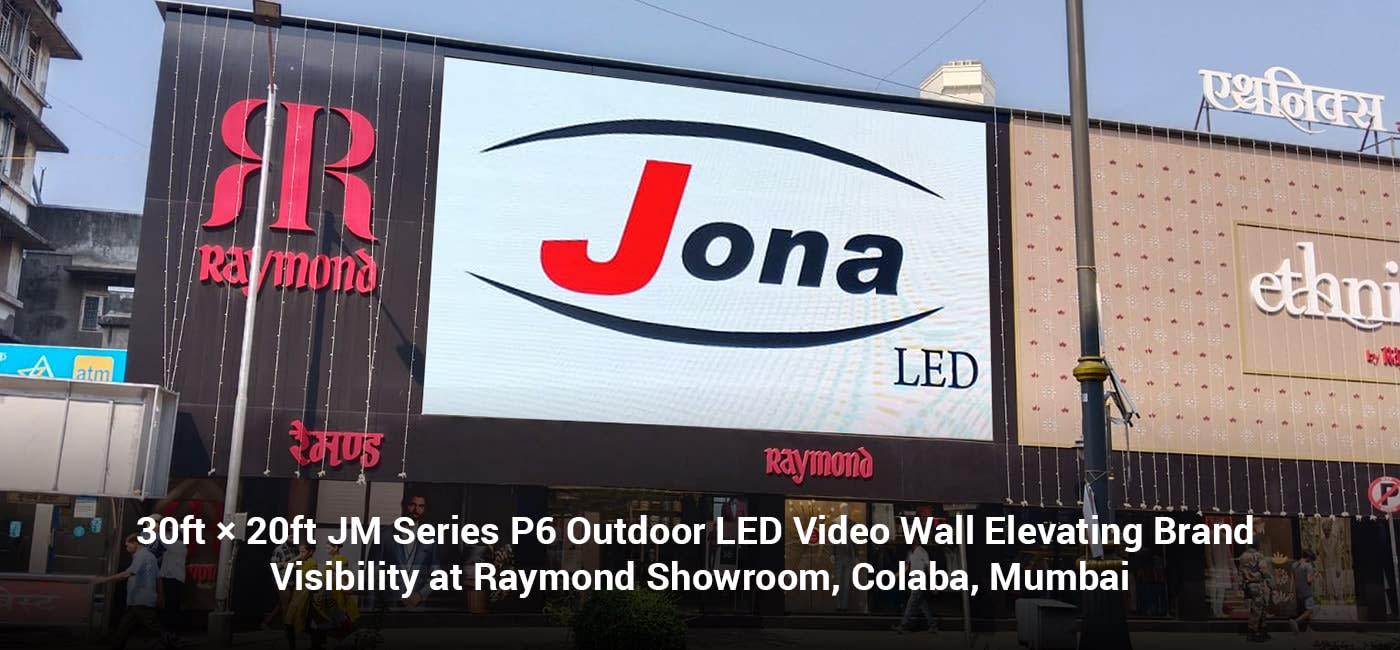

Latest work Implementations
