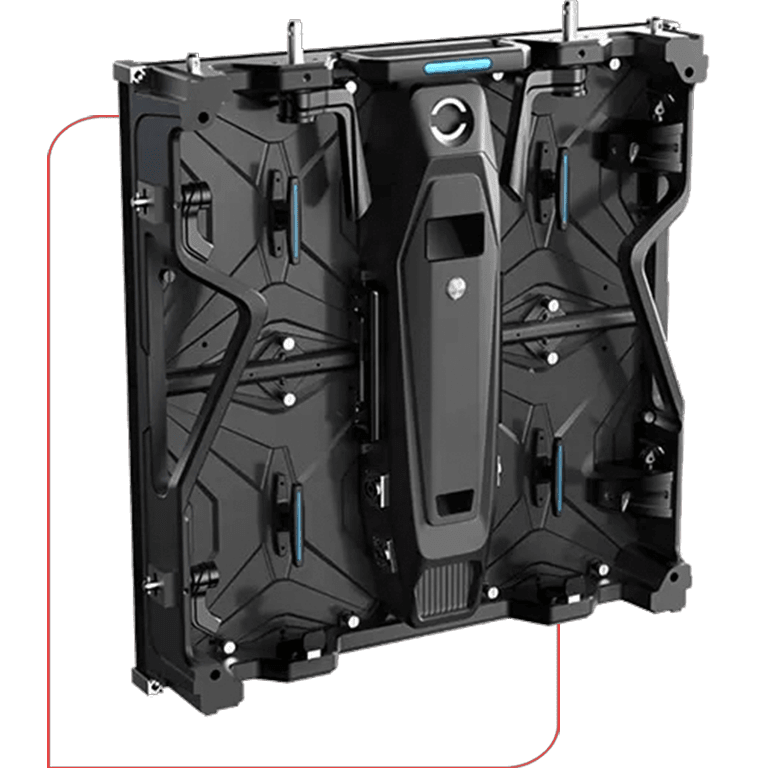

XR SMD Series Series LED
Standard cabinet size:600*337.5mm,16:9 aspect ratio. HD video and picture dot to dot matching. Free splicing into 2K/4K/8K. 27’ single cabinet size is for replacing 54’ and 108’ LCD display. Adopt 64 scan high refresh rate diving IC, smooth and delicate display performance. P1.8 LED Signage that offers an ideal combination of superior picture quality and intuitive usability and bringing people it’s best video picture.
- Cabinet size:600×337.5mm,16:9 aspect ratio.
- Floating connection design between module and cabinet, module could be fine-tuned.
- Support double backup of power supply and control system.
- Front access and front service, saving space and cost.
- Matching back frame installation option.
Technical | Item | P1.875 |
Pixel Pitch (mm) | 1.875 | |
LED Configuration | 1R1G1B | |
LED Type | SMD1515 | |
Physical Density (dot/m⊃2;) | 284,444 | |
Module Size (W ×H ×D) mm | 150×168.75 | |
Module Resolution (W ×H) | 80×90 | |
Cabinet Size (W ×H ×D) mm | 600×337.5 | |
Cabinet Material | Die Casting Aluminum | |
Scanning Mode | 1/30 | |
Cabinet Flatness (mm) | ≤0.10 | |
Optical | Grey Scale (Bit) | 14Bit+Control Software 2Bit=16Bit |
Protection Level | IP45 | |
Installation/Service Method | Front or back installation/Front service | |
Brightness (cd/㎡) | 800-1000cd/㎡ | |
Color Temperature | 3200-9300K adjustable | |
Brightness Uniformity | ≥98% | |
Color Uniformity | Within 0.003Cx, Cy | |
Horizontal/Vertical View Angle | ≥140°/≥120° | |
Contrast Ratio | ≥8000:1 | |
Color Calibration of Single Dot | Yes | |
Brightness Calibration of | Yes | |
Operation | Drive Mode | Constant Current Drive |
Module Input Voltage DC | 4.2V | |
Module Max Current DC | 4A | |
Refresh Frame Frequency | 50/60Hz | |
Max Refresh Rate | ≥3840Hz | |
Network Connection Port | RJ45 | |
Input Voltage AC | 110-220V | |
Cabinet Max Power | ≤600W /m2 | |
Cabinet Aver. Power | ≤200W/m2 | |
Working Temperature | -20℃~+80℃ | |
Working Humidity | 10%~95%RH |
