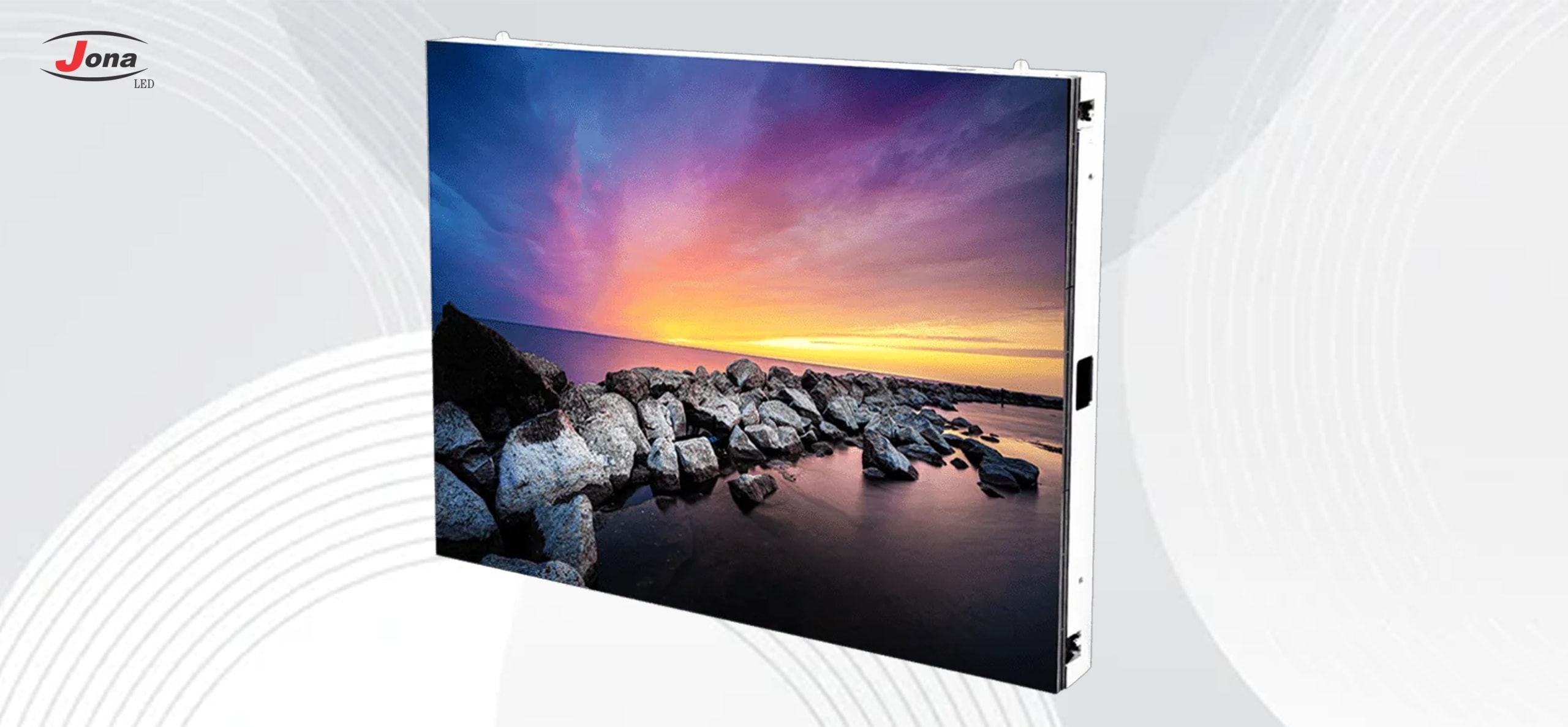

N Plus Series LED
Welcome to the future of indoor visual excellence – the newly launched N Plus Series for Indoor Fixed LED Video Walls. Our groundbreaking technology sets a new standard, delivering unmatched clarity, precision, and brilliance to transform your indoor spaces.
(Pixels: P1.2, 1.5, 1.6, 1.8, 2, 2.5 & 4 mm)
- Cabinet Size: 640 X480mm
- Crystal clear visuals
- Ultra High Contrast Ratio
- 16 Bits Precision Grey Scale
- Seamless Integration
- Immersive Experience
| Pixel Pitch | P1.2mm | P1.5mm | P1.8mm | P2.5mm | P4mm |
| Led | SMD1010 | SMD1010 | SMD1010 | SMD2020 | SMD2020 |
| Pixel Density | 409,600dots/m2 | 409,600dots/m2 | 295664 dots/ m2 | 160000 dots/M² | 62500 dots/M² |
| Pixel Configuration | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD | Commercial grade 3-in-1 SMD |
| Manual/Automatic | Front service of module | Front service of module | Front service of module | Front service of module | Front service of module |
| Cabinet Dimension & Resolut ion | 640mm x 480mm 533 px x 400px | 640mm x 480mm 416 px x 312px | 640mm x 480mm 344 px x 258px | 640mm x 480mm 256 px x 192px | 640mm x 480mm 160 px x 120px |
| Module Dimension | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm | 320mm x 160mm |
| Module Resolution | 266 dots x 133 dots | 208 dots x 104 dots | 172*86 dots | 160dots x 80 dots | 80dots x 40 dots |
| Viewing Distance | 1.2 Meter | 1.5 Meter | 1.8 Meter | 2.5 Meter | 4 Meter |
| Brightness | 800 cd/M² | 800 cd/M² | 900 cd/M² | 1000cd/M² | 1000cd/M² |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 | ≥7000:1 |
| Brightness uniformity | 99% | 99% | 99% | 99% | 99% |
| Color Temperature | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable | 3000 – 10000 K, adjustable |
| Refresh Rate | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ | 1920/3840 HZ |
| Scan Rate | 1/46 | 1/46 | 46023 | 46023 | 46023 |
| Controller System | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Controller Software | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR | NOVASTAR |
| Viewing Angle | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° | Horizontal ：160°, Vertical 160° |
| Temperature Range (-/+)C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° | 0 C° ~ 45 C° |
| Humidity | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 80 % RH | 10 % ~ 95 % RH | 10 % ~ 95 % RH |
| Life Span | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours | 100000 Hours |
| MTBF | 10000 Hours | 10000 Hours | 10000 Hours | AC110/220V , 50/60Hz | AC110/220V , 50/60Hz |
| Power Consumption | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs | Max : 500 w/Pcs , Average : 160 w/ Pcs |
| Certifications/ Regulatory | BIS , MSME, CE, FCC , UL , EMC , CB, ISO 9001:2015 , ISO 14001:2015, ISO 45001:2018, ISO27001:2013 | ||||
LED displays are revolutionizing the way businesses operate and succeed in today’s dynamic landscape

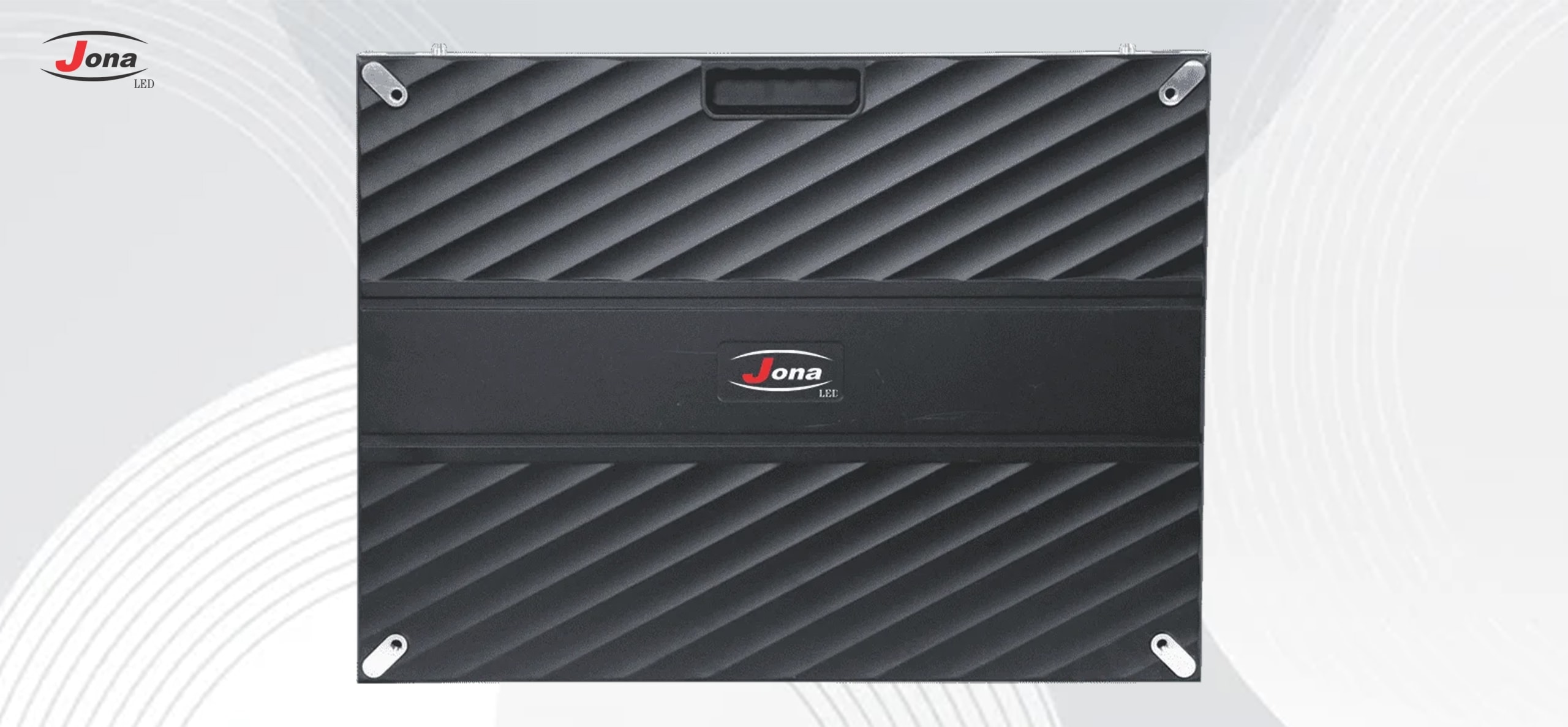

Die-casting aluminum panels that are incredibly thin simplify transportation and lower labor costs.

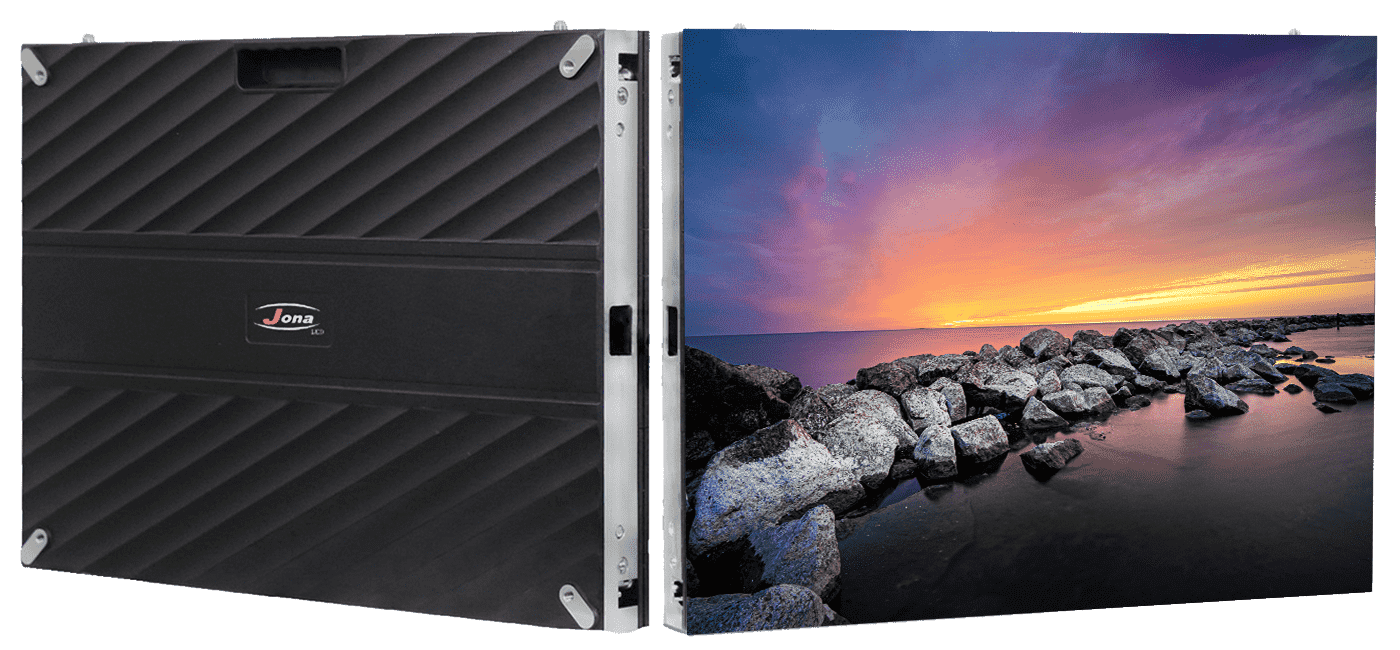

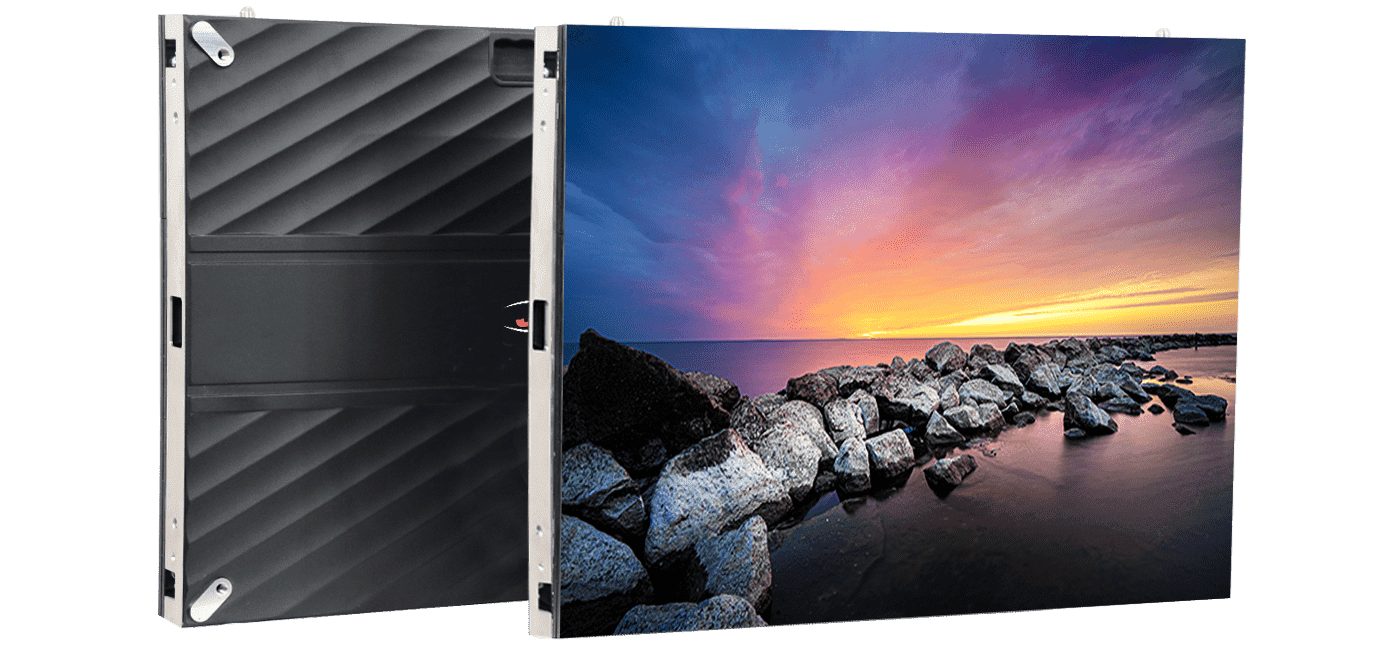

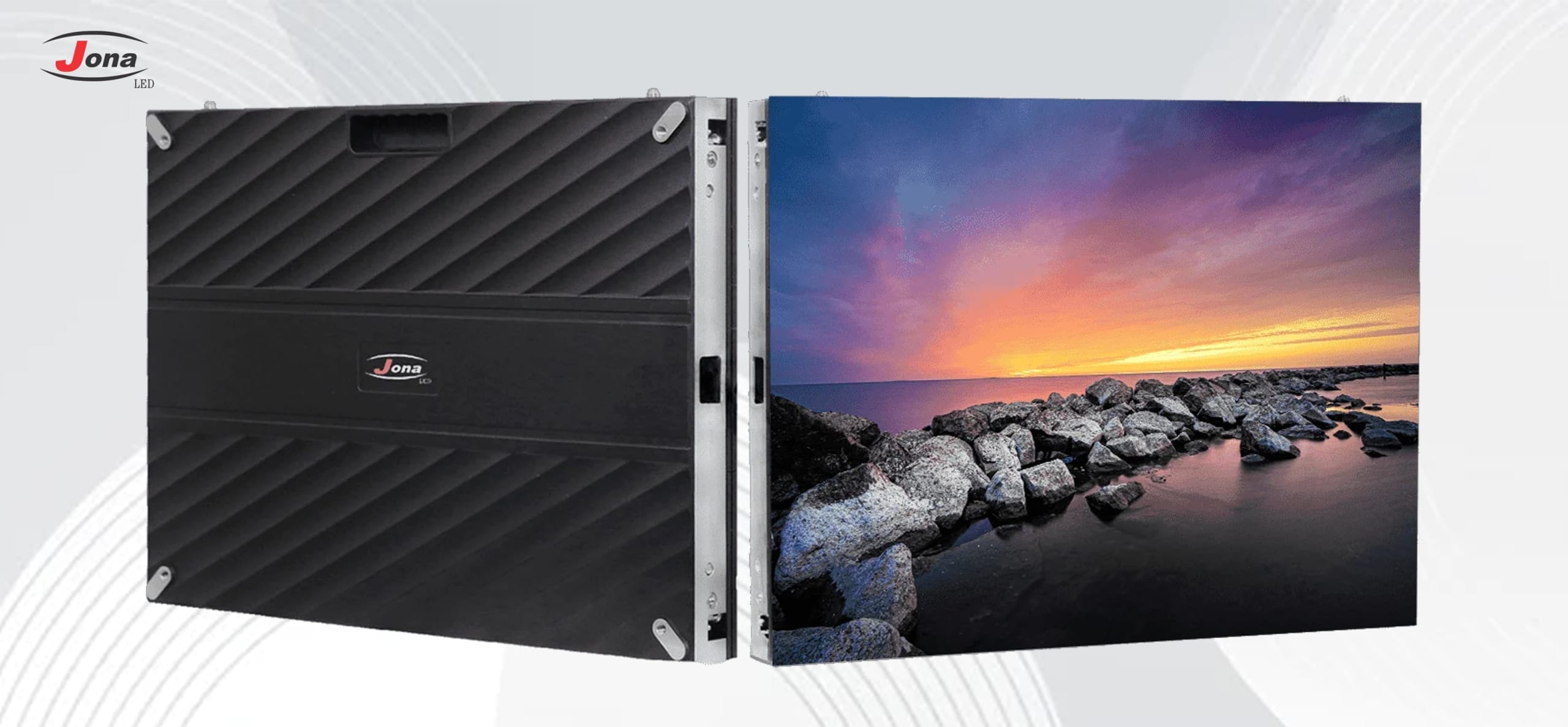

Jona led’s die-cast aluminum 640*480mm LED screen is flat and seamless, designed with a 4:3 ratio.

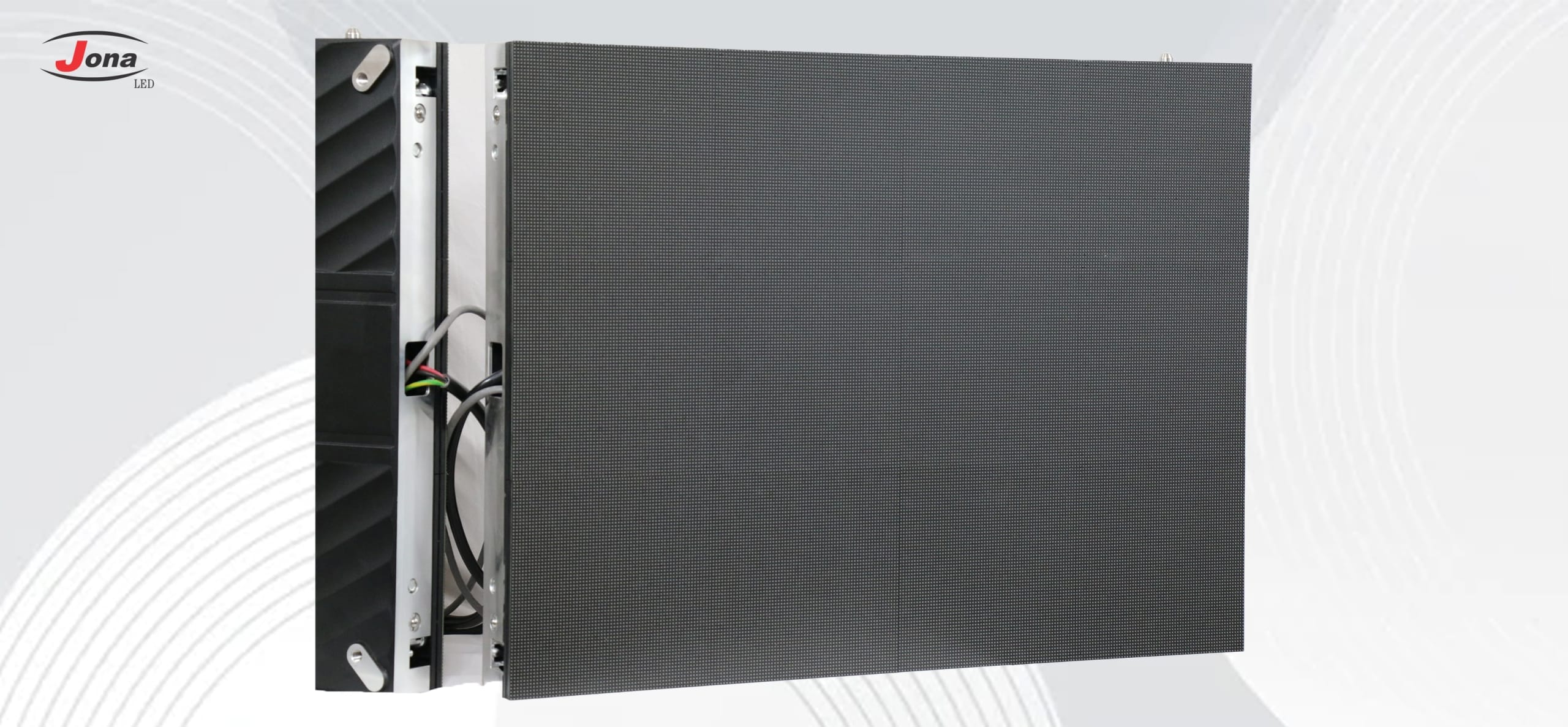

It is more effective to maintain an LED Screen from both- front and back, including the receiving card, power supply, and module.
The N Plus LED screens come with data and power systems which minimize the possibility of complete failure and screen blackout.
A pure image with excellent gradation can be greatly enjoyed visually due to color consistency and dot-to-dot correction technology.
Your LED display ought to appear picture-perfect at all times. You can effortlessly create a seamless canvas with the Jona Led screens
Jona Led has developed components like power-saving ICs & lamps, unique PCBs, and efficient power supplies that guarantee lower power consumption than average
Greater stability and a smooth transition between display and video images are what we guarantee
